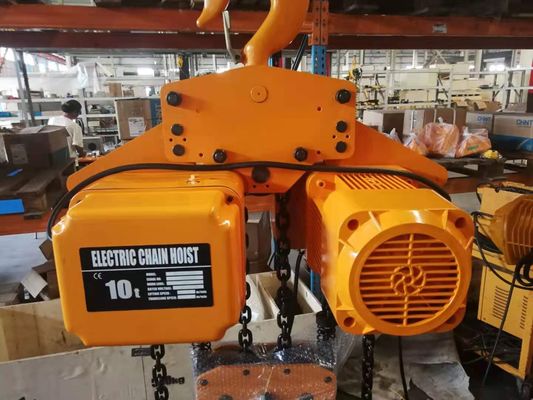

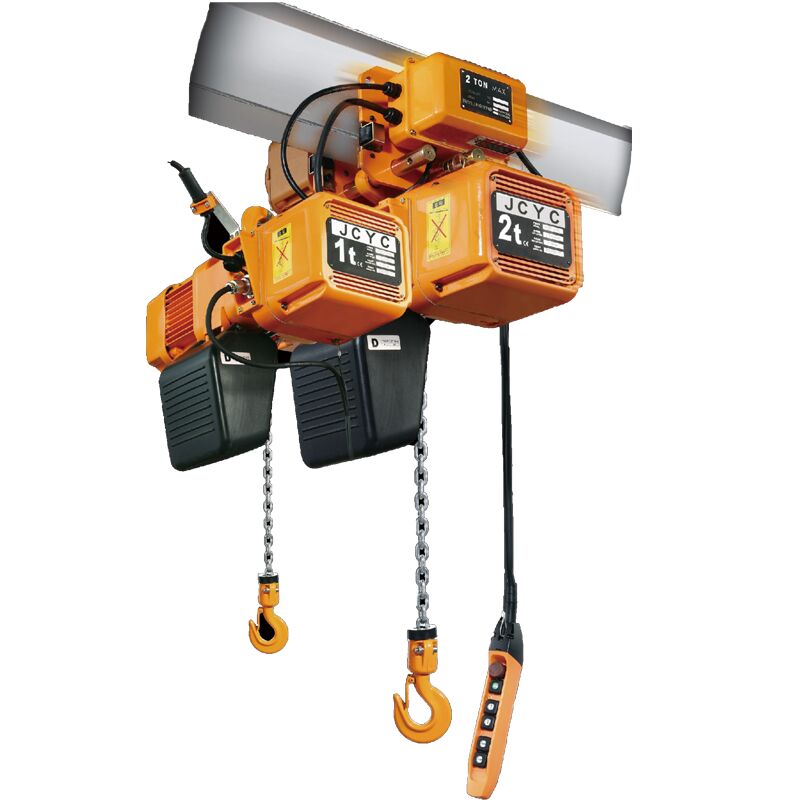

M5 Work Level Electric Chain Hoist With Dual Lifting Speed

MOQ: 1 PCS
Price: Negotiable
Standard Packaging: Plywood case
Delivery Period: 3 working days
Payment Method: T/T
Supply Capacity: 500 pcs / week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JCYC
Certification
ISO CE
Model Number
ER
Product:
ER Electric Chain Hoist
Lifting Speed:
Dual Speed 3.5/7 M/min
Voltage:
220 V - 440 V
Color:
Orange
Motor Power:
1.5-3.6 KW
Work Duty:
M5, M4
Highlight:

mini chain hoist

,

stainless steel chain hoist

Product Description
M5 Work Level Electric Chain Hoist With Dual Lifting Speed
Product Features
High Duty Rating - M5 Grade

Designed to operate reliably under harsh environments and demanding working conditions, meeting high-level M5 duty rating performance requirements.

Robust & Fully Sealed Housing
  • Lightweight yet extremely durable
  • Excellent heat dissipation
  • Fully enclosed design suitable for dusty, humid, or harsh industrial sites
Phase Reversal Protection

Equipped with a special protection device that stops the 22V control circuit from operating when the power supply phase is connected incorrectly—ensuring safe operation.

Upper & Lower Limit Switches

Built-in limit switches automatically stop lifting or lowering at the end positions, effectively preventing accidents caused by over-travel.

24V/36V Low-Voltage Control

Low-voltage control system protects the operator from electric shock risks in case of leakage from the control switch.

Reliable Brake System

The electromagnetic brake provides instant braking when power is cut off, ensuring load stability and operator safety.

Durable Chain Bag

Lightweight, attractive, and highly wear-resistant, designed to store the load chain safely during lifting.

High-Strength FEC80 Alloy Steel Chain

Made from imported FEC80 alloy steel, featuring precision heat treatment for exceptional strength, durability, and long service life—even under heavy-duty operation.

Power supply 3-phases 380V/50Hz Operating method Pendant control
Operating voltage 36V
Rated value Single speed:60%ED(60 minutes) Supply power method Cable supply power
Double speed:40/20%ED(30/10 minutes) Color YELLOW
Motor insulation level Level F Suitable specification GB standard
Level M5,M4 Environment temperature -20°℃~+40℃
Protection level IP55,button controller IP65 Environment humidity Under 85%RH
Technical Parameters
Type Capacity Lifting
Height
(m)		 Lifting dual speed(m/min) Lifting motor Traveling motor Job level Hoist package size Chain Net weight(kg)
high speed Low speed Power Rotation Phases Voltage Frequency Power Rotation Operating speed Hoist Trolley
ER01-01Y 1t 4 7 2.3 1.5 1440 3 380 50 0.4 1440 11/21 M5 68*34*40 7.1mm 47 38
ER02-01Y 2t 4 7 2.3 3 1440 3 380 50 0.4 1440 11/21 M5 76*40*48 10mm 91 44
ER02-02Y 2t 4 3.5 1.2 1.5 1440 3 380 50 0.4 1440 11/21 M5 68*34*40 7.1mm 54 44
ER03-01Y 3t 4 7 2.3 3.6 1440 3 380 50 0.75 1440 11/21 M5 76*40*48 11.2mm 104 55
ER03-02Y 3t 4 3.5 1.2 3 1440 3 380 50 0.75 1440 11/21 M5 76*40*48 10mm 108 55
ER05-02Y 5t 4 3.5 1.2 3.6 1440 3 380 50 0.75 1440 11/21 M5 76*40*48 11.2mm 132 77
ER075-03Y 7.5t 4 2.3 0.8 3.6 1440 3 380 50 0.75 1440 11/21 M5 76*40*48 11.2mm 175 77
Factory Show
M5 Work Level Electric Chain Hoist With Dual Lifting Speed 0

M5 Work Level Electric Chain Hoist With Dual Lifting Speed 1

Exhibition

M5 Work Level Electric Chain Hoist With Dual Lifting Speed 2M5 Work Level Electric Chain Hoist With Dual Lifting Speed 3
