10Ton double Girder Electric Wire Rope Hoist with European Design

Products

10Ton double Girder Electric Wire Rope Hoist with European Design

MOQ:	1pc
Price:	Negotiable
Standard Packaging:	Carton
Delivery Period:	15 working days
Payment Method:	L/C,T/T,Western Union
Supply Capacity:	50 pcs/week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC

Certification

Model Number

ECO

Product:

10Ton Double Girder Electric Wire Rope Hoist

Lifting Height:

Warranty:

1 Year

Power Source:

Electric

Sling Type:

Wire Rope

Lift Speed:

0-8M/MIN

Maximum Lifting Weight:

20t

Highlight:

horizontal lifting clamp

steel lifting clamps

Product Description

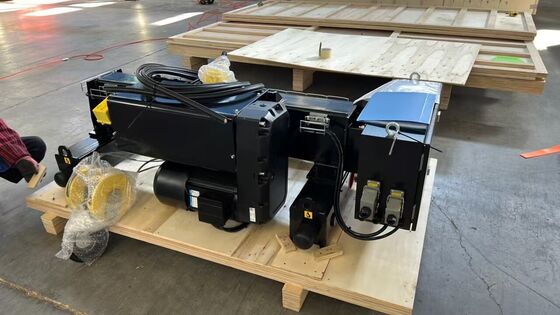

10-Ton Double Girder Electric Wire Rope Hoist with European Design

The European-type electric hoist represents a new-generation lifting solution engineered for industrial applications. Featuring imported lifting motors and gear reducers, this hoist integrates a compact design that combines the lifting motor, reducer, drum, and lifting limit switch into a unified system, significantly optimizing installation space requirements.

Advanced modular construction enhances mechanism reliability while effectively reducing maintenance time and operational costs. The hoist delivers higher lifting speeds with multiple reeving configurations to accommodate diverse application needs. The standard trolley traveling mechanism incorporates variable frequency drive (VFD) control, achieving speeds up to 20 m/min for smooth operation with minimal load sway and precise positioning—making it ideal for handling precision equipment and high-value loads.

Key Product Features

Modular Design - Compact Structure and Lightweight: The ECO hoist's modular architecture creates a more compact footprint and reduced weight compared to conventional lifting equipment, complemented by a distinctive green housing for modern aesthetics.
Low Noise Operation - Enhanced Working Environment: Operating at 65-75 dB (depending on power rating), the ECO hoist generates substantially less noise than traditional models, minimizing workplace disruption.
Safe and Reliable Performance - Ensuring Work Quality: With IP55 protection rating for superior dust and water resistance, F-class insulation for electrical safety, and duty cycle up to 40%, this hoist maintains stable performance in demanding conditions.

Cost-Effective Upgrade Solution: The ECO hoist combines advanced technology with high-quality materials to deliver robust load capacity and operational stability. Its plug-and-play design enables direct replacement of traditional CD/MD hoists without structural modifications, substantially reducing retrofit expenses.

Technical Specifications

Capacity (kg)	FEM	ISO	Height (m)	Lifting Speed (m/min)	Trolley Speed (m/min)	Lifting Motor (kw)	Trolley Motor (kw)
3200	2m	M5	6/9/12	0-5	0-20	3.2	0.4
3200	2m	M5	6/9/12	0-8	0-20	4.5	0.4
5000	2m	M4	6/9/12/18	0-5	0-20	4.9	0.4
5000	2m	M4	6/9/12/18	0-8	0-20	7.5	0.4
10000	2m	M5	6/9/12/18	0-5	0-20	9	0.4*2
16000	2m	M5	6/9/12/18	0-3.5	0-20	13.5	0.8*2
20000	1Am	M4	6/9/12/18	0-3.5	0-20	13.5	0.8*2

Technical Documentation

Manufacturing Excellence

Industry Presence

Tags:

Products

MOQ:	1pc
Price:	Negotiable
Standard Packaging:	Carton
Delivery Period:	15 working days
Payment Method:	L/C,T/T,Western Union
Supply Capacity:	50 pcs/week

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

JCYC

Certification

Model Number

ECO

Product:

10Ton Double Girder Electric Wire Rope Hoist

Lifting Height:

Warranty:

1 Year

Power Source:

Electric

Sling Type:

Wire Rope

Lift Speed:

0-8M/MIN

Maximum Lifting Weight:

20t

Minimum Order Quantity:

1pc

Price:

Negotiable

Packaging Details:

Carton

Delivery Time:

15 working days

Payment Terms:

L/C,T/T,Western Union

Supply Ability:

50 pcs/week

Highlight

horizontal lifting clamp

steel lifting clamps

Product Description

10-Ton Double Girder Electric Wire Rope Hoist with European Design

Key Product Features

Modular Design - Compact Structure and Lightweight: The ECO hoist's modular architecture creates a more compact footprint and reduced weight compared to conventional lifting equipment, complemented by a distinctive green housing for modern aesthetics.
Low Noise Operation - Enhanced Working Environment: Operating at 65-75 dB (depending on power rating), the ECO hoist generates substantially less noise than traditional models, minimizing workplace disruption.
Safe and Reliable Performance - Ensuring Work Quality: With IP55 protection rating for superior dust and water resistance, F-class insulation for electrical safety, and duty cycle up to 40%, this hoist maintains stable performance in demanding conditions.

Technical Specifications

Capacity (kg)	FEM	ISO	Height (m)	Lifting Speed (m/min)	Trolley Speed (m/min)	Lifting Motor (kw)	Trolley Motor (kw)
3200	2m	M5	6/9/12	0-5	0-20	3.2	0.4
3200	2m	M5	6/9/12	0-8	0-20	4.5	0.4
5000	2m	M4	6/9/12/18	0-5	0-20	4.9	0.4
5000	2m	M4	6/9/12/18	0-8	0-20	7.5	0.4
10000	2m	M5	6/9/12/18	0-5	0-20	9	0.4*2
16000	2m	M5	6/9/12/18	0-3.5	0-20	13.5	0.8*2
20000	1Am	M4	6/9/12/18	0-3.5	0-20	13.5	0.8*2
