10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane

Large Image : 10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE & ISO9001
Model Number:	JCYC-KEC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	650 usd

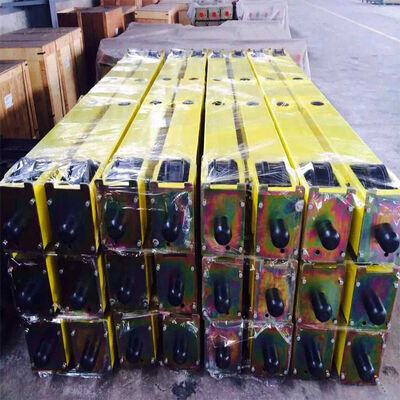

Packaging Details:	Plywood case
Delivery Time:	15 to 20 working days
Payment Terms:	T/T
Supply Ability:	200 to 300 sets per month

Contact Now

Detailed Product Description

Product Name:	Single Girder End Carriage	Capacity:	1ton-20ton
Span:	3-30m	Use:	For Overhead Crane
Traveling Speed:	20m/min	Working Temperature:	-25℃ – 50℃
Highlight:	crane wheel , crane wheel blocks

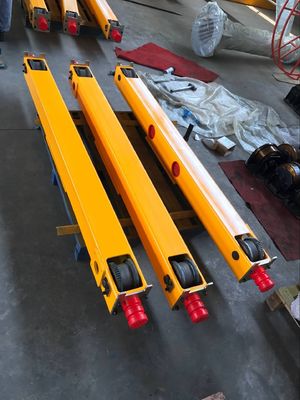

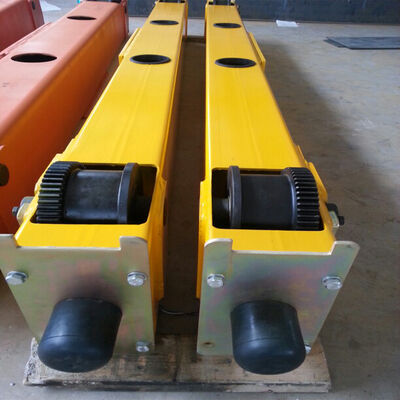

10 Ton Span 20M Single Girder End Carriage With Motor For Overhead Crane

Complete single girder end carriage assembly with integrated motor system designed for overhead crane applications.

Selection Guide

Capacity-Based Wheel Selection

Below 3 tons: LD150 wheels or LD200 wheels
3–10 tons: LD300 wheels

Runway Type Wheel Selection

I-beams (14#, 16#, 18#, 20#): LD150 wheels with wheel groove width 110/130 mm
Rail steel (12#, 15#, 18#): LD200 wheels with wheel groove width 60 mm

Example: 5-Ton Crane with 6m Lifting Height

For capacities above 3 tons, LD300 wheels are recommended.

End Carriage Set Components

2 × end carriages
4 × wheels
2 × motors
2 × gearboxes
4 × buffer blocks

End Carriage Length Selection

Span ≤ 5 m: 1.2 m end carriage
Span 5–7.5 m: 1.5 m end carriage
Span 7.5–12 m: 2.0 m end carriage

Key Features & Advantages

High-quality materials: Premium steel construction for strong structure and long service life
High-performance bearings: Smooth operation with low noise and reduced wear
Quality assurance: Box-type steel plate beam design, resistant to deformation
Carburized gears: Large starting torque, stable and smooth running speed
Copper-winding motor: Smooth start-up, strong power output, long service life
Customizable: End carriage solutions tailored to customer requirements

Technical Specifications

Model	Crane	Rectangular	Wheel Size	Motor power	S1 (mm)	S2 (mm)	W1 (mm)	W2 (mm)
GL125-15	1t-7.5m	1501506	W125*60	0.3KW*2	1500	1300	400	500
GL125-20	1t-11.5m	1501506	W125*60	0.3KW*2	2000	1800	400	500
GL125-25	1t-16.5m	1501506	W125*60	0.3KW*2	2500	2300	400	500
GL160-15	2t/3t-7.5m	1502008	W160*70	0.4KW*2	1500	1200	400	500
GL160-20	2t/3t-11.5m	1502008	W160*70	0.4KW*2	2000	1700	400	500
GL160-25	2t/3t-16.5m	1502008	W160*70	0.4KW*2	2500	2200	400	500
GL160-30	2t/3t-22.5m	1502008	W160*70	0.4KW*2	3000	2700	500	600
GL160-35	2t/3t-28.5m	1502008	W160*70	0.4KW*2	3500	3200	600	700
GL200-20	5t-11.5m	1502508	W200*70	0.4KW*2	2000	1700	400	500
GL200-25	5t-16.5m	1502508	W200*70	0.4KW*2	2500	2200	400	500
GL200-30	5t-22.5m	1502508	W200*70	0.75KW*2	3000	2700	500	600
GL200-35	5t-28.5m	1502508	W200*70	0.75KW*2	3500	3200	600	700
GL250-20	10t-11.5m	2002508	W250*80	0.75KW*2	2000	1600	400	500
GL250-25A	10t-16.5m	2002508	W250*80	0.75KW*2	2500	2100	500	600
GL250-30A	10t-22.5m	2002508	W250*80	1.1KW*2	3000	2600	500	600
GL250-35A	10t-28.5m	2002508	W250*80	1.1KW*2	3500	3100	700	800
GL250-25B	16t-16.5m	2003008	W250*80	1.1KW*2	2500	2100	600	700
GL250-30B	16t-22.5m	2003008	W250*80	1.1KW*2	3000	2600	700	800
GL250-35B	16t-28.5m	2003008	W250*80	1.5KW*2	3500	3100	700	800
GL315-30	20t-16.5m	2004008	W315*90	1.5KW*2	3000	2500	700	800
GL315-35	20t-22.5m	2004008	W315*90	1.5KW*2	3500	3000	700	800
