| Product: | Hook Type Electric Chain Hoist | Max.Capacity: | 5000 Kg |
|---|---|---|---|
| Min Capacity: | 500 Kg | Voltage: | 220 V 380 V 415 V |
| Control Voltage: | 24 V 36 V 48v | Color: | As Per Request |
| High Light: | mini chain hoist,stainless steel chain hoist |
||

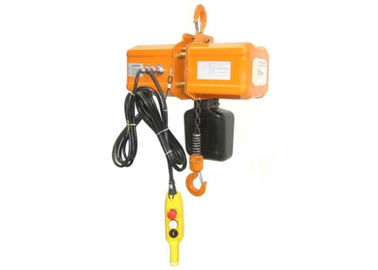

Hook Type Electric Chain Hoist 500kg 1 ton 2 ton 3 ton 5 ton
| Model | Lifting Capacity(t) | Lifting Height(m) | Ruunning Test Load(kn) | Lifting Speed(m/min) | Motor Power(kw) | No.of Chain | Dia. of Chain(mm) | Power Supply |
| SY-C05 | 0.5 | 3 | 6.25 | 7 | 0.8 | 1 | 7.1 | 380V 50HZ 3Phase (Single Speed) |
| SY-C10 | 1 | 3 | 12.5 | 7 | 1.6 | 1 | 7.1 | |
| SY-C20 | 2 | 3 | 25 | 3.5 | 1.6 | 2 | 7.1 | |
| SY-C30 | 3 | 3 | 37.5 | 2.3 | 1.6 | 3 | 7.1 | |
| SY-C30S | 3 | 3 | 37.5 | 4 | 3 | 2 | 9 | |
| SY-C50 | 5 | 3 | 62.5 | 2.6 | 3 | 3 | 9 | |
| Model | Lifting Capacity(t) | Lifting Height(m) | Ruunning Test Load(kn) | Lifting Speed(m/min) | Motor Power(kw) | No.of Chain | Dia. of Chain(mm) | Power Supply |
| SY-C05 | 0.5 | 3 | 6.25 | 2.3/7 | 0.4/1.2 | 1 | 7.1 | 380V 50HZ 3Phase (Double Speed) |
| SY-C10 | 1 | 3 | 12.5 | 2/6 | 0.4/1.2 | 1 | 7.1 | |
| SY-C20 | 2 | 3 | 25 | 1/3 | 0.4/1.2 | 2 | 7.1 | |
| SY-C30 | 3 | 3 | 37.5 | 0.7/2 | 0.4/1.2 | 3 | 7.1 | |
| Model | Lifting Capacity(t) | Lifting Height(m) | Ruunning Test Load(kn) | Lifting Speed(m/min) | Motor Power(kw) | No.of Chain | Dia. of Chain(mm) | Power Supply |
| SY-C05 | 0.5 | 3 | 6.25 | 7 | 0.8 | 1 | 7.1 | 240V 50HZ 1Phase (Single Speed) |
| SY-C10 | 1 | 3 | 12.5 | 6 | 1.2 | 1 | 7.1 | |
| SY-C20 | 2 | 3 | 25 | 3 | 1.2 | 2 | 7.1 | |
| SY-C30 | 3 | 3 | 37.5 | 2 | 1.2 | 3 | 7.1 |
