Electric Wire Rope Double Girder Hoist For Lifting Goods To 50T

China Electric Wire Rope Double Girder Hoist For Lifting Goods To 50T supplier

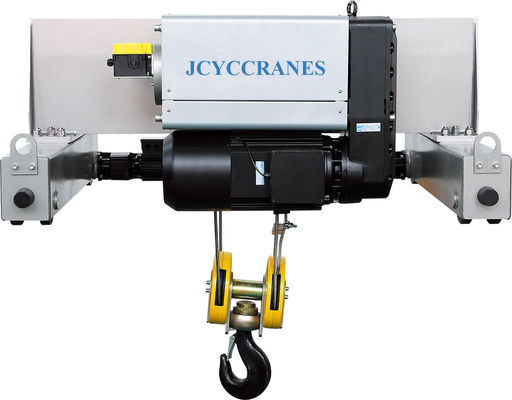

Large Image :  Electric Wire Rope Double Girder Hoist For Lifting Goods To 50T

Product Details:

Place of Origin: China
Brand Name: JCYC
Certification: CE&ISO
Model Number: SHSL-B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD negotiate per unit
Packaging Details: Plywood case
Delivery Time: 10 -15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Capcity: 3.2t-50t Lifting Height: 6m-18m
Voltage: 220v-440v,50HZ/60HZ Usage: Lifting Goods
Material: Steel Color: Customized



SHSL-B DOUBLE GIRDER ELECTRIC WIRE ROPE HOIST
SHSL-B Model, Double Girder Electric Wire Rope Hoist
Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

Product Details:
SHSL-B Double Girder Electric Wire Rope Hoist

Features and advantages:
1. High performance hoist delivers exceptional reliability in even the most demanding applications.
2. Protect loads and production machinery from unnecessary contact and damage.
3. Specified by the military because all critical welds are magnetic particle inspected.
4. Top-quality components and design features provide operator peace-of-mind.
5. With newest designing like quadrate outline, modularized construction and good unitized capacity.


Capacity
(t)

Lifting Height
(m)

Lifting Speed
(m/min)

Lifting Motor
(kw)

Travelling Speed
(m/min)

TravellingMotor
(kw)

LiftingSystem
(FEM/ISO)

TravellingSystem
(FEM/ISO)

Trolley RailGauge
(mm)

3.26/9/12/15/185/0.83.2/0.425/200.25*22MM52MM51000-1700
56/9/12/15/185/0.86.1/15/200.37*22MM52MM51000-1700
6.36/9/12/15/185/0.86.1/15/200.37*22MM52MM51000-1700
86/9/12/15/185/0.89.5/1.55/200.37*22MM52MM51000-2000
106/9/12/15/185/0.89.5/1.55/200.37*22MM52MM51000-2000
12.56/9/12/15/185/0.812.5/25/200.55*21AMM42MM51000-2000
166/9/12/15/184/0.616/2.65/200.55*22MM52MM51400-2400
206/9/12/15/184/0.616/2.65/200.55*21AMM42MM51400-2400
256/9/12/15/183.3/0.820/55/200.75*23MM62MM51700-3100
326/9/12/15/183.3/0.820/55/201.1*22MM52MM51700-3100
406/9/12/15/180-4385/201.5*21AMM42MM51700-3100
506/9/12/15/180-3385/201.5*22MM52MM51700-3100
506/9/12/15/180-3385/201.5*22MM52MM52000-4200
