Product Details:
Payment & Shipping Terms:
|
| Product Name: | 25T Mining Winch Lifter Electric Chain Hoist With Electric Trolley | Application: | Mining Area, Warehouse, Building, Wharf, Ect. |
|---|---|---|---|
| Capacity: | 0.5t-35t | Type: | Electric |
| Color: | Alternative | Condition: | New |
| Chain: | G80 | ||
| High Light: | 25T Electric Chain Hoist,G80 Electric Chain Hoist |
||

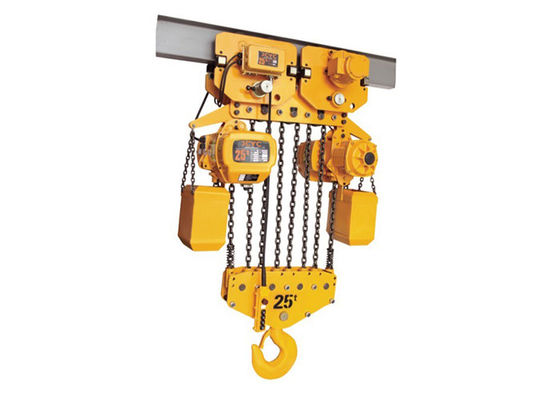

25T Mining Winch Lifter Electric Chain Hoist With Electric Trolley
Usage:
Lifting, fixing, binding, traction, etc. Well accepted in mining, construction etc. various industrial fields.
Features and advantages:
1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
Product technical data:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | ||
| Power(kw) | R.P.M(r/min) | Power(kw) | R.P.M(r/min) | |||||
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 1440 | 0.12 | 1440 |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 1440 | 0.4 | 1440 |
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 1440 | 0.4 | 1440 |
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 1440 | 0.4 | 1440 |
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 1440 | 0.4 | 1440 |
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 1440 | 0.4 | 1440 |
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 1440 | 0.4 | 1440 |
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 1440 | 0.4 | 1440 |
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 1440 | 0.75 | 1440 |
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 1440 | 0.75 | 1440 |
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 1440 | 0.75 | 1440 |
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 |
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 |
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 |
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 |
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 |
Detailed technologies:
It is made of light aluminum alloy shell, light but hard. The cooling fin is especially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to places like chemical plant and electroplate factory.
The chain shall adopt the imported FEC G80 ultra heat-treatable aluminum alloy chain. It can be safety used in power environments such as rain, sea water and chemicals.
It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety flap.
Chint brand, China famous brand, Schneider brand,orignal from France Inverse phase sequence protecting device.
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
Yueqing Brand the best in china. Master Controller with waterproof Push Button for UP, DOWN, Forward, Reverse, start& Emergency Stop. It is light and durable.
Telecrane Brand the best in china. Master Controller with waterproof Push Button for UP, DOWN, Forward, Reverse, start& Emergency Stop. It is light and durable.
