| Name: | Mining Winch Pulling Monorail Electric Wire Rope Construction Hoist | Capacity: | 0.25-32Ton |
|---|---|---|---|
| Lifting Speed: | 8(0.8)m/min | Girder: | Single Girder |
| Rail Type: | I-Type, H-Type Rail | Travel Speed: | 20/30 M/min |
| High Light: | Monorail Wire Rope Crane Hoist,Winch Pulling Wire Rope Crane Hoist,Wire Rope Crane Hoist 32T |
||

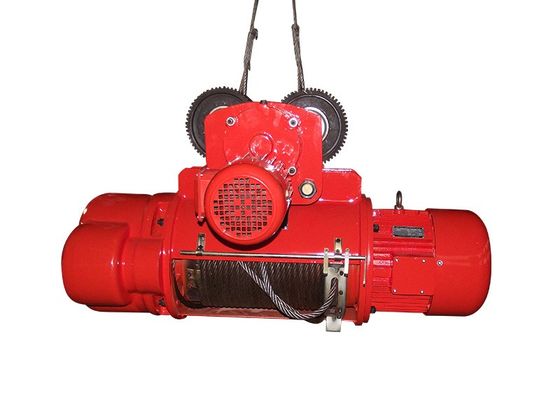

Mining Winch Pulling Monorail Wire Rope Crane Hoist 32T 10T 5T
CD,MD Electric Wire rope Hoist is a small-sized lifting equipment,which can be mounted on single
beam bridge crane and single beam gantry crane and jib crane.With Light weight, small size, compact
structure, stable operation, etc. ,It can also beused as a winch. It is widely used in factories,mines,harbours,
warehouses,cargo storage areas andshops,essentialin raising working efficiency and improving working
condations.
Applications
1,extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
2,installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3,It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
4,It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.
Electric Hoist Overall
Compact, light weight, safe and reliable.
Components and parts apply used universally,strong compatibility.
High lifting capacity , easy maintenance.
Easy operation, accurate lifting steady operation.
Electric Hoist Lifting Motor
To use higher starting torque tapered rotor braking asynchronous motor. No need plus brake again,
Motor load keeping rate is 25%, Safe and reliable. Class B or Class F insulation,Motor protection grade IP44 / IP54.
Electric Hoist Hoisting Speed Reducer
it adopts 3-GRADE fixed axle inclined gears structure,long life.
The gears and gear shaft made by the alloy steel of heating treatment, high strength
Box, box cover made by high quality cast iron, Assembly rigor, good seal
The gear reducer become to be a single part, loading and unloading is extremely convenient
Reliable drive, high mechanical efficiency.
Electric Hoist Protection Function
It has the device up and down proceeding to protect the fire cutting limiting stopper.
To ensure the safe operation of the electric hoist, the electrical components have long life, use reliable
It also has device to prevente clashing the top.
Electric Hoist Wire Rope
To adopt GB / T 20118-2006 (6 * 37 + 1) lifting wire rope, to ensure durable using.
Electric Hoist Operation Device
Flexible operation, it has manipulation corded and wireless remote control two ways.
Technical datasheet
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty | Lifting Motor | ||
| Power(kw) | R.P.M ( r/min) | Power Supply | |||||||||
| CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3Phase |
| CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | |
| CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | |
| CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | |
| CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | |
| CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | |
| CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | |
| CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | |
| CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | |
Notes
A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters.
