Product Details:
Payment & Shipping Terms:
|
| Name: | 6.3 Ton 9 Meters High Quality European Type Electric Wire Rope Hoist With IP55 Motor | Capacity: | 1t To 80t |
|---|---|---|---|
| Standard Lifting Height: | 6/9/12/18M Or At Request | Lifting Speed: | Double Speed, Frequency Controlled Speed |
| Working Duty: | M5 | Function: | Construction Lifting |
| High Light: | 9M Electric Wire Rope Hoist,6.3 Ton Electric Wire Rope Hoist,M5 Electric Wire Rope Hoist |
||
6.3 Ton 9 Meters High Quality European Type Electric Wire Rope Hoist with IP55 Motor
Product Introduction
European Type Electric Wire Rope Hoist
It is latest designed internation standard product by combining and applying the advanced German technologies. It has compact structure and its frame is in rectangular shape. Its drum is made of seamless steel pipe. Its planetary gearbox, which is in the hoisting drum, electromotor and electric control box is in beeline collocation. The hoist has overload protection, overheating protection and phase relay protection devices. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.
Application
It is widely used for overhead crane, gantry crane etc. heavy duty industry, light duty industry especially highly resticted environment plants. Especially for the places with high environmental requirements.
Features
* Trolley with frequency conversion motor
* Double speed/frequency conversion lifting motor
* Motor protection grade IP55, Insulation grade F
*Electromagnetic disc brake, maintenance-free
* Control volatege 24v/26v/48v/110v
* Schneider contactor & Inverter
* 380V/415V/440V/460V/3PH/50/60HZ
*Lifting limit switch
*Hook, with safety latch
* Overload limiter
*Ambient temperature: -20ºC~+40ºC
*Motor over temperature protection
Technical Parameters
| Capacity ton | Lifting height m | Lifting speed m/min | Lifting motor kw | Traveling speed m/min | Traveling motor kw | Lifting System FEM/ISO | Traveling System FEM/ISO |
I-Beam Width mm | ||
| 2t | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 150-300 |
| 3.2t | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 150-300 |
| 5t | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 200-350 |
| 6.3t | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1Am | M4 | 2M | M5 | 200-350 |
| 8t | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 3M | M6 | 2M | M5 | 200-410 |
| 10t | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 12.5t | 6/9/12/15/18 | 4/0.6 | 12.5/2 | 5/20 | 0.75 | 1Am | M4 | 2M | M5 | 200-410 |
| 16t | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 2M | M5 | 2M | M5 | 300-450 |
| 20t | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 1Am | M4 | 2M | M5 | 300-450 |
| 8t | 20/24/28/32/36 | 8/1.3 | 12.5/2 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 10t | 20/24/28/32/36 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 12.5t | 20/24/28/32/36 | 6.3/1 | 16/2.6 | 5/20 | 0.75 | 1Am | M4 | 2M | M5 | 200-410 |
Questions before quotation
1. Capacity? Single girder or double girder?
2. Lifting height?
3. Speed requirement?
3. Voltage?
4. Quantity?
The more details the more accurate price quotation.

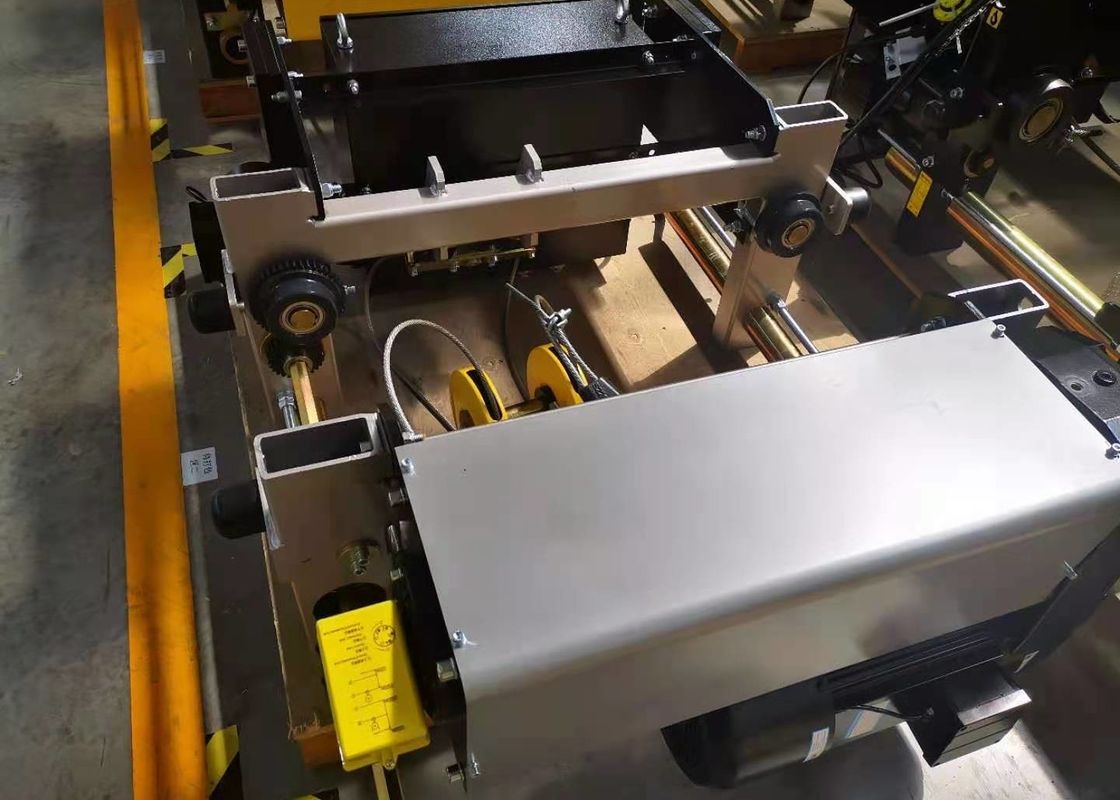

Product show
