| Product Name: | European Model Low Headroom Style Electric Wire Hoist | Style: | Low Headroom |
|---|---|---|---|
| Type: | Traveling | Capacity: | 2t ~ 12.5t |
| Lifting Height: | Standard Lifting Height Or As Request | Traveling Speed: | 5/20 M/min |
| Application: | Workshop | Color: | As Per Your Request |
| High Light: | Low Headroom Style Wire Rope Hoists,European Model Wire Rope Hoists,Workshop Application Wire Rope Hoists |
||

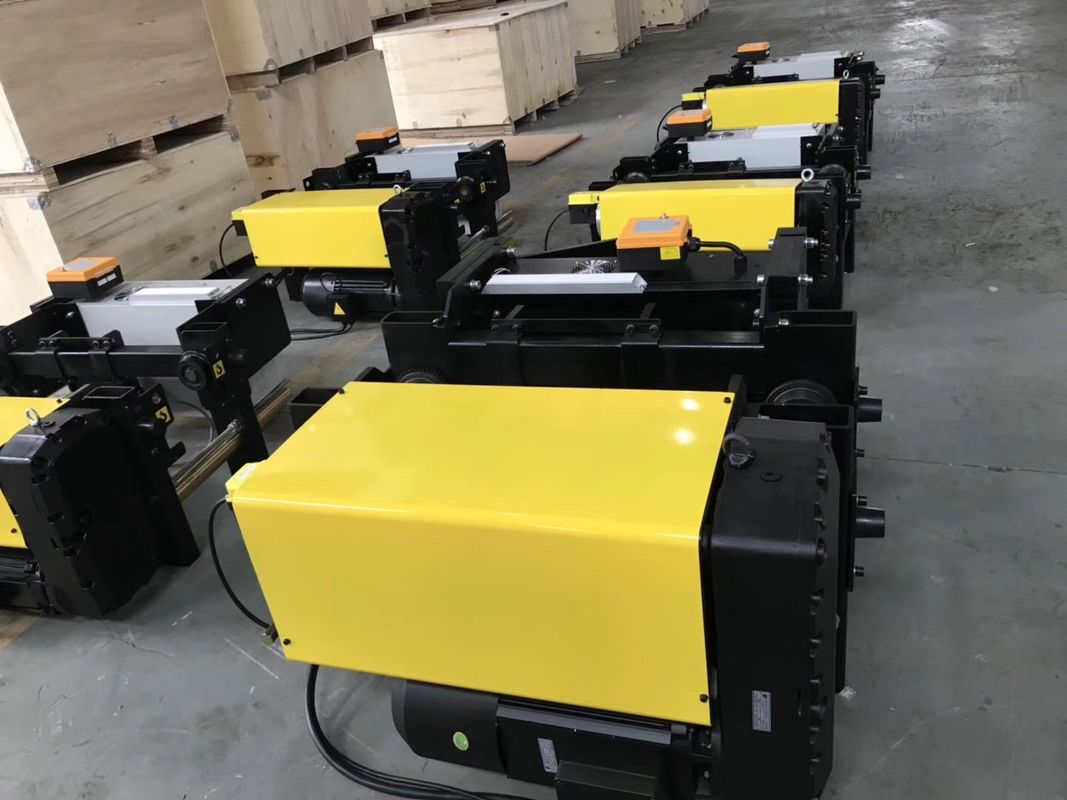

Workshop Application European Model Low Headroom Style Design Single Girder Electric Wire Hoist
Technique parameters
| Capacity ton | Lifting height m | Lifting speed m/min | Lifting motor kw | Traveling speed m/min | Traveling motor kw | Lifting System FEM/ISO | Traveling System FEM/ISO |
I-Beam Width mm | ||
| 2t | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 3M | M6 | 2M | M5 | 150-300 |
| 3.2t | 6/9/12/15/18 | 5/0.8 | 3.2/0.45 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 150-300 |
| 5t | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 2M | M5 | 2M | M5 | 200-350 |
| 6.3t | 6/9/12/15/18 | 5/0.8 | 6.1/1 | 5/20 | 0.37 | 1Am | M4 | 2M | M5 | 200-350 |
| 8t | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 3M | M6 | 2M | M5 | 200-410 |
| 10t | 6/9/12/15/18 | 5/0.8 | 9.5/1.5 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 12.5t | 6/9/12/15/18 | 4/0.6 | 12.5/2 | 5/20 | 0.75 | 1Am | M4 | 2M | M5 | 200-410 |
| 16t | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 2M | M5 | 2M | M5 | 300-450 |
| 20t | 6/9/12/15/18 | 4/0.6 | 16/2.6 | 5/20 | 0.75x2 | 1Am | M4 | 2M | M5 | 300-450 |
| 8t | 20/24/28/32/36 | 8/1.3 | 12.5/2 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 10t | 20/24/28/32/36 | 8/1.3 | 16/2.6 | 5/20 | 0.75 | 2M | M5 | 2M | M5 | 200-410 |
| 12.5t | 20/24/28/32/36 | 6.3/1 | 16/2.6 | 5/20 | 0.75 | 1Am | M4 | 2M | M5 | 200-410 |
Description
Compared with the traditional electric hoist, the structure of European hoist is more reasonable and the technology is more advanced. So this type of hoists is
more and more widely used and will be the development tendency. In order to stand
out in the group of electric wire rope hoist suppliers, we constantly improve the
technology to produce high level hoist to be aligned with the world.
Advantages
1. Low headroom design, compact, strong, long service life span, save your space.
2. Three-in-one lifting motor: AMB Germany original imported. Column rotor, low noise.
3. Limit Switch: Cam limit model operate safety.
4. With load limiter protection.
5. Remote control avaliable.
New advantages
1. Improved travelling motor: Lower noise, more effciency
2. Improved wire rope guider: Improved to engineering plastic material, lighter, less wear to wire rope.
