Product Details:
Payment & Shipping Terms:
|
| Feature: | Hand Push And Hand Lift Stacker | Function: | Hand Stacker |
|---|---|---|---|
| Name: | Manual Stacker | Material: | Excellent Steel |
| Capacity: | 1000kg-3000kg | Power: | Hand, Manual |
| High Light: | steel lifting clamps,horizontal lifting clamp |
||
Textile Industry 3000kg Lifting Tools / Steel Hand Lift Stacker
Usage:
Manual stacker is widely used in petroleum, chemical, pharmaceutical, textile industry, painting, coal and other industries, like production, processing and lifting, etc.
Features and advantages:
1. Hand stacker is hand push and hand lift stacker which provides cost effective handing for both vehicle loading and production areas.
2. Adjustable forks to coordinate with different requirements.
3. Ergonomic rubber handle ensures a comfortable and easy operation.
4. Effortless and quick lifting for using foot pedal without load.
5. Comfortable handle to ensure easy pulling with long tiller.
6. Ensures safe parking in any situation.

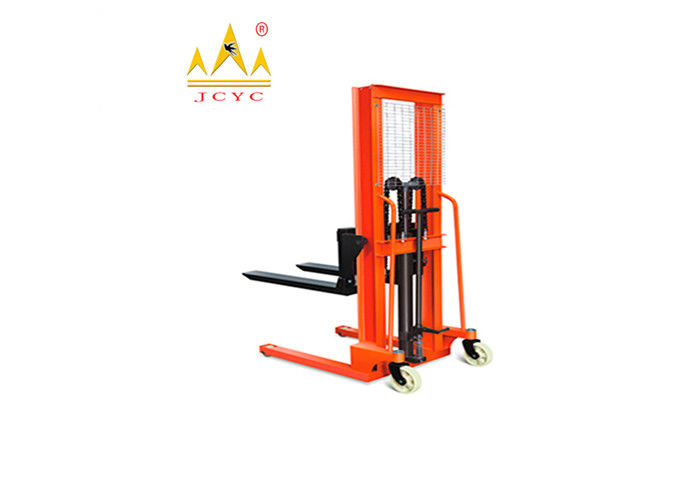

Photo:
Parameter:
|
Hand Stacker Model |
HST1.0 | HST2.0 | HST3.0 |
|
Rated Lifting Capacity (kg) |
1000 | 2000 | 3000 |
|
Max. Lifting Height (mm) |
1,600 | 1,600 | 1,600 |
| Lowest Height of Forks (mm) | 85 | 85 | 110 |
| Fork Length (mm) | 900 | 900 | 1,000 |
| Adjustable Width for Forks (mm) | 210-560 | 250-580 | 290-580 |
|
Lifting Speed (mm/s) |
20 | 14 | 10 |
|
Lowering Speed (mm/s) |
Controllable | ||
| Outer Width of Front Legs (mm) | 750 | 760 | 760 |
| Operation Power of Crank (kg) | 24 | 32 | 40 |
| Min. Refuel Volume for Fuel Tank (L) | 1.6 | 2 | 3 |
|
Front Wheel Size (mm) |
Φ85*50 | Φ85*50 | Φ100*50 |
|
Real Wheel Size (mm) |
Φ180*50 | Φ180*50 | Φ180*50 |
|
Overall Size (mm) |
1360*755*2040 | 1420*760*2050 | 1580*800*2070 |
| Truck Weight (kg) | 115 | 180 | 280 |
Warm Note:
OEM, ODM, sample, trial and mixed order are all welcomed to test our quality and service.
