Product Details:
Payment & Shipping Terms:
|
| Product Name: | 50 T Double Girder Hoist For Construction , Wire Rope Crane Hoist HC-D | Capacity: | 3.2t-50t |
|---|---|---|---|
| Color: | Yellow | Lifting System FEM/ISO: | M5 |
| Working Temperature: | -25 - 50 Degrees | Supply Power: | 220 - 600 V , 50 -60 Hz |
| High Light: | electric crane hoist,electric wire hoist |
||

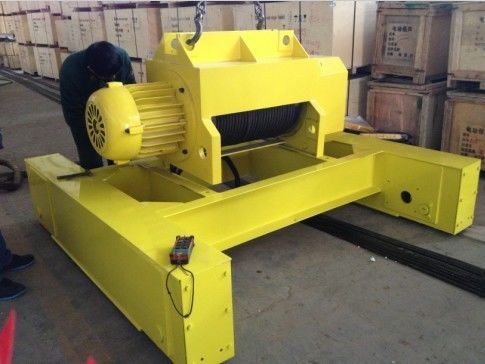

50 T Double Girder Hoist For Construction , Wire Rope Crane Hoist HC-D
Competitive Advantage
- Low noise, safe and reliable traveling.
- Convenient maintenance.
- Smooth starting and stopping.
- Single speed, double speed or variable speed if client request.
- Corrosion resistance and fatigue resistance
- Overload protection device.
Application
Type Double Girder Electric Wire Rope Hoist has compact design, light self – weight, and travelling trolley, it can be widely used in light duty industry, cement, hydro power industry, coal mining industry, modern material handling industry and military product manufacturing, etc.
Higher Security and Reliability
1. The optimal corrosion resistance under harsh environment.
2. Efficient high lifting speed, smooth low lifting speed, precise positioning.
3. Low-voltage protection ensures the safe and reliable operation.
4. Brake and overload protection ensure the safety under any circumstance.
5. The weight switch is as the second up limit to ensure safety.
6. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
7. Euro design, compact structure.
Product parameters
| Capacity ton | Lifting height m | Lifting speed m/min | Lifting motor kw | Lifting System FEM/ISO | |
| 3.2t | 6/9/12/15/18 | 5 | 3.2 | 2M | M5 |
| 5t | 6/9/12/15/18 | 5 | 6.1 | 2M | M5 |
| 6.3t | 6/9/12/15/18 | 5 | 6.1 | 2M | M5 |
| 8t | 6/9/12/15/18 | 5 | 9.5 | 2M | M5 |
| 10t | 6/9/12/15/18 | 5 | 9.5 | 2M | M5 |
| 12.5t | 6/9/12/15/18 | 5 | 12.5 | 1AM | M4 |
| 16t | 6/9/12/15/18 | 4 | 16 | 2M | M5 |
| 20t | 6/9/12/15/18 | 4 | 16 | 1Am | M4 |
| 20t | 6/9/12/15/18 | 4 | 16 | 1Am | M4 |
| 25t | 6/9/12/15/18 | 3.3 | 20 | 3M | M6 |
| 25t | 6/9/12/15/18 | 3.3 | 20 | 3M | M6 |
| 32t | 6/9/12/15/18 | 3.3 | 20 | 2M | M5 |
| 32t | 6/9/12/15/18 | 3.3 | 20 | 2M | M5 |
| 40t | 6/9/12/15/18 | 0-4 | 38 | 1Am | M4 |
| 40t | 6/9/12/15/18 | 0-4 | 38 | 1Am | M4 |
| 50t | 6/9/12/15/18 | 0-3 | 38 | 2M | M5 |
| 50t | 6/9/12/15/18 | 0-3 | 38 | 2M | M5 |
