Product Details:
Payment & Shipping Terms:
|
| Function: | Anti-Acids | Color: | White |
|---|---|---|---|
| Feature: | High-tensile | Load: | 0.5t-10t |
| Legal Standard: | JB/T8521-2007 | Tensile: | High |
| High Light: | horizontal lifting clamp,horizontal plate clamp |
||
Webbing Slings 4000kg - 40000kg Breaking Load High-tensile Anti-Acids and Alkali
1. Features and Advantages:
1.1. The ideal sling which has wide and smooth appearance also no damage to the loads
1.2. Suitable to paints plastics and pipes after anti-corrosion treatment as it is resistant to mineral acids and alkali.
1.3. Used to lifting goods in chemical industry special in electroplate
1.4. Safety loading: 0.5T-10T
1.5. Legal standard: JB/T8521-2007
2. Parameter:
| Max. SWL=Mode Coefficient P * Working Load Limit Max. SWL of Lifting Method | |||||||
| Model | Color | Min. Breaking Load(kg) | Working Load Limit(kg) | p=1(kg)Upright | p=0.8(kg)Chocked | p=1.8(kg)Angle 45℃ | p=1.4(kg)Angle 90℃ |
| SY-LS101-01 | White | 4,000 | 1,000 | 1,000 | 800 | 1,800 | 1,400 |
| SY-LS101-02 | 8,000 | 2,000 | 2,000 | 1,600 | 3,600 | 2,800 | |
| SY-LS101-03 | 12,000 | 3,000 | 3,000 | 2,400 | 5,400 | 4,200 | |
| SY-LS101-04 | 16,000 | 4,000 | 4,000 | 3,200 | 7,200 | 5,600 | |
| SY-LS101-05 | 20,000 | 5,000 | 5,000 | 4,000 | 9,000 | 7,000 | |
| SY-LS101-06 | 24,000 | 6,000 | 6,000 | 4,800 | 10,800 | 8,400 | |
| SY-LS101-08 | 32,000 | 8,000 | 8,000 | 6,400 | 14,400 | 11,200 | |
| SY-LS101-10 | 40,000 | 10,000 | 10,000 | 8,000 | 18,000 | 14,000 | |

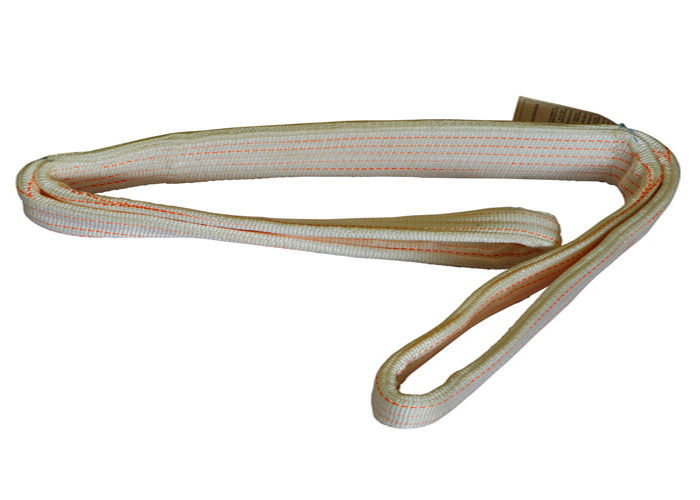

3. Product show:
