Product Details:
Payment & Shipping Terms:
|
| Material: | High-strength Steel | Product Name: | Lever Hoist, Lever Block |
|---|---|---|---|
| Color: | Red, Yellow Or Alternative | Max.Capacity: | 9 T |
| Min. Capacity: | 0.75 T | Handle: | Ribbed Lever Handle |
| High Light: | horizontal lifting clamp,horizontal plate clamp |
||

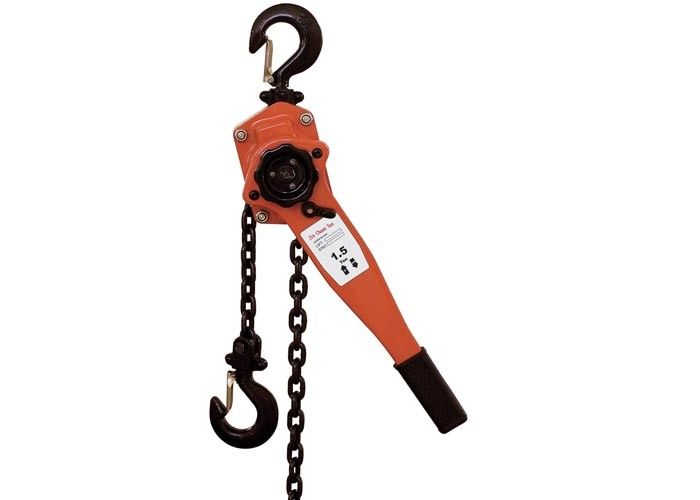

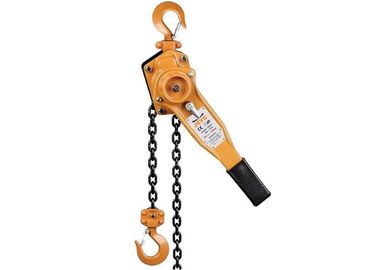

VA Lever Hoists, Lever Blocks
Standard Features:
Meets all pertinent world standards
All steel construction for external impact resistance
High-strength, cold-formed, stamped steel construction makes it lighter in weight and impact resistant for longer life
360° degree handle rotation with short stroke to ratchet loads
Durable baked enamel paint protection
Reliable non-asbestos disc brake
Improved Features:
Ribbed lever handle
Easy remove top hook
Minimal effort in a compact desgn
Chain guides provide smooth chain operation
Singel-hand free chaining is simple and convenient, allowing smooth, trouble-free operation in the vertical or horizontal position
Hardened steel rollers supporting the load sheaves run smoother and last longer than bearings
Every lever hoist is operationally tested to 150% of the rated capacity and is issued with an individual test certificate
Optional Fearthures:
Caged rollor bearings on load sprocket
Cr plated side plates
Galv. load chain
Overload protection systerm
| Model | Capacity(t) | Standard lift(m) | Running testload(kn) | Headroom(draw close up)hmin | Full load hand force N | Load chain dia.(mm) | N.W(Kg) | Packing(L*W*H)(mm) | Extra weight meter of extra lift(kg) |
| VA0.75T | 0.75 | 1.5 | 0.937 | 325 | 140 | 6 | 7 | 340*125*195 | 0.92 |
| VA1T | 1 | 1.5 | 1.25 | 325 | 140 | 6 | 7.5 | 340*125*195 | 0.92 |
| VA1.5T | 1.5 | 1.5 | 1.875 | 380 | 220 | 8 | 11 | 520*160*210 | 1.6 |
| VA2T | 2 | 1.5 | 2.5 | 380 | 220 | 8 | 12 | 520*160*210 | 1.6 |
| VA3T | 3 | 1.5 | 3.75 | 480 | 320 | 10 | 19 | 550*185*230 | 2.4 |
| VA6T | 6 | 1.5 | 7.5 | 480 | 320 | 10 | 21 | 550*185*230 | 2.4 |
| VA9T | 9 | 1.5 | 11.25 | 690 | 350 | 10 | 42 | 550*185*230 | 2.4 |
