JCYC Electric Wire Rope Winch Gear Reducer Driving 0.5T-80T 30 m/min Speed

JCYC Electric Wire Rope Winch Gear Reducer Driving 0.5T-80T 30 m/min Speed
JCYC Electric Wire Rope Winch Gear Reducer Driving 0.5T-80T 30 m/min Speed

Large Image :  JCYC Electric Wire Rope Winch Gear Reducer Driving 0.5T-80T 30 m/min Speed

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE ISO9001 Manufactring licence
Model Number: JM
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: negotiable
Packaging Details: Plywood Case
Delivery Time: 30 working day
Payment Terms: Western Union, L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Voltage: 220 V - 440 V / 50 Hz / 3 Ph Max Capacity: 0.5 Ton
Min Capacity: 30t Color: As Per Request
Product Name: JM Electric Winches Speed: 9 M/min - 30 M/min
High Light:

electric davit winch

,

electric pulling winch

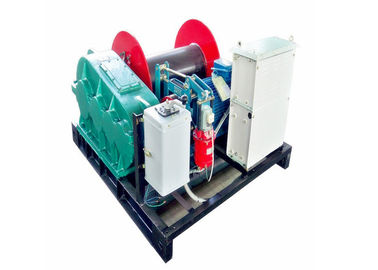

JM ELECTRIC WINCHES

JM Series Electric Winches, Gear Reducer Driving

Widely used in hoisting, pull, tow and unloading loads, for example, all kinds of large mechanical equipments' assembly and disassembly.

Suitable for construction and installation engineering of enterprises, mining areas, factories, etc.



Product Details:

JM Electric Winch

Features and advantages:

1. Gear reducer transmission type electric winch which widely used in industries such as double beam bridge cranes and gantry cranes, etc.

2. Compact structure, reasonable design, easy installation and start, top quality with economic price.

3. High safety and stability with overload protection, shock protection, explosion-proof performance, etc.

4. Mainly used in pulling or lifting heavy objects in road and bridge projects, civil construction, mining area, factory, port, marine, etc.

5. Adapts to installation and disassembly of all kinds of large or super large size steel structures and machinery equipments, reinforce concrete, drag ships and so on.

6. Orderly wire rope, safe and reliable lifting and normal speed is usually not above 12 m/min.



Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope (Φmm) Wire length(m) Drum(mm) Dia.(Φ) Motor power(kw) Weight(kg)without rope Weight(kg)with rope
JMC0.5 500 16 7.7 100 175.00 4.2 129.5 150
JMC1 1000 16 9.3 160 218.00 5.5 170 200
JMC1.5 1500 16 11 200 255.00 5.5 308.1 350
JMC2 2000 16 12.5 200 275.00 7.5 446 460
JMC3 3000 16 15.5 200 315.00 11 517 550
JMC5 5000 9 19.5 250 400.00 11 1280 1437
JMC8 8000 10 26 300 475.00 15 2850 3201
JMC10 10000 9 30 300 515.00 22 3200 3667
JMC16 16000 9 36.5 400 717.00 30 5200 6120
JMC20 20000 10 39 450 950.00 45 7500 8659
JMC30 30000 10 47.5 450 1100.00 55 9200 10916
