Product Details:
Payment & Shipping Terms:
|
| Product Name: | Air Winch | Lifting Weight: | 1-30T |
|---|---|---|---|
| Maximum Lifting Height: | 0-1000m Or At Request | Application: | Cranes,Boat,Mining,Marine,Construction Etc. |
| Cable Rated Speed: | 6-40 M/min Or At Request | Voltage: | 220V ~ 660V 3P 50HZ/60HZ |
| Color: | As Per Your Request | ||
| High Light: | 10 Ton Electric Hydraulic Winch,40m/min Cranes Electric Hydraulic Winch,1000m Lifting Electric Hydraulic Winch |
||

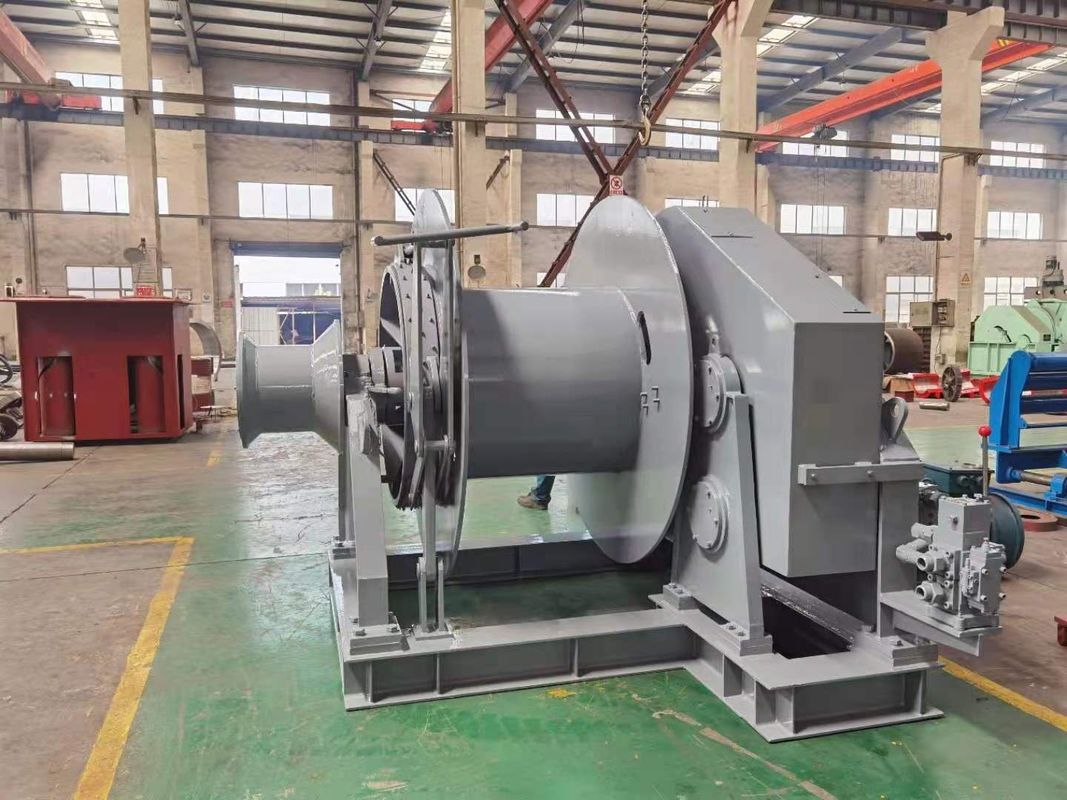

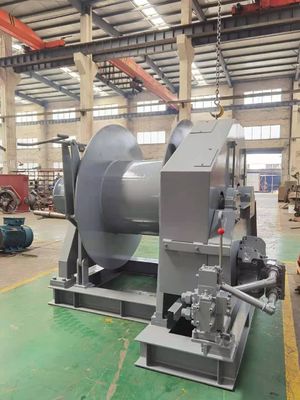

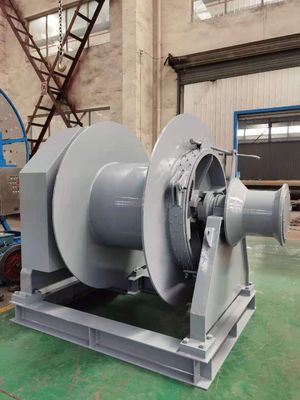

Air Winch 10 Ton Electric Hydraulic Winch For Factory Use
Brief Introduction
This series of electric winch is mainly used for material lifting, hauling heavy loads and cranes as the main hoist in building construction. It is a special hoist for hoist, gantry and hoisting trolley. It is suitable for civil engineering construction and small equipment installation of buildings, mining area lifting and factories.
The standard capacity of electric winch: 1t, 2t, 3t, 5t, 6t, 8t, 10t, 12t,16t, 20t, 25t, 30t. can reach 60t with help of pulley blocks.
The control models: Hand wheel switch or control box with push buttons or remote control.
Slow speed used for crane and installation industry feature
| Model | Cable rated pull (kg) |
Cable rated speed (m/min) |
Wire rope (ɸmm) |
Reduction box | Drum(mm) | ||
| Type | Transmission ratio |
Dia(ɸ) | Length | ||||
| JM2 | 2000 | 12 | 15.53 | JZQ350 | 23.34 | 260 | 480 |
| JM3 | 3000 | 10 | 17 | JZQ350 | 31.50 | 310 | 510 |
| JM5 | 5000 | 11 | 21.50 | JZQ400 | 23.34 | 400 | 730 |
| JM8 | 8000 | 10 | 26 | JZQ500 | 31.50 | 500 | 900 |
| JM10 | 10000 | 9 | 30 | JZQ650 | 40.17 | 550 | 1000 |
| JM12 | 12000 | 9 | 32 | JZQ650 | 40.17 | 650 | 1000 |
| JM16 | 16000 | 6.6 | 36.5 | JZQ750 | 31.50 | 750 | 1830 |
| JM20 | 20000 | 7.7 | 39 | JZQ750 | 31.50 | 750 | 1830 |
| JM25 | 25000 | 8.5 | 42 | JZQ750 | 31.50 | 850 | 1925 |
| JM30 | 30000 | 8.5 | 48 | JZQ850 | 23.34 | 960 | 1960 |
JK fast speed electric winch
If you need to lift and pull heavy loads with a higher efficiency, a high speed winch may be a better choice. Line speed of the winch ranges from 20m/min to 35m/min. This type of winch equipment helps you do the job quickly and safely. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope dia. (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JK0.5 | 500 | 20/30 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JK1 | 1000 | 20/30 | Φ9.3 | 70/120 | Φ165*415 | 5.5/7.5 |
| JK1.5 | 1500 | 20/30 | Φ12.5 | 80/180 | Φ219*450 | 11/15 |
| JK2 | 2000 | 20/30 | Φ12.5 | 80/180 | Φ219*480 | 11/15 |
| JK3 | 3000 | 20/30 | Φ15.5 | 100/200 | Φ219*525 | 15/18.5 |
| JK5 | 5000 | 20/30 | Φ21.5 | 100/200 | Φ325*620 | 22/30 |
| JK8 | 8000 | 20 | Φ26 | 300 | Φ500*900 | 30 |
| JK10 | 10000 | 19 | Φ30 | 450 | Φ550*1000 | 45 |
Advantages
1. High safety and precision;
2. Safety protection device;
3. Starting and stopping smoothly;
4. Reasonable structure, easy maintenance;
5. Top quality with competitive price.
Questions before make quotation:
1. Purpose and application of the winch, lifting or pulling?
2. Capacity?
3. Rope volume?
4. Requirement for rope speed?
5. Power supply?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.
Factory show
