G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton

G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton
G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton

Large Image :  G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton

Product Details:
Place of Origin: CHINA
Brand Name: JCYC
Certification: CE
Model Number: UTMLS
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Carton
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs / week
Detailed Product Description
Product: G80 U.S. Type Master Link Assembly Material: Alloy Steel
Max. Cap.: 120 Ton Min. Cap.: 4 Ton
Safety Factor: 4:1 Color: As Per Request
High Light:

horizontal plate clamp

,

steel lifting clamps

G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton

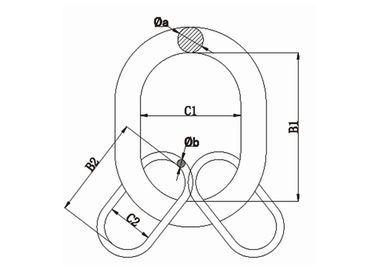

Technique parameters:



WLL ton Breaking load ton Φa mm B1 mm C1 mm Φb mm B2 mm C2 mm Weight kg
4 16 20 140 70 14 85 40 1.6
6 24 22 160 90 14 85 45 2.1
8 32 22 170 90 18 100 60 2.8
11 44 25 178 90 22 100 60 4
16 54 32 230 120 25 110 65 7.1
21.7 86.8 38 267 135 30 180 100 13.3
28.4 113.6 45 305 152 33 180 100 18.9
35 140 50 350 190 40 180 100 27.8
45 180 57 405 200 50 200 110 44.5
60 240 72 460 250 50 200 110 65.6
100 400 82 460 260 70 430 220 139
120 480 89 610 305 72 430 220 173.2



Features



1. The WLL should be clearly marked.
2. The safety catch should be in place and functioning correctly.
3. The hook should be checked for any distortion, cracking and excessive wear or corrosion.

NOTE: The wear on the bearing surface of the hook should not exceed 8% of the nominal dimension.
4. Check that the opening of the hook is within the manufacturers parameters. If the hook is opened excessively it is a sign that it has been point loaded or overloaded.
5. Moving parts such as release cams should be checked for free movement.
6. If the hook is a ball bearing swivel hook check that the hook is swivelling freely and that the bearing is not making any unusual noises. Unusual noises are often a sign of bearing fatigue or bearing failure.
7. If the hook has a threaded machined shank ensure that the thread is in good order and that the nut is turning freely on the thread.



Product show

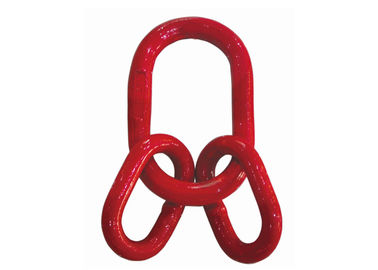

G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton 0

G80 US Type Master Link Assembly Welded Main Link and Welded Sub Link Up To 120ton 1
