380V 35 Ton 1440 R/Min Explosion Proof Chain Hoist

China Chongqing Shanyan Crane Machinery Co., Ltd. certification
China Chongqing Shanyan Crane Machinery Co., Ltd. certification
Nice quality

—— George

Professional and delivery on time, treat me good.

—— Patrick

Works perfectly !

—— Khalid

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Kent Rosal

Please develop more nice hoist and with better prices, so we can sell your hoist to more clients and gain larger markets. Thank you.

—— Khalid Abu Hasera

Mr. Sen is a nice man, he help me a lot, thanks for you give us quickly respone and save us many times. good job!

—— Sivakumar veerappa nainar

I'm Online Chat Now

380V 35 Ton 1440 R/Min Explosion Proof Chain Hoist

380V 35 Ton 1440 R/Min Explosion Proof Chain Hoist
380V 35 Ton 1440 R/Min Explosion Proof Chain Hoist

Large Image :  380V 35 Ton 1440 R/Min Explosion Proof Chain Hoist

Product Details:
Place of Origin: China
Brand Name: JCYC / OEM
Certification: CE
Model Number: EP, SY-EP
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: plywood cases
Delivery Time: 15 workdays
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 900 pieces per month
Detailed Product Description
Product Name: Explosion Proof Electric Chain Hoist Feature: Explosion Proof
Capacity: 1-35 Ton Lifting Speed: 0.7-6.8 M/min
Running Speed: 10/20 M/min R.P.M: 1440 R/min
Voltage: 220v-440v 50/60hz 3phase
High Light:

1440 R/Min Explosion Proof Chain Hoist

,

35 Ton Explosion Proof Chain Hoist

Explosion Proof Electric Chain Hoist





1. Product Profile:

EP Model Explosion-proof Electric Chain Hoist. It completely solved sparkers problem and widely used in special industries. Its working system is M3 - M4, has 120 numbers of connecting times. Standard power source is three phase AC 380 V 50 Hz, customization is ok.

2. Description:

2.1. Grade: Ex d II B T4 Gb.



2.2 Insulation of motor: F Class.

2.3. High quality and wide adaptation.

2.4. Excellent performance.

2.5. 1 year warranty

2.6. Sample, OEM and ODM are all available.

3. Advantages:

3.1. The main parts of it adopt high quality steel product to ensure durability.

3.2. Special specifications and marks can be made according to customers' requirements.

3.3. Adapts to environment that has explosive gas formed by inflammable gas, steam and sir, etc

3.4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

3.5 Explosion-proof electric chain hoist.

4. Parameter:


Model Lifting Capacity(t) Lifting Speed(m/min) Running Speed(m/min) Lifting Motor Running Motor I-Beam(mm)
Power(kw) R.P.M(r/min) Power Supply Power(kw) R.P.M(r/min) Power Supply
EP1 1 6.8 10/20 1.5 1440 220-440V 50/60HZ 3Phase 0.4 1440 220-440V 50/60HZ 3Phase 80-160
EP2-1 2 6.8 10/20 3.0 1440 0.4 1440 82-178
EP2-2 2 3.4 10/20 1.5 1440 0.4 1440 82-178
EP3-1 3 5.4 10/20 3.0 1440 0.4 1440 100-178
EP3-2 3 3.4 10/20 3.0 1440 0.4 1440 100-180
EP5-2 5 2.7 10/20 3.0 1440 0.75 1440 110-180
EP10-4 10 2.8 10/20 3.0*2 1440 0.75*2 1440 150-220
EP15-6 15 1.9 10/20 3.0*2 1440 0.75*2 1440 150-220
EP20-8 20 1.4 10/20 3.0*2 1440 0.75*2 1440 150-220
EP25-10 25 1.1 10/20 3.0*2 1440 0.75*2 1440 150-220
EP30-12 30 0.9 10/20 3.0*2 1440 0.75*2 1440 150-220
EP35-16 35 0.7 10/20 3.0*2 1440 0.75*2 1440 150-220







6. Warm tips:



In order to save cost and time for you,we need your provide below information:



1.Which kinds of chain hoist do you need?

2.FOB or CIF price?(If CIF price,tell us your destination )

3.Quantity?(pieces)

4.Lifting capacity?(ton)
5.Lifting height?(m)
6.Working voltage?(V,HZ,Phase)
7.Working environment?
8.How many hours the hoist works one day?
9.Any other requirement do you need?



7. Product show:

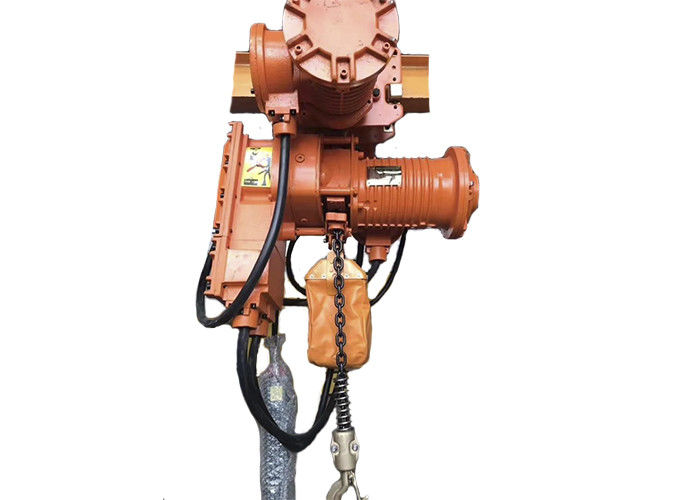

380V 35 Ton 1440 R/Min Explosion Proof Chain Hoist 0
