| Name: | QDT Series Explosion Proof Chain Hoist Pneumatic Motor CE Certification | Material: | Alloy Steel Chain |
|---|---|---|---|
| Power: | Air | Color: | Grey |
| Function: | Anti-explosion | Motor: | Pneumatic |
| Capacity: | 0.08-160t | Type: | QDH |
| High Light: | explosion proof wire rope hoist,pneumatic air hoist |
||
QDT Series Explosion Proof Chain Hoist Pneumatic Motor CE Certification
1. Usage Range:
Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields especially anti-explosion places. 100% work system to make the required conditions for high-efficient continuous jobs.
2. Features:
2.1. The main parts of it adopt high quality steel product to ensure durability.
2.2. Special specifications and marks can be made according to customers' requirements.
2.3. Various lifting capacity, meet different needs.
2.4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
2.5 Explosion-proof grade: Ⅰ Hazardous area, Including ⅡC, Group T5 and below.
3. Parameter:
|
Model |
Capacity t | Lifting height m | Motor power ps | Lifting speed with load m/min |
Lowering speed with load m/min |
Working pressure M Pa |
Air consumption M3/min | Load Chain Spec. |
Load Chain Weight kg/m | No. of chain falls | H mm | L mm |
A mm | I-beam | Weight kg | |
| QDH 01 | 0.08 | 3 | 0.8 | 18 | 20 | ≥ 0.55 | 1 | 5*15 | 0.46 | 1 | 320 | 285 | 122 | 10-18 | 16 | |
| QDH 02 | 0.125 | 16 | 18 | 1 | 18 | |||||||||||
| QDH 03 | 0.25 | 14 | 16 | 2 | 395 | 20 | ||||||||||
| QDH 04 | 0.5 | 1 | 9 | 10 | 1.2 | 295 | 16-22 | 22 | ||||||||
| QDH 05 | 1 | 1.2 | 5 | 6 | 1.5 | 6*18 | 0.79 | 460 | 350 | 158 | 36 | |||||
| QDH 06 | 1.5 | 1.5 | 4.5 | 5 | 1.8 | 7*12 | 1.07 | 495 | 365 | 170 | 18-28 | 42 | ||||
| QDH 07 | 2 | 4 | 45 | |||||||||||||
| QDH 08 | 3 | 1.2 | 3 | 3.2 | 1.5 | 8*24 | 1.38 | 550 | 380 | 150 | 53 | |||||
| QDH 09 | 5 | 1.4 | 1.6 | 10*28 | 2.2 | 840 | 415 | 180 | 28-36 | 57 | ||||||
| QDH 10 | 6 | 1.2 | 1.3 | 880 | 420 | 195 | 66 | |||||||||
| QDH 11 | 8 | 3.6 | 1.1 | 1.2 | 4 | 12*36 | 3.1 | 1000 | 530 | 220 | 178 | |||||
| QDH 12 | 10 | 1 | 1.1 | 4.2 | 14*42 | 4.13 | 1050 | 570 | 235 | 193 | ||||||
| QDH 13 | 12.5 | 0.9 | 1 | 1110 | 590 | 245 | 198 | |||||||||
| QDH 14 | 15 | 0.8 | 0.9 | 18*54 | 6.85 | 1480 | 300 | 36-50 | 390 | |||||||
| QDH 15 | 20 | 830 | 420 | |||||||||||||
| QDH 16 | 25 | 0.7 | 0.8 | 14*42 | 4.13 | 4 | 1280 | 740 | 245 | 426 | ||||||
| QDH 17 | 30 | 22*66 | 10.2 | 1660 | 990 | 370 | 839 | |||||||||
| QDH 18 | 40 | 0.5 | 0.6 | 18*54 | 6.85 | 765 | 325 | 50-63 | 560 | |||||||
| QDH 19 | 50 | 0.4 | 0.5 | 22*66 | 10.2 | 1890 | 1185 | 415 | 1390 | |||||||
| QDH 20 | 60 | 0.35 | 0.45 | 1980 | 1190 | 420 | 1480 | |||||||||
| QDH 21 | 80 | 5.8 | 0.28 | 0.32 | 7.5 | 26*78 | 14.87 | 2610 | 1350 | 445 | 2150 | |||||
| QDH 22 | 100 | 0.25 | 0.3 | 30*90 | 19.6 | 3400 | 1540 | 480 | 2970 | |||||||
| QDH 23 | 120 | 0.2 | 0.25 | 32*96 | 22.29 | 4450 | 1700 | 510 | 3540 | |||||||
| QDH 24 | 160 | 36*108 | 31 | 5800 | 1890 | 560 | 4590 |

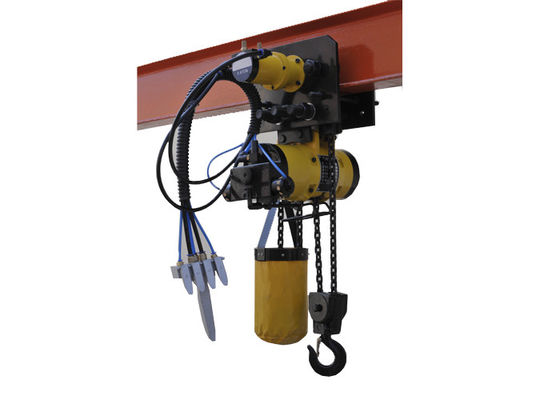

4. Product Photo:
5. Company Message:
OEM & ODM are both ok. Welcomes contact us to gain mutual benefits and make bright future together.
