10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley

10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley
10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley 10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley

Large Image :  10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley

Product Details:
Place of Origin: China
Brand Name: JCYC/OEM
Certification: CE & ISO
Model Number: CD1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export plywood cases or at your request
Delivery Time: 15 to 20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets per month
Detailed Product Description
Product Name: 10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley Type: Double Girder
Motor: Nanjing Motor Application: Double Girder Overhead Crane
Lifting Capacity: 1t - 80t Lifting Height: 6m/9m/12m/15m/18m
High Light:

Girder Rail Electric Wire Rope Hoist

,

Electric Wire Rope Hoist 10T

,

15m Lifting Wire Rope Hoist

10 Ton Double Girder Rail Electric Wire Rope Hoist with Electric Traveling Trolley





General description



Wire rope electric hoist is a kind of small-sized lifting equipment, which can be installed independently working in steel or H-steel, but also with the single girder bridge crane, hoist double girder bridge crane, gantry crane and hoist jib crane hoisting equipment.



Wire rope electric hoist main have CD1 type and MD1 type;HC type and HM type wire rope electric hoist. Normally, CD1 type wire rope electric hoist working speed is 8 m/min; MD1 type wire rope electric hoist working speed is 0.8/ 8 m/min.CD1 and MD1 type wire rope electric hoist lifting capacity from 0.25ton to 16ton.CD and MD wire rope electric hoist is a light lifting equipments.



HC type and HM type wire rope electric hoist is a heavy duty lifting equipments. HC type electric hoist working speed is single speed, HM type electric hoist working speed is double speed; HC and HM type wire rope electric hoist lifting capacity from 16ton to 80ton.



Applications



1. Factory,workshop,warehouse,store;

2. Logistic,dock,port , freight yard;

3. Construction building,mine,etc.



Hoists parts description



1. Motor: Motor is usting for hoist trolley travel and hoist lifting, our supplier brand is Nanjing motor, Nanjing special motor etc. or as your                    requirement.



2. Gear box: gear box is usting for hoist lifting, under 16ton capacity always use round shape gear box, more than 16ton capacity always adopt

     square shape. It is made by our factory, all the gears inside through heat treatment to keep its long using life.



3. Rope guide: rope guide can arrange the wire rope to reeving on drum orderly, to prevent the wire rope from winding disorderly. We have cast        iron or steel rope guide.



4. Remote control have wired type and wireless type, it can be choosed by your requirement, its features are with waterproof protection, light and      durable.



5. Hook is the sling for hoist, we have our own forge workshop, to keep the quality of forge hook, with 360 degree rotation and high bearing                strength.



6. We have normal wire rope and galvanized type wire rope, mainly adopt Chinese top quality wire rope brand such as GSR.



7. It can keep the hoist lift within suitable lift height, when the goods lift to max height, the power will be cutted automatically.



Technical parameters



Loading capacity 0.25 ~ 80t
Lifting height 3 ~ 50m or customized
Lifting speed

Single speed: 0.3 ~ 8m/min; or customized

Variable frequency speed: 0.1 ~ 12.5m/min; or customized

Working class M3 ~ M6
Working temperature -20 ~ 40ºC
Power supply AC-3Phase-220//230380/400/415/440V-50/60Hz
Control voltage DC-36 / 48V
Motor protection class IP54 IP55
Control way Ground handle control(Push button),wireless remote control
Safety device Buffer,current overload protection,overload device,power failure protection
Application area Factory,workshop,warehouse,power station,logstic,etc.
Painting color Yellow, red or customized



Product show

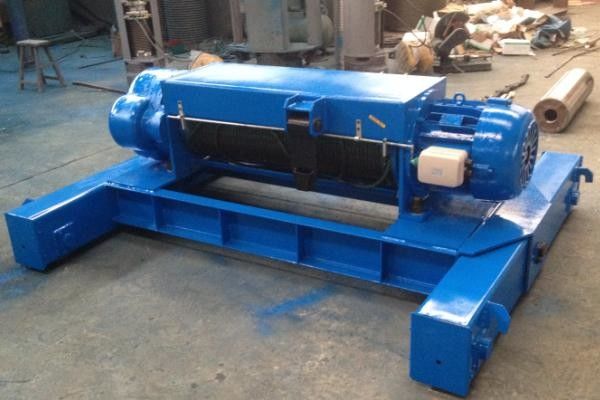

10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley 0

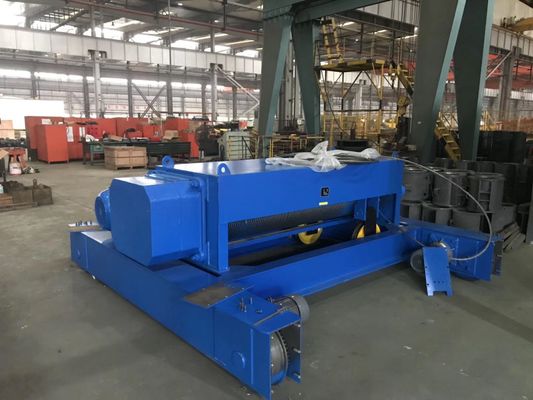

10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley 1
