M5 Gantry Overhead Crane 15T Electric Wire Rope Hoist

M5 Gantry Overhead Crane 15T Electric Wire Rope Hoist
M5 Gantry Overhead Crane 15T Electric Wire Rope Hoist
video play

Large Image :  M5 Gantry Overhead Crane 15T Electric Wire Rope Hoist

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE&ISO
Model Number: SHSL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 10 -15 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 1000 units per month
Detailed Product Description
Name: European Type Electric Wire Rope Hoist Capacity: 1t To 80t
Standard Lifting Height: 6/9/12/18M Lifting Speed: Double Speed, Frequency Controlled Speed
Working Duty: M5 Motor: ABM MOTOR
Voltage: 380V/440V 50hz/60hz
High Light:

15T Electric Wire Rope Hoist

,

M5 Electric Wire Rope Hoist

,

Gantry Wire Rope Crane Hoist

Overhead Single Girder Crane 15T Electric Wire Rope Hoist European Model





Product Introduction



European Type Electric Wire Rope Hoist

It is latest designed internation standard product by combining and applying the advanced German technologies. It has compact structure and its frame is in rectangular shape. Its drum is made of seamless steel pipe. Its planetary gearbox, which is in the hoisting drum, electromotor and electric control box is in beeline collocation. The hoist has overload protection, overheating protection and phase relay protection devices. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.



Application



It is widely used for overhead crane, gantry crane etc. heavy duty industry, light duty industry especially highly resticted environment plants. Especially for the places with high environmental requirements.



Features



* Trolley with frequency conversion motor
* Double speed/frequency conversion lifting motor
* Motor protection grade IP55, Insulation grade F
*Electromagnetic disc brake, maintenance-free
* Control volatege 24v/26v/48v/110v
* Schneider contactor & Inverter
* 380V/415V/440V/460V/3PH/50/60HZ
*Lifting limit switch
*Hook, with safety latch
* Overload limiter
*Ambient temperature: -20ºC~+40ºC
*Motor over temperature protection



Technical Parameters



Capacity ton Lifting height m Lifting speed m/min Lifting motor kw Traveling speed m/min Traveling motor kw Lifting System FEM/ISO Traveling System
FEM/ISO
I-Beam Width mm
2t 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 150-300
3.2t 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 150-300
5t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 200-350
6.3t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 200-350
8t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 200-410
10t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 200-410
12.5t 6/9/12/15/18 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 200-410
16t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75x2 2M M5 2M M5 300-450
20t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75x2 1Am M4 2M M5 300-450
8t 20/24/28/32/36 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 200-410
10t 20/24/28/32/36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 200-410
12.5t 20/24/28/32/36 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 200-410

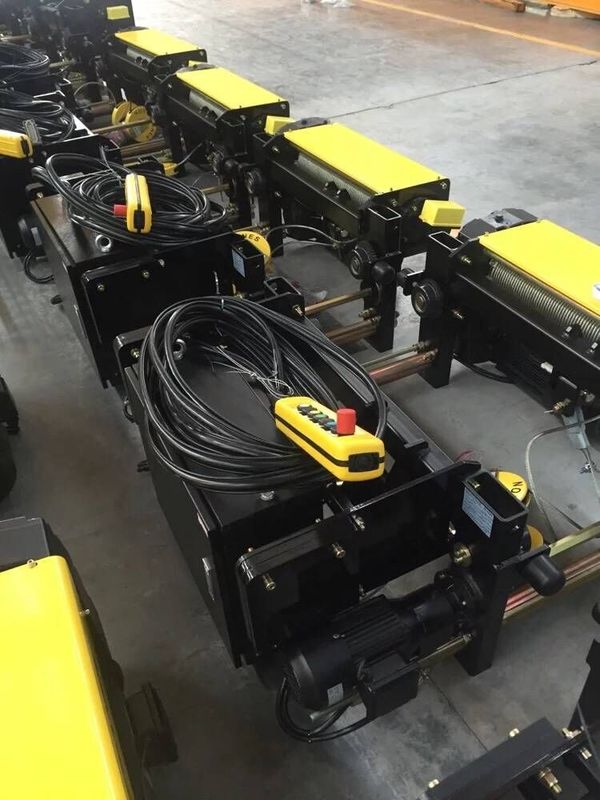

Product show



M5 Gantry Overhead Crane 15T Electric Wire Rope Hoist 0M5 Gantry Overhead Crane 15T Electric Wire Rope Hoist 1M5 Gantry Overhead Crane 15T Electric Wire Rope Hoist 2
