| Product Name: | 10 Ton Double Girder Rail Electric Wire Rope Hoist With Electric Traveling Trolley | Type: | Double Girder |
|---|---|---|---|
| Motor: | Nanjing Motor | Application: | Double Girder Overhead Crane |
| Lifting Capacity: | 1t - 80t | Lifting Height: | 6m/9m/12m/15m/18m |
| High Light: | Girder Rail Electric Wire Rope Hoist,Electric Wire Rope Hoist 10T,15m Lifting Wire Rope Hoist |
||
10 Ton Double Girder Rail Electric Wire Rope Hoist with Electric Traveling Trolley
General description
Wire rope electric hoist is a kind of small-sized lifting equipment, which can be installed independently working in steel or H-steel, but also with the single girder bridge crane, hoist double girder bridge crane, gantry crane and hoist jib crane hoisting equipment.
Wire rope electric hoist main have CD1 type and MD1 type;HC type and HM type wire rope electric hoist. Normally, CD1 type wire rope electric hoist working speed is 8 m/min; MD1 type wire rope electric hoist working speed is 0.8/ 8 m/min.CD1 and MD1 type wire rope electric hoist lifting capacity from 0.25ton to 16ton.CD and MD wire rope electric hoist is a light lifting equipments.
HC type and HM type wire rope electric hoist is a heavy duty lifting equipments. HC type electric hoist working speed is single speed, HM type electric hoist working speed is double speed; HC and HM type wire rope electric hoist lifting capacity from 16ton to 80ton.
Applications
1. Factory,workshop,warehouse,store;
2. Logistic,dock,port , freight yard;
3. Construction building,mine,etc.
Hoists parts description
1. Motor: Motor is usting for hoist trolley travel and hoist lifting, our supplier brand is Nanjing motor, Nanjing special motor etc. or as your requirement.
2. Gear box: gear box is usting for hoist lifting, under 16ton capacity always use round shape gear box, more than 16ton capacity always adopt
square shape. It is made by our factory, all the gears inside through heat treatment to keep its long using life.
3. Rope guide: rope guide can arrange the wire rope to reeving on drum orderly, to prevent the wire rope from winding disorderly. We have cast iron or steel rope guide.
4. Remote control have wired type and wireless type, it can be choosed by your requirement, its features are with waterproof protection, light and durable.
5. Hook is the sling for hoist, we have our own forge workshop, to keep the quality of forge hook, with 360 degree rotation and high bearing strength.
6. We have normal wire rope and galvanized type wire rope, mainly adopt Chinese top quality wire rope brand such as GSR.
7. It can keep the hoist lift within suitable lift height, when the goods lift to max height, the power will be cutted automatically.
Technical parameters
| Loading capacity | 0.25 ~ 80t |
| Lifting height | 3 ~ 50m or customized |
| Lifting speed |
Single speed: 0.3 ~ 8m/min; or customized Variable frequency speed: 0.1 ~ 12.5m/min; or customized |
| Working class | M3 ~ M6 |
| Working temperature | -20 ~ 40ºC |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
| Control voltage | DC-36 / 48V |
| Motor protection class | IP54 IP55 |
| Control way | Ground handle control(Push button),wireless remote control |
| Safety device | Buffer,current overload protection,overload device,power failure protection |
| Application area | Factory,workshop,warehouse,power station,logstic,etc. |
| Painting color | Yellow, red or customized |

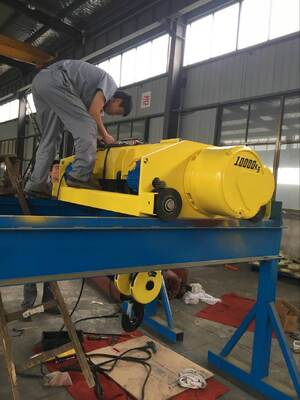

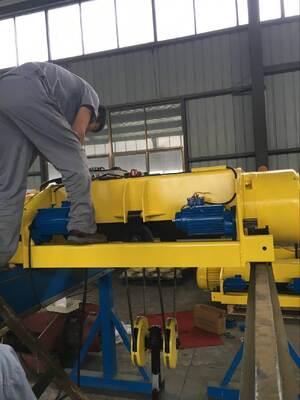

Product show
