20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch

20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch
20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch 20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch

Large Image :  20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch

Product Details:
Place of Origin: China
Brand Name: JCYC/OEM
Certification: CE&ISO
Model Number: JM
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD negotiate per unit

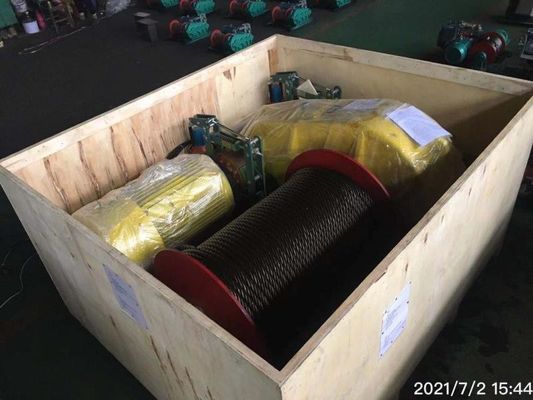

Packaging Details: Plywood case
Delivery Time: 10 -15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 500 pcs per month
Detailed Product Description
Product Name: 20 Ton Electric Mining Winch Vehicle Recovery Winch With ISO For Sale Lifting Weight: 0.25t To 35t
Maximum Lifting Height: 0-1000m Or At Request Application: Cranes,Boat,Mining,Marine,Construction Etc.
Cable Rated Speed: 6-40 M/min Or At Request Voltage: 220V ~ 690V 3P 50HZ/60HZ
High Light:

20 Ton Electric Lifting Winch

,

12m/Min Vehicle Recovery Winch

,

2000kg Load Wire Rope Winch

20 Ton Electric Mining Winch Vehicle Recovery Winch with ISO for Sale





Overview for mine winch crane



JCYC electric mining winch is a pulling vehicle recovery winch. It is certificated with ISO manufacture license. Generally speaking, winch is a kind of general-purposed lifting equipment, with safety, convenient in operation, reliable, durable, low in noise and so on character,

to be used widely in construction site, plant, mine, marine, port and wharf etc. It's a necessary equipment for horizontal or slope pulling.



20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch 0



Slow speed used for crane and installation industry features



Standard slow speed JM winch technical parameters



Model Cable rated pull
(kg)
Cable rated
speed
(m/min)
Wire rope
(ɸmm)
Reduction box Drum(mm)
Type Transmission
ratio
Dia(ɸ) Length
JM2 2000 12 15.53 JZQ350 23.34 260 480
JM3 3000 10 17 JZQ350 31.50 310 510
JM5 5000 11 21.50 JZQ400 23.34 400 730
JM8 8000 10 26 JZQ500 31.50 500 900
JM10 10000 9 30 JZQ650 40.17 550 1000
JM12 12000 9 32 JZQ650 40.17 650 1000
JM16 16000 6.6 36.5 JZQ750 31.50 750 1830
JM20 20000 7.7 39 JZQ750 31.50 750 1830
JM25 25000 8.5 42 JZQ750 31.50 850 1925
JM30 30000 8.5 48 JZQ850 23.34 960 1960



JK fast speed electric winch


If you need to lift and pull heavy loads with a higher efficiency, a high speed winch may be a better choice. Line speed of the winch ranges from 20m/min to 35m/min. This type of winch equipment helps you do the job quickly and safely. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.



Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope dia. (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JK0.5 500 20/30 Φ7.7 50/120 Φ140*300 2.2
JK1 1000 20/30 Φ9.3 70/120 Φ165*415 5.5/7.5
JK1.5 1500 20/30 Φ12.5 80/180 Φ219*450 11/15
JK2 2000 20/30 Φ12.5 80/180 Φ219*480 11/15
JK3 3000 20/30 Φ15.5 100/200 Φ219*525 15/18.5
JK5 5000 20/30 Φ21.5 100/200 Φ325*620 22/30
JK8 8000 20 Φ26 300 Φ500*900 30
JK10 10000 19 Φ30 450 Φ550*1000 45

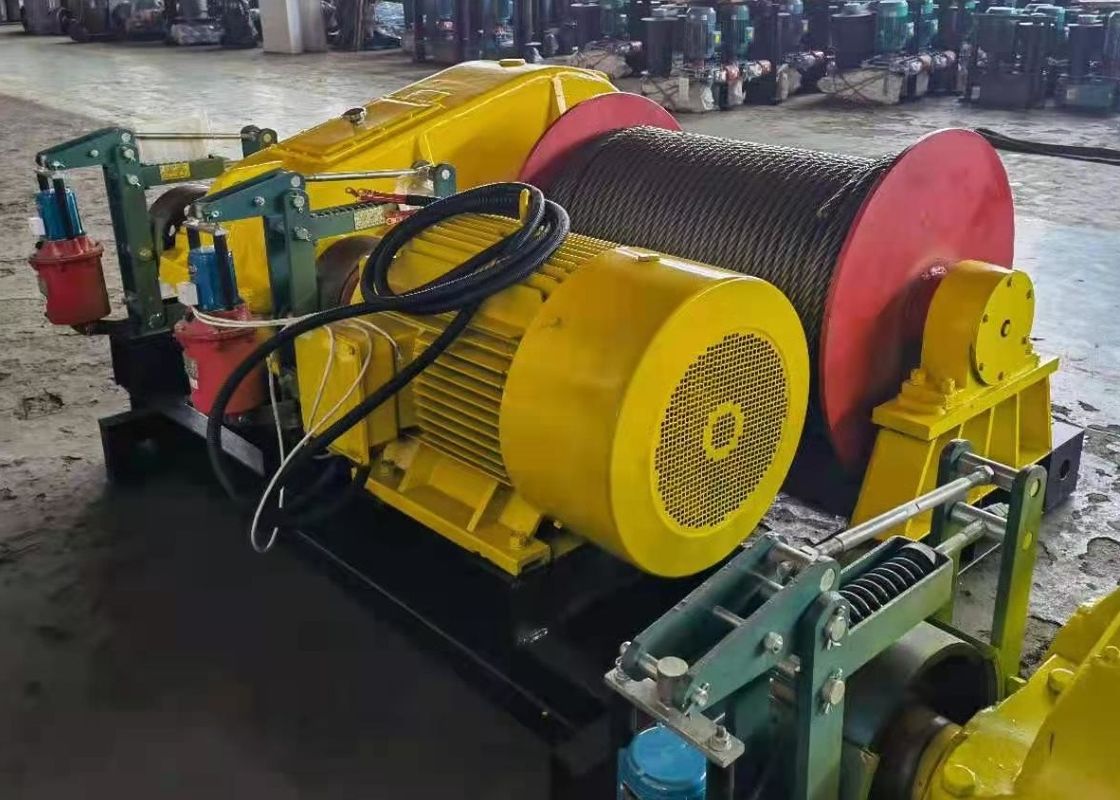

Electric winch generally includes the following units:

1. motor.

2. Reduction gear box.

3. winch drum.

4. Brake.

5. electric control system.

6. optional rope guider.

20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch 1



Questions before make quotation:

1. Purpose and application of the winch, lifting or pulling?
2. Capacity?
3. Rope volume?
4. Requirement for rope speed?
5. Power supply?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.



Aftersale services:



* One year warranty from delivery;

* Free components for replacement within warranty period;

* Professional solution provider;

* Free technical support at any time;

* Customer training is available;

* On-site installation and commissioning is available;

* Sales cell number is 24 hours available.



Factory show



20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch 2

20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch 3

20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch 4
