1380rpm M3 Electric Lifting Hoist For Water Conservancy

1380rpm M3 Electric Lifting Hoist For Water Conservancy
1380rpm M3 Electric Lifting Hoist For Water Conservancy 1380rpm M3 Electric Lifting Hoist For Water Conservancy

Large Image :  1380rpm M3 Electric Lifting Hoist For Water Conservancy

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE&ISO
Model Number: DPH
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD negotiable per unit
Packaging Details: Plywood case
Delivery Time: 10 -15 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P
Supply Ability: 500 pcs per month
Detailed Product Description
Name: Double Lifting Point And Double Hook Electric Hoist Capcity: 0.25t-50t
Lifting Height: 3m-24m Hook Distance: 3-9m Or At Request
Voltage: 220v-440v,50HZ/60HZ Control Type: Wire Cable Control / Wireless Remote Control
High Light:

M3 Electric Lifting Hoist

,

1380rpm Electric Lifting Hoist

,

Water Conservancy Wire Rope Hoist

Double Lifting Point and Fall Double Hook Electric Hoist for Water Conservancy Project





General Description:



Double hook electric hoist is suitable for lifting extra long workpieces or items. The most notable feature of the double-rope electric hoist is that the position of the hook in the axial direction of the hoist is fixed. Therefore, this type of hoist is mainly used in places where there is no axial movement of the hoisting items, such as supporting the hoist double beam and the gate crane, power station lifting equipment etc. The hook distance can be designed according to the user's requirements.



The double hook electric hoist is consist of two CD1/MD1 electric hoists and connect them with rails. Each hoist has one motor. They are controlled by one cable button or wireless remote control so that they are lifting and falling at the same time. The hook distance can be custmoized according to customers' specific requirement, range from 3m to 24m. Before quote, customer need to confirm capacity, lifting height, hook distance and the power supply. Contact us to build your own lifting solution.



Features and advantages:



The non-standard double hook electric hoists design requirements are very high, and need manufacturers to provide customized solutions, taking into account factors such as feasibility, stability and safety. Our non-standard electric hoist design engineers carefully design each detail according to the customer's needs.



Technique parameters(reference):



1380rpm M3 Electric Lifting Hoist For Water Conservancy 0

Type DPH3+3 DPH5+5 DPH8+8
Working Class M3 M3 M3
Capacity(t) 2x3 2×5 2×8
LiftingSpeed(m/min) 8;8/0.8 8;8/0.8 7; 7/0.7
Travelling Speed(m/min) 20 20 20
Lifting Motor Type ZD51-4;
ZDS1-0.4/4.5
ZD51-4;
ZDS1-0.8/7.5
ZDX51-4;
ZDS1-1.5/11
Power(KW) 2×4.5;
2×4.5/0.4
2×7.5;
2×7.5/0.8
2×11;2×11/1.5
Rotate Speed(rpm) 1380 1380 1380
Travelling
Motor
Type ZDY21-4 ZDY21-4 ZDY21-4
Power(KW) 2×0.8 2×0.8 4×0.8
Speed(rpm) 1380 1380 1380
Recommanded Track I25-I63 I25-I63 I25-I63
Distance between the hookL(m) 1.5~6 1.5~6 1.5~8
Lifting HeightL(m) 6 9 12 18 24 30 6 9 12 18 24 30 9 12 16 24 30



Application photos:

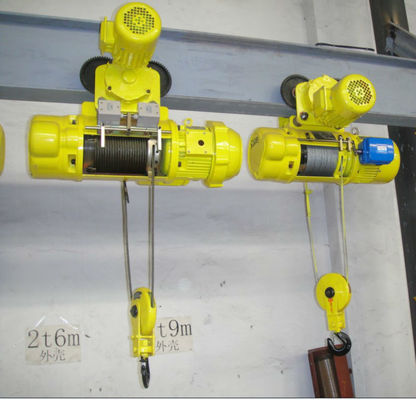

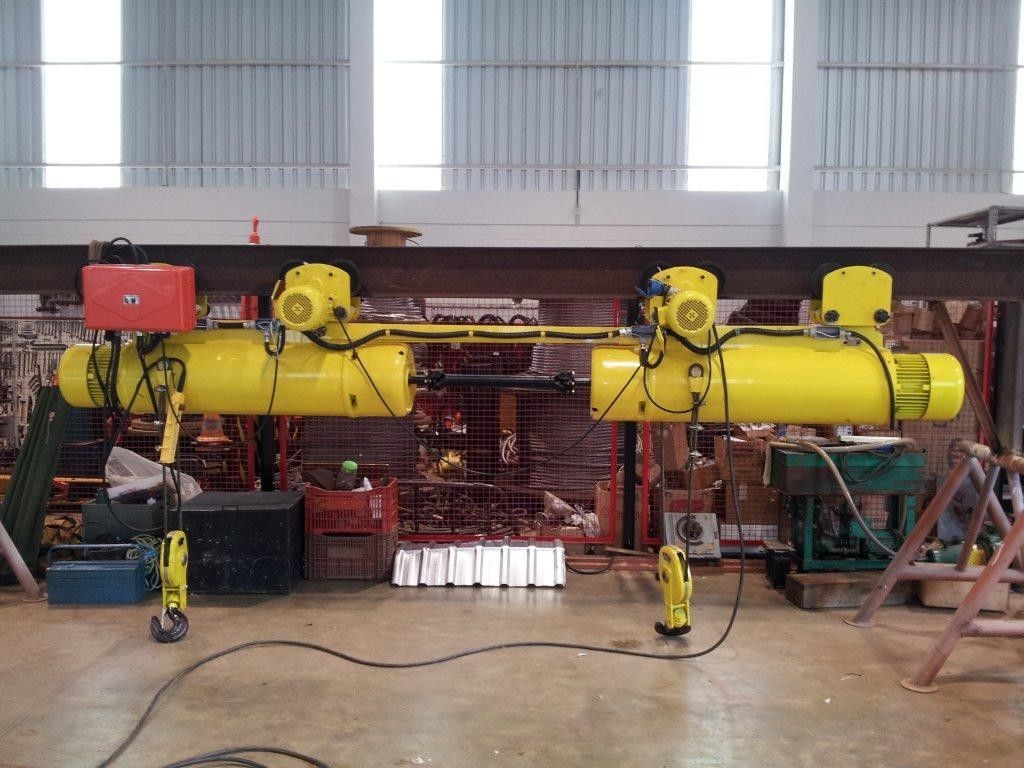

1380rpm M3 Electric Lifting Hoist For Water Conservancy 1

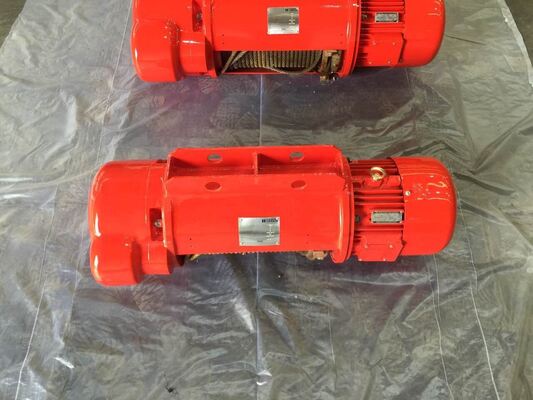

1380rpm M3 Electric Lifting Hoist For Water Conservancy 2
