| Product: | Electric Beam Trolley Crane Wheel Block For Single Girder Double Girder Overhead Crane | Application: | Spare Parts For Crane End Carriage |
|---|---|---|---|
| Wheel Load: | 50-350KN Or At Request | Motor Power: | 0.55-2.2kw Or At Request |
| Operation Form: | Air Operation+Ground Operation | Main Girder Form: | Single/Double Girder |
| High Light: | 2.2kw Crane Wheel Block,350KN Crane Wheel Block,Wheel Block Crane End Carriage |
||

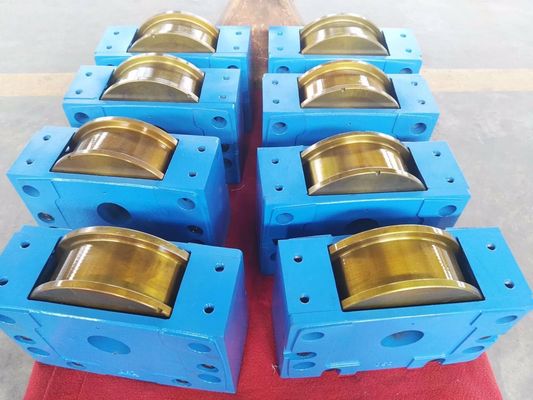

Electric Beam Trolley Crane Wheel Block for Single Girder Double Girder Overhead Crane
Brief Introduction
End carriage made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion
wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.
It only need to weld the main beam and end beam after correction. Making crane manufacturing,installation and maintenance
very easily.European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.
Main Features:
1. Low noise, commodious cabin and good view .
2. Safe and reliable traveling .
3. Reasonable structure .
5. Smooth starting and stopping .
6. Saves electricity specifications .
7. Convenient maintenance .
8. Excellent exchangeability for parts .
9. Overload limiter , Limit switch (lifting and traveling) , Interlock protection device ,
Buffer ,Overhaul cage ,Rail clear plate ,Protective cover ,Bus bar preventer plate ,Anticollision
device ,Main isolating switch ,Emergency stop system ,Motor overload protection etc.
Technical parameters
| Model | Wheel load(kN) | Motor(kW) | D1 (mm) | D2 (mm) |
D3 (mm) |
D4 (mm) |
H1 (mm) |
H2 (mm) | W1 (mm) | W2 (mm) | L1 (mm) | B1 (mm) | L2 (mm) | B2 (mm) | N.W (kg) |
| WB125-27 | 50 | FA27-0.55 | 125 | 150 | 21 | 13 | 138 | 148 | 60 | 80 | 220 | 100 | 1740 | 55 | 15.5 |
| WB160-37 | 100 | FA37-0.75 | 160 | 190 | 30 | ||||||||||
| WB200-47 | 180 | FA47-1.1 | 200 | 230 | 35 | ||||||||||
| WB250-57 | 250 | FA57-1.5 | 250 | 280 | 40 | ||||||||||
| WB315-67 | 350 | FA365-2.2 | 315 | 355 | 50 |
Four types of Bridge Crane End Carriage
1.Single girder end carriage
Single Girder End Carriage is suitable for Crane with Capacity less than 32 tons. Its structure is simple, and its maintenance is convenient. It has two high torque driving motors, which is suitable for most of the use environment.
2.Double girder end carriage
Double Girder is suitable for double girder cranes. The rated load is greater, and it is used in high load environment. It has a traveling wheel installed, running smoothly, and having less noise.
3.Undehung end carriage
Undehang End Carriage is used in Suspended cranes, compared to ordinary End Carriage, and its wheels are specially designed for suspension, and its weight is lighter.
4.Double track power trolley
Double Track Power Trolley has a larger capacity and more than 50T. Two high torque crane motor are used in double beam driving.
Those four types of end carriage suitable for a variety of working conditions, including factories, workshops, outdoor, warehouses, etc.

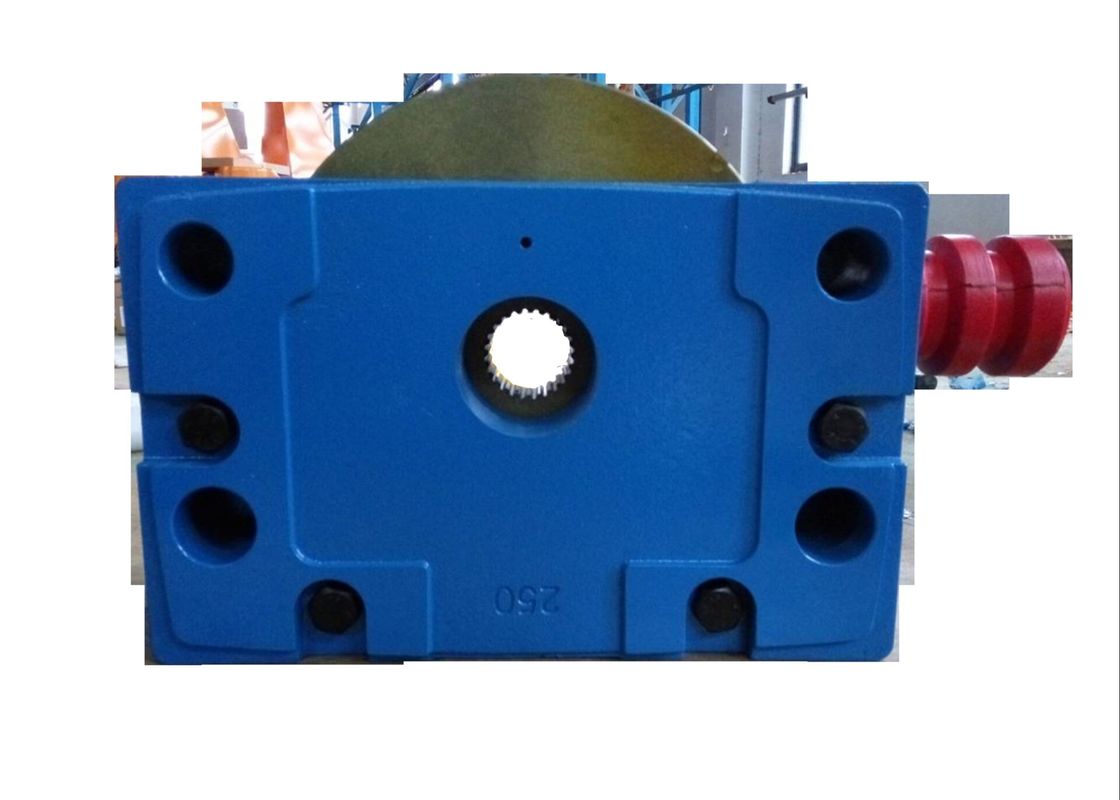

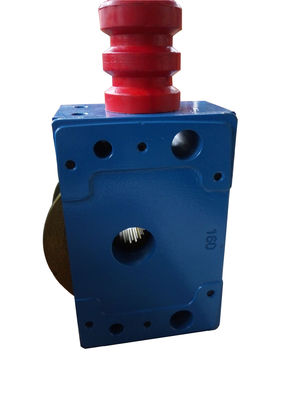

Product details:
