Product Details:
Payment & Shipping Terms:
|
| Product: | 1ton To 20ton High Quality Overhead Crane End Carriages | Type: | Hollow Shaft End Carriage |
|---|---|---|---|
| Voltage: | 220V To 690V 3P 50/60Hz | Capacity: | 1ton To 20ton |
| Crane Beam: | Customised At Request | Control: | Air Operation+Ground Operation |
| Motor: | ABM/own Brand | ||
| High Light: | Overhead Crane End Carriage,20T Crane End Carriage,Hollow Shaft Crane End Carriage |
||

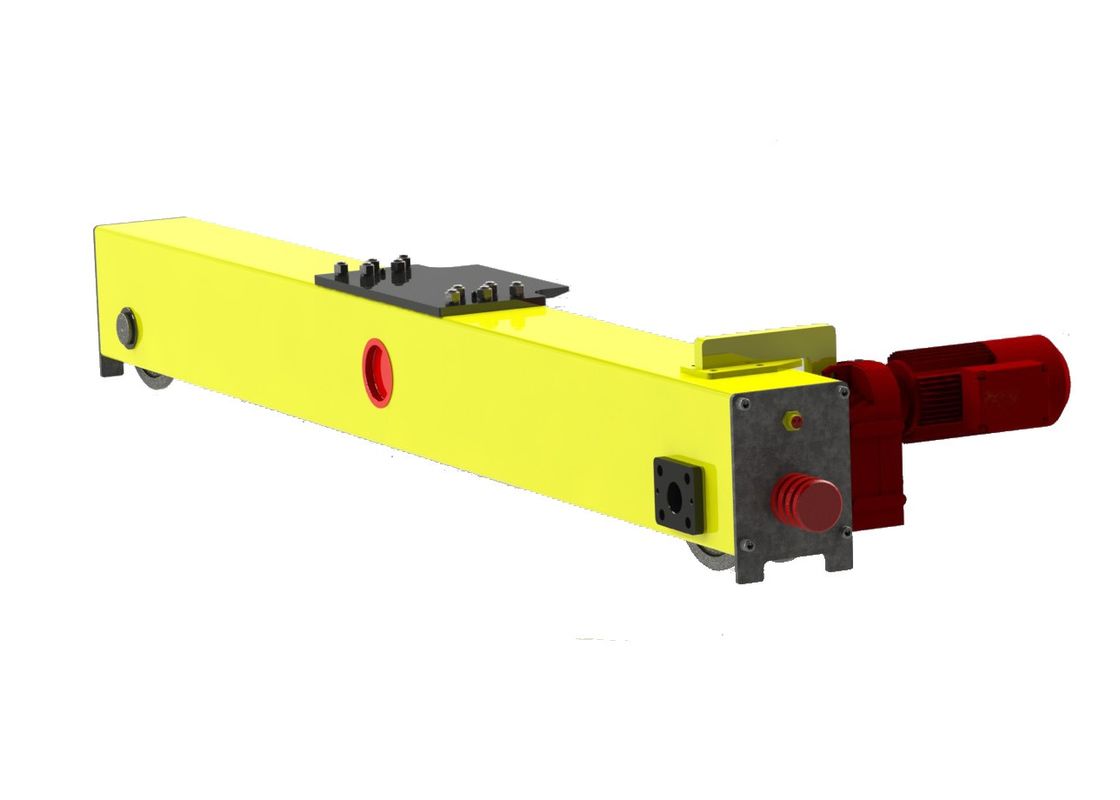

1ton to 20ton High Quality Overhead Crane End Carriages
Brief Introduction

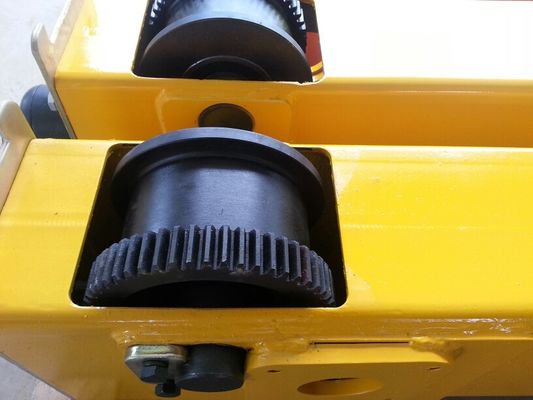

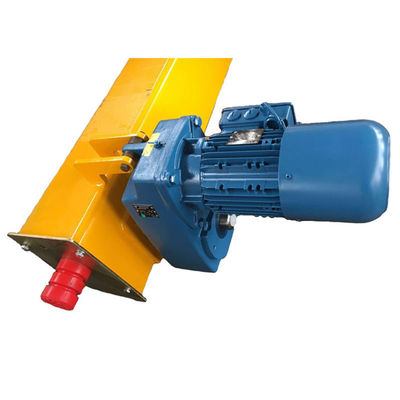

End carriage made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion
wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.
It only need to weld the main beam and end beam after correction. Making crane manufacturing,installation and maintenance
very easily.European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.
Main Features:
1. Low noise, commodious cabin and good view .
2. Safe and reliable traveling .
3. Reasonable structure .
5. Smooth starting and stopping .
6. Saves electricity specifications .
7. Convenient maintenance .
8. Excellent exchangeability for parts .
9. Overload limiter , Limit switch (lifting and traveling) , Interlock protection device ,
Buffer ,Overhaul cage ,Rail clear plate ,Protective cover ,Bus bar preventer plate ,Anticollision
device ,Main isolating switch ,Emergency stop system ,Motor overload protection etc.
Technical parameters
| Type | Crane spec. | Rectangular Steel tube |
Wheel size | Motor power (20m/min) |
Motor power (30m/min) |
S1 (mm) |
S2 (mm) |
W1 (mm) |
W2 (mm) |
| EUS90-15 | 1.6t-7.5m | 150*150*6 | U90*60 | FA27-0.25KW | FA27-0.37KW | 1500 | 1300 | 400 | 550 |
| EUS90-20 | 1.6t-11.5m | 2000 | 1800 | 400 | 550 | ||||
| EUS90-25 | 1.6t-16.5m | 2500 | 2300 | 400 | 550 | ||||
| EUS90-30 | 1.6t-22.5m | 3000 | 2800 | 400 | 550 | ||||
| EUS125-15 | 3.2t-7.5m | 150*200*8 | U125*60 | FA27-0.37KW | FA27-0.55KW | 1500 | 1300 | 400 | 550 |
| EUS125-20 | 3.2t-11.5m | 2000 | 1800 | 400 | 550 | ||||
| EUS125-25 | 3.2t-16.5m | 2500 | 2300 | 400 | 550 | ||||
| EUS125-30 | 3.2t-22.5m | 3000 | 2800 | 500 | 650 | ||||
| EUS125-35 | 3.2t-28.5m | 3500 | 3300 | 600 | 750 | ||||
| EUS160-15 | 6.3t-7.5m | 150*250*8 | U160*70 | FA37-0.55KW | FA37-0.75KW | 1500 | 1200 | 400 | 550 |
| EUS160-20 | 6.3t-11.5m | 2000 | 1700 | 400 | 550 | ||||
| EUS160-25 | 6.3t-16.5m | 2500 | 2200 | 400 | 550 | ||||
| EUS160-30 | 6.3t-22.5m | 3000 | 2700 | 500 | 650 | ||||
| EUS160-35 | 6.3t-28.5m | 3500 | 3200 | 600 | 750 | ||||
| EUS200-20 | 12.5t-11.5m | 200*250*8 | U200*70 | FA47-0.75KW | FA47-1.1KW | 2000 | 1700 | 500 | 650 |
| EUS200-25 | 12.5t-16.5m | 2500 | 2200 | 500 | 650 | ||||
| EUS200-30 | 12.5t-22.5m | FA47-1.1KW | 3000 | 2700 | 600 | 750 | |||
| EUS200-35 | 12.5t-28.5m | 3500 | 3200 | 700 | 850 | ||||
| EUS250-20 | 16t/20t-11.5m | 200*300*8 | U250*80 | FA57-1.1KW | FA57-1.5KW | 2000 | 1600 | 500 | 650 |
| EUS250-25 | 16t/20t-16.5m | 2500 | 2100 | 600 | 750 | ||||
| EUS250-30 | 16t/20t-22.5m | FA57-1.5KW | 3000 | 2600 | 700 | 850 | |||
| EUS250-35 | 16t/20t-28.5m | 3500 | 3100 | 700 | 850 |
Product details:
