30kw 80T Lightweight Lifting Electric Wire Rope Winch

China Chongqing Shanyan Crane Machinery Co., Ltd. certification
China Chongqing Shanyan Crane Machinery Co., Ltd. certification
Nice quality

—— George

Professional and delivery on time, treat me good.

—— Patrick

Works perfectly !

—— Khalid

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Kent Rosal

Please develop more nice hoist and with better prices, so we can sell your hoist to more clients and gain larger markets. Thank you.

—— Khalid Abu Hasera

Mr. Sen is a nice man, he help me a lot, thanks for you give us quickly respone and save us many times. good job!

—— Sivakumar veerappa nainar

I'm Online Chat Now

30kw 80T Lightweight Lifting Electric Wire Rope Winch

30kw 80T Lightweight Lifting Electric Wire Rope Winch
30kw 80T Lightweight Lifting Electric Wire Rope Winch 30kw 80T Lightweight Lifting Electric Wire Rope Winch 30kw 80T Lightweight Lifting Electric Wire Rope Winch 30kw 80T Lightweight Lifting Electric Wire Rope Winch

Large Image :  30kw 80T Lightweight Lifting Electric Wire Rope Winch

Product Details:
Place of Origin: CHINA
Brand Name: JCYC
Certification: CE & ISO
Model Number: JM
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden cases
Delivery Time: 15 to 30 working days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: Electric Wire Rope Winch Brand: JCYC/OEM
Application: Material Lifting Capacity: 1 To 80T
Rope Length: 100m To 500m Or At Your Request Color: As Per Your Request
High Light:

80T Electric Wire Rope Winch

,

500m Electric Wire Rope Winch

,

30kw Electric Wire Rope Winch

Light Weight Industrial Material Lifting Electric Wire Rope Winch JM Model





Overview:



JM/JK electric winch is a cost-effective option to lift and pull heavy objects and materials in building construction, bridge construction, road construction, industrial, mine and marine. It provides easy load control using a push-button control box or remote control (a control pendant or wireless remote control). These winches come in a range of styles and configurations to accommodate your unique applications. We can also custom design and build the winch to your special requirements.



Details:



JM/JK electric winch is a small and lightweight winch machine with simple structure. It mainly consists of electric motor, rope, drum, transmission system, brake and control system.

Electric motor – for general engineering winches, IP44 protected electric motor is used.

Rope – there are two main factors involving in the rope capacity, length and diameter. Wire rope and synthetic rope are available for you to choose from.

Drum – it is a cylindrical device designed to store the rope as well as wind the rope in and out during winching operation.

Transmission system – different types of transmission system are available, including worm gearbox, spur gearbox and planetary gearbox. The selection of winch transmission is determined by your required efficiency and how much torque is going to be transmitted.

Brake – the winch can be delivered with motor brake, transmission brake and drum brake.

Control system – the winch is normally equipped with a control box that comprises up/down push buttons and emergency stop. Remote control is available for a much safer winching operation.



Technical Parameters:



Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope dia. (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JK0.5 500 20/30 Φ7.7 50/120 Φ140*300 2.2
JK1 1000 20/30 Φ9.3 70/120 Φ165*415 5.5/7.5
JK1.5 1500 20/30 Φ12.5 80/180 Φ219*450 11/15
JK2 2000 20/30 Φ12.5 80/180 Φ219*480 11/15
JK3 3000 20/30 Φ15.5 100/200 Φ219*525 15/18.5
JK5 5000 20/30 Φ21.5 100/200 Φ325*620 22/30
JK8 8000 20 Φ26 300 Φ500*900 30
JK10 10000 19 Φ30 450 Φ550*1000

45



Model Cable rated pull(kg) Cable rated speed(m/min) Wire rope (Φmm) Wire rope length(m) Drum(mm) Dia(Φ) Motor power(kw)
JM0.5 500 15 Φ7.7 50/120 Φ140*300 2.2
JM1 1000 15 Φ9.3 70/120 Φ165*415 5.5
JM1.5 1500 15 Φ12.5 80/180 Φ219*450 7.5
JM2 2000 15 Φ12.5 80/180 Φ219*480 7.5
JM3 3000 15 Φ15.5 100/200 Φ219*525 11
JM5 5000 9 Φ19.5 250 Φ325*620 11
JM8 8000 9 Φ26 300 Φ406*808 15
JM10 10000 9 Φ30 350 Φ406*900 22
JM16 16000 9 Φ38 400 Φ550*1000 37
JM20 20000 9 Φ42 450 Φ650*1300 45
JM30 30000 9 Φ54 450 Φ900*1500 63

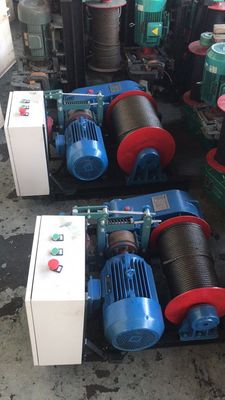

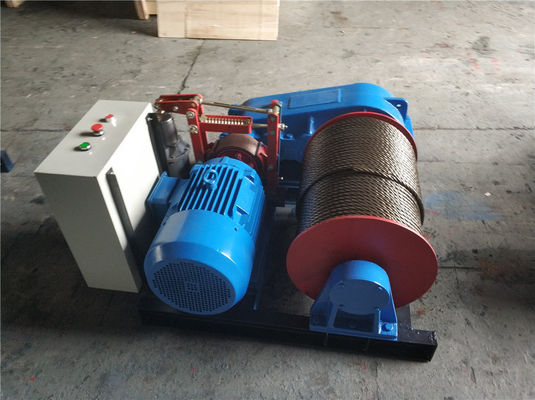

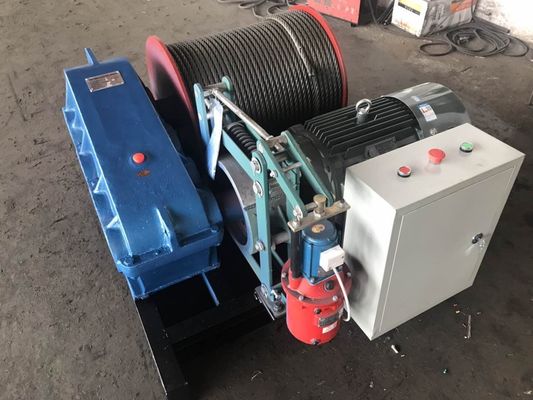

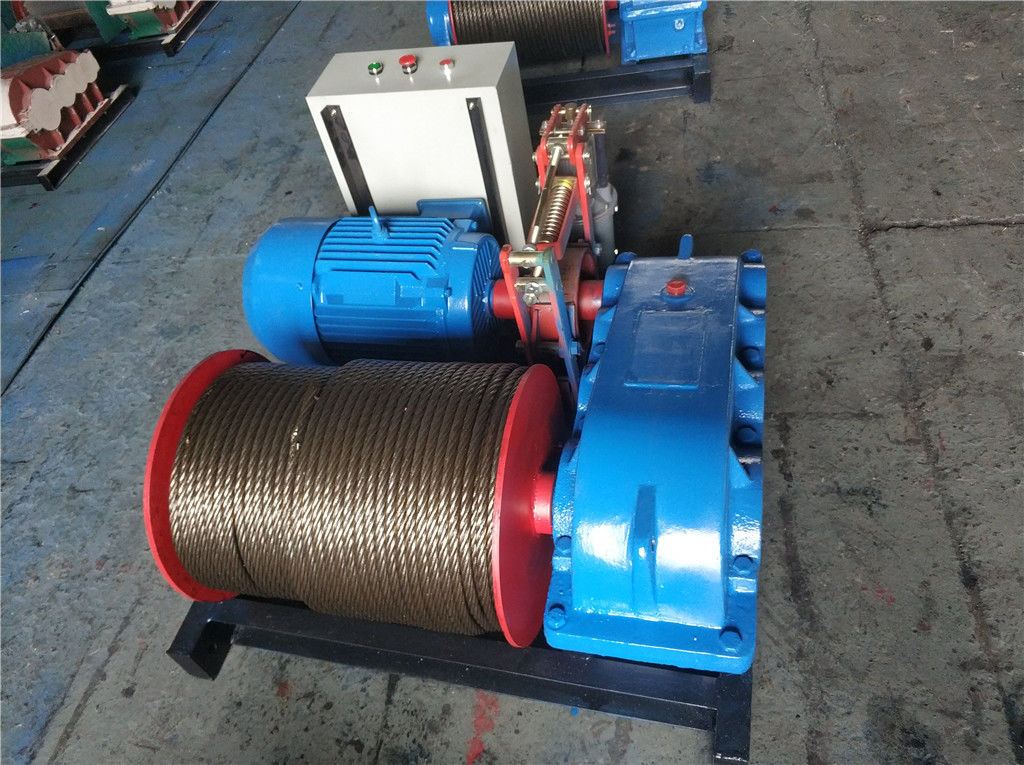

Product show:



30kw 80T Lightweight Lifting Electric Wire Rope Winch 0



30kw 80T Lightweight Lifting Electric Wire Rope Winch 1
