1 Ton Single Sheave Pulley Block Snatch Lifting Tools Block

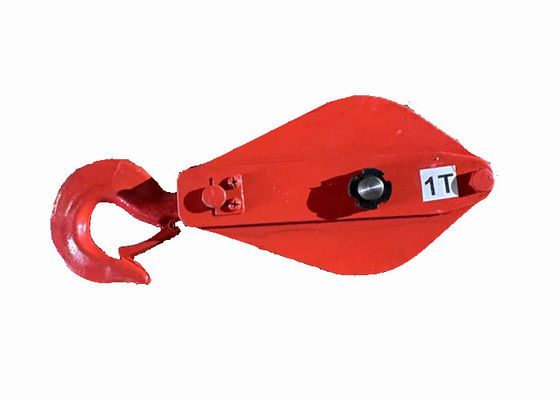

Large Image : 1 Ton Single Sheave Pulley Block Snatch Lifting Tools Block

Product Details:

Place of Origin:	China
Brand Name:	JCYC
Certification:	CE, ISO
Model Number:	HQGK

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard export cases
Delivery Time:	15 to 20 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 pieces per month

Contact Now

Detailed Product Description

Product Name:	1 Ton Single Sheave Pulley Block Snatch Lifting Tools Block	Short Name:	Pulley Block, Snatch Block
Type:	Single Wheel Hook Type	Material:	Forged Steel
Capacity:	1 Ton	Color:	Red, Can Customized
High Light:	1 Ton Snatch Lifting Tools Block , 1 Ton Single Sheave Pulley Block

1 Ton Single Sheave Pulley Block Snatch Lifting Tools Block

Brief Introduction:

Snatch pulley block is one kind of important lifting tools. It has convenient and simple structure. Widely used in lifting material areas. It is divided into single wheel, double wheel, three wheel, four wheel and more wheels. Max capacity can reach 320t. Which at the same time can assure you the competitive price as well as good quality.

Technology advantages:

1,All key parts are forged with high-strength alloy steel and heat treated.

2,4:1 safe factor,CE certificate and meets EN13157 ,and ASME30.26

3,Equipped with carbon steel sheave and grease nipple,convenient for operating and repairing,and also extending service life.

4,Permanent product batch no.block can be tracking easily.

5,Equipped with forged steel sheave or hot-rolled steel sheave.

6,Customized according to the clients'requirements.

Product parameters:

Single Wheel Hook Type

Model	Rated capacity(t)	Test load(kn)	Sheave Dia.(mm)	For wire dia.(mm)	Weight(kg)
HQGK1-0.5	0.5	8	71	6.2-7.7	1.6
HQGK1-1	1.0	16	85	7.7-11	3.1
HQGK1-2	2.0	32	112	11-14	6.1
HQGK1-3.2	3.2	51.2	132	12.5-15.5	10
HQGK1-5	5	80	160	15.5-18.5	17
HQGK1-8	8	128	210	20-23	33
HQGK1-10	10	160	240	23-24.5	43
HQGK1-16	16	224	315	28-31	100
HQGK1-20	20	280	355	31-35	133

Double Wheel Hook Type

Model	Rated capacity(t)	Test load(kn)	Sheave Dia.(mm)	For wire dia.(mm)	Weight(kg)
HQGK2-1	1	16	71	6.2-7.7	3.3
HQGK2-2	2	32	85	7.7-11	6.5
HQGK2-3.2	3.2	51.2	112	11-14	11
HQGK2-5	5	80	132	12.5-15.5	18.5
HQGK2-8	8	128	160	15.5-18.5	40
HQGK2-10	10	160	210	20-23	47
HQGK2-16	16	224	240	23-24.5	75
HQGK2-20	20	280	315	28-31	125
HQGK2-32	32	448	355	31-35	200

Triple Wheel Hook Type

Model	Rated capacity(t)	Test load(kn)	Sheave Dia.(mm)	For wire dia.(mm)	Weight(kg)
HQGK3-3.2	3.2	51.2	85	7.7-11	10
HQGK3-5	5	80	112	11-14	17.5
HQGK3-8	8	128	132	12.5-15.5	33
HQGK3-10	10	160	160	15.5-18.5	53
HQGK3-16	16	224	190	17-20	70
HQGK3-20	20	280	210	20-23	125
HQGK3-32	32	448	280	26-28	140
HQGK3-50	50	700	355	31-35	300
