Product Details:
Payment & Shipping Terms:
|
| Product: | EOT Crane End Carriage | Motor: | Three-in-one Motor |
|---|---|---|---|
| Power Supply: | 220V To 440V 3P 50/60Hz | Capacity: | 1ton To 20ton |
| Crane Beam: | Customised At Request | Control: | Air Operation+Ground Operation |
| Color: | As Per Your Request | Span: | As Per Your Request |
| High Light: | CE Overhead Crane End Carriage,ISO9001 EOT Crane End Carriage,3 in 1 Motor Crane End Carriage |
||
EOT Crane Overhead Crane End Carriage of Crane With Three-in-one Motor
Overview
The end carriages is an important component installed at both ends of the main beam of the overhead crane to support the bridge in the sky.
The end carriage includes two parts, a wheel and an end beam frame. The end beam frame is composed of an upper cover plate, a web plate, and a lower cover plate. The connection plate and the angle steel are fastened with bolts. This kind end carraige use three-in-one famous brand motor for power supply to ensure it's smooth and stability moving above overhead crane.
Advantages
Technical parameters
| Type | Crane spec. | Rectangular Steel tube |
Wheel size | Motor power (20m/min) |
Motor power (30m/min) |
S1 (mm) |
S2 (mm) |
W1 (mm) |
W2 (mm) |
| EUS90-15 | 1.6t-7.5m | 150*150*6 | U90*60 | FA27-0.25KW | FA27-0.37KW | 1500 | 1300 | 400 | 550 |
| EUS90-20 | 1.6t-11.5m | 2000 | 1800 | 400 | 550 | ||||
| EUS90-25 | 1.6t-16.5m | 2500 | 2300 | 400 | 550 | ||||
| EUS90-30 | 1.6t-22.5m | 3000 | 2800 | 400 | 550 | ||||
| EUS125-15 | 3.2t-7.5m | 150*200*8 | U125*60 | FA27-0.37KW | FA27-0.55KW | 1500 | 1300 | 400 | 550 |
| EUS125-20 | 3.2t-11.5m | 2000 | 1800 | 400 | 550 | ||||
| EUS125-25 | 3.2t-16.5m | 2500 | 2300 | 400 | 550 | ||||
| EUS125-30 | 3.2t-22.5m | 3000 | 2800 | 500 | 650 | ||||
| EUS125-35 | 3.2t-28.5m | 3500 | 3300 | 600 | 750 | ||||
| EUS160-15 | 6.3t-7.5m | 150*250*8 | U160*70 | FA37-0.55KW | FA37-0.75KW | 1500 | 1200 | 400 | 550 |
| EUS160-20 | 6.3t-11.5m | 2000 | 1700 | 400 | 550 | ||||
| EUS160-25 | 6.3t-16.5m | 2500 | 2200 | 400 | 550 | ||||
| EUS160-30 | 6.3t-22.5m | 3000 | 2700 | 500 | 650 | ||||
| EUS160-35 | 6.3t-28.5m | 3500 | 3200 | 600 | 750 | ||||
| EUS200-20 | 12.5t-11.5m | 200*250*8 | U200*70 | FA47-0.75KW | FA47-1.1KW | 2000 | 1700 | 500 | 650 |
| EUS200-25 | 12.5t-16.5m | 2500 | 2200 | 500 | 650 | ||||
| EUS200-30 | 12.5t-22.5m | FA47-1.1KW | 3000 | 2700 | 600 | 750 | |||
| EUS200-35 | 12.5t-28.5m | 3500 | 3200 | 700 | 850 | ||||
| EUS250-20 | 16t/20t-11.5m | 200*300*8 | U250*80 | FA57-1.1KW | FA57-1.5KW | 2000 | 1600 | 500 | 650 |
| EUS250-25 | 16t/20t-16.5m | 2500 | 2100 | 600 | 750 | ||||
| EUS250-30 | 16t/20t-22.5m | FA57-1.5KW | 3000 | 2600 | 700 | 850 | |||
| EUS250-35 | 16t/20t-28.5m | 3500 | 3100 | 700 | 850 |

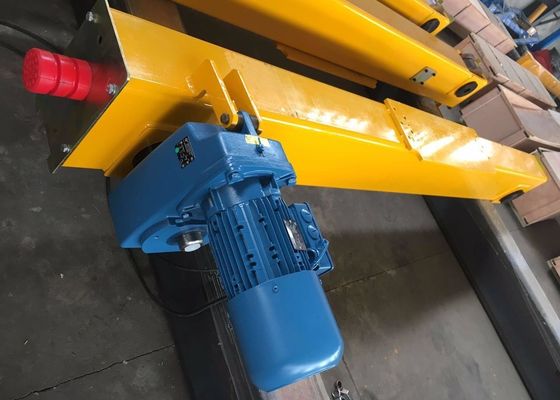

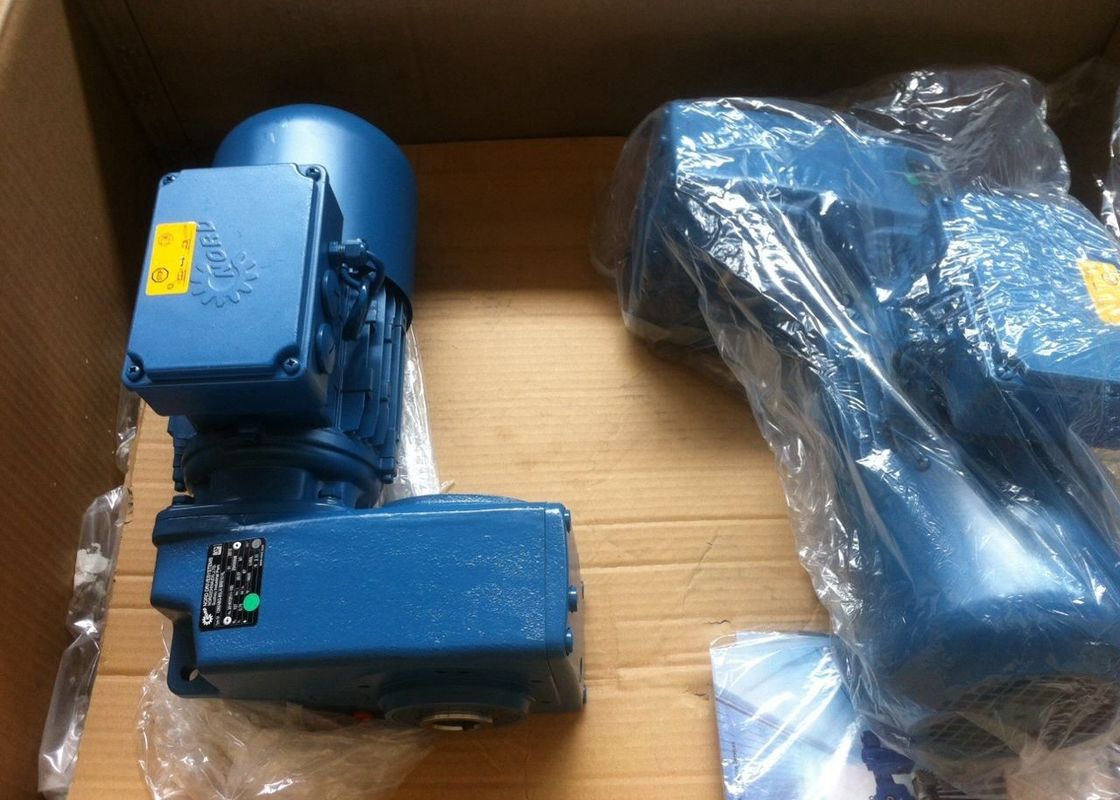

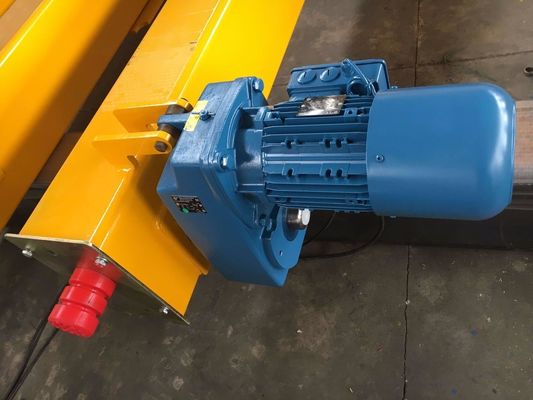

Product show:
