| Product Name: | Stainless Steel Hoist Hand Chain Block | Material: | 304/316 Stainless Steel |
|---|---|---|---|
| Capacity: | 0.5t To 20t | Standard Lift: | 3m |
| Advantage: | Rust And Corrosion Protection | Application: | Widely |
| High Light: | 304SS Hoist Hand Chain Block,SS316 Hoist Hand Chain Block |
||

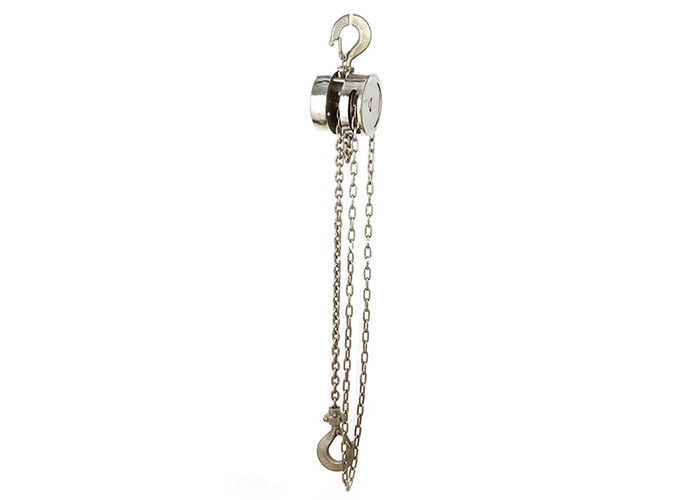

Stainless Steel Hoist Hand Chain Block
Product overview:
Stainless steel chain hoist has the characteristics of safe and reliable, easy maintenance, high mechanical efficiency, small bracelet tension, light weight and easy to carry, beautiful appearance and small size, and durable, stainless steel chain hoist is suitable for factories, mines, construction sites, docks , Docks, warehouses, etc. are used to install machines and lift goods, especially for open-air and power-free operations, and show superiority.
Parameters:
| Model | HSZ-0.5A | HSZ-1A | HSZ-1.5A | HSZ-2A | HSZ-3A | HSZ-5A | HSZ-7.5A | HSZ-10A | HSZ-15A | HSZ-20A | HSZ-30A | HSZ-50A | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | 50 | |
| Standard lift height(m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test load(KN) | 6.3 | 12.5 | 18.8 | 25 | 37.5 | 62.5 | 94 | 125 | 187.5 | 250 | 375 | 625 | |
| Rated pull with full load(N) | 231 | 309 | 320 | 320 | 360 | 414 | 420 | 420 | 430 | 420*2 | 450*2 | 450*2 | |
| No. of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 4 | 6 | 8 | 12 | 22 | |
| Dia. of load chain | 5 | 6 | 7.1 | 8 | 7.1 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Dimensions(mm) | A | 115 | 143 | 148 | 152 | 148 | 181 | 181 | 181 | 181 | 192 | 330 | 410 |
| B | 136 | 156 | 182 | 198 | 182 | 266 | 365 | 365 | 485 | 630 | 670 | 965 | |
| C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 798 | 920 | 890 | 1000 | 1950 | |
| D | 25 | 27 | 34 | 36 | 38 | 48 | 57 | 57 | 84 | 84 | 84 | 130 | |
| Net weight(kg) | 8 | 11 | 17 | 18 | 22 | 45 | 52 | 70 | 125 | 162 | 228 | 1085 | |
| Extra weight per meter of extra lift(kg) | 1.5 | 1.8 | 2.1 | 2.3 | 4.2 | 5.6 | 7.3 | 9.8 | 14.2 | 19.6 | 28.3 | 50 | |
Advantages:
