3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear

3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear

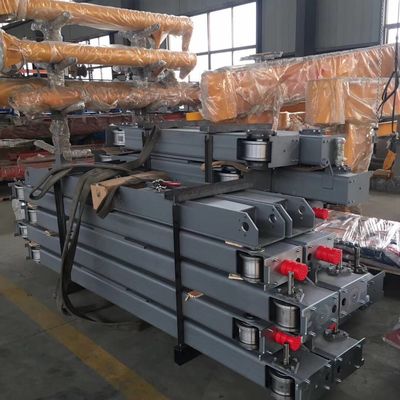

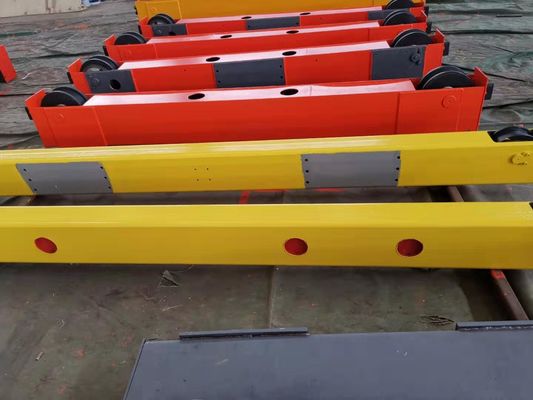

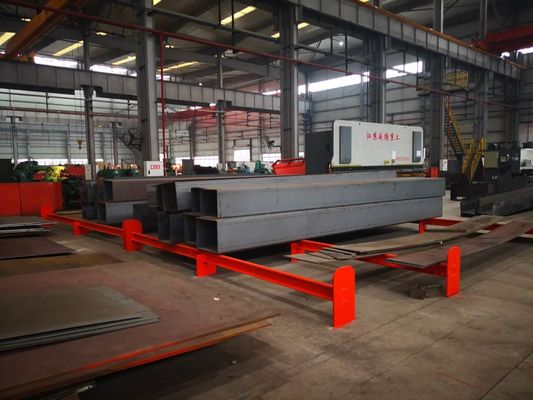

3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear 3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear 3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear 3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear 3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear 3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear

Large Image :  3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear

Product Details:
Place of Origin: China
Brand Name: JCYC/OEM
Certification: CE & ISO9001
Model Number: GL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 15 to 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 to 200 sets per week
Detailed Product Description
Product: 3 Ton End Carriage For Single Girder Bridge Cranes With Open Gear Type: Open Gear
Motor: Three-in-one Motor Power Supply: 220V To 690V 3P 50/60Hz
Capacity: 1ton To 20ton Crane Beam: Customised At Request
Control: Air Operation+Ground Operation
High Light:

EOT Crane End Carriage

,

Three In One Motor Crane End Carriage

,

stability moving Crane End Carriage

3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear





Product overview



The end carriages is an important component installed at both ends of the main beam of the overhead crane to support the bridge in the sky.
The end carriage includes two parts, a wheel and an end beam frame. The end beam frame is composed of an upper cover plate, a web plate, and a lower cover plate. The connection plate and the angle steel are fastened with bolts. This kind end carraige use three-in-one famous brand motor for power supply to ensure it's smooth and stability moving above overhead crane.

Advantages





optimum travel characteristics

• smooth starting thanks to matching drive solutions

• high operating reliability

• easy assembly and accessibility

• for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.



Technical parameters



Model Crane Rectangular
Steel tube
Wheel Size Motor power S1
(mm)
S2
(mm)
W1
(mm)
W2
(mm)
GL125-15 1t-7.5m 150*150*6 W125*60 0.3KW*2 1500 1300 400 500
GL125-20 1t-11.5m 2000 1800 400 500
GL125-25 1t-16.5m 2500 2300 400 500
GL160-15 2t/3t-7.5m 150*200*8 W160*70 0.4KW*2 1500 1200 400 500
GL160-20 2t/3t-11.5m 2000 1700 400 500
GL160-25 2t/3t-16.5m 2500 2200 400 500
GL160-30 2t/3t-22.5m 3000 2700 500 600
GL160-35 2t/3t-28.5m 3500 3200 600 700
GL200-20 5t-11.5m 150*250*8 W200*70 0.4KW*2 2000 1700 400 500
GL200-25 5t-16.5m 2500 2200 400 500
GL200-30 5t-22.5m 0.75KW*2 3000 2700 500 600
GL200-35 5t-28.5m 3500 3200 600 700
GL250-20 10t-11.5m 200*250*8 W250*80 0.75KW*2 2000 1600 400 500
GL250-25A 10t-16.5m 2500 2100 500 600
GL250-30A 10t-22.5m 1.1KW*2 3000 2600 500 600
GL250-35A 10t-28.5m 3500 3100 700 800
GL250-25B 16t-16.5m 200*300*8 W250*80 1.1KW*2 2500 2100 600 700
GL250-30B 16t-22.5m 3000 2600 700 800
GL250-35B 16t-28.5m 1.5KW*2 3500 3100 700 800
GL315-30 20t-16.5m 200*400*8 W315*90 1.5KW*2 3000 2500 700 800
GL315-35 20t-22.5m 3500 3000 700 800


Product show:

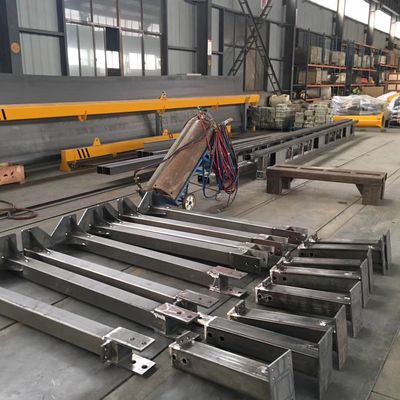

3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear 0

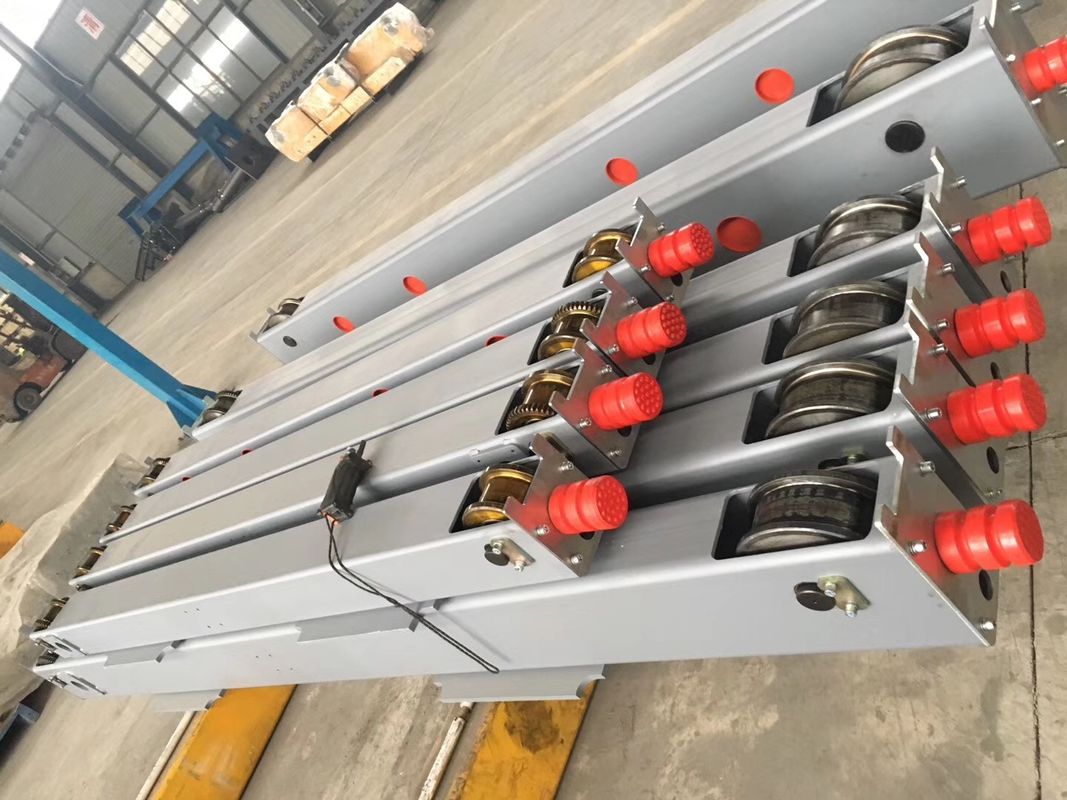

3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear 1

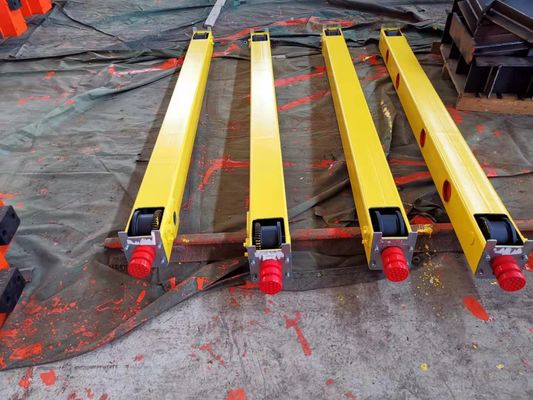

3 Ton End Carriage for Single Girder Bridge Cranes with Open Gear 2
