Product Details:
Payment & Shipping Terms:
|
| Product: | European Type Single Girder Crane End Carriage | Motor: | Nord Brand Motor |
|---|---|---|---|
| Voltage: | 220V To 440V | Capacity: | Up To 20ton |
| Crane Span: | 7.5m-28.5m | Steel Structure: | JCYC Own Brand |
| High Light: | CE Single Girder Crane End Carriage,European Type Crane End Carriage |
||
European Type Single Girder Crane End Carriage
Brief Introduction:
Our end carriages are high quality components, designed for reliability and economy. The steel structure of the end carriage is a torsion-resistant box girder, prepared to be connected to the crane girder. Precise machining and exact alignment of the crane girder mounting plates ensure unsurpassed travel characteristics and long life.
Advantages:
1, Light-weight.
2, Modular design, flexible assembly.
3, Spheroidal graphite cast or forged steel wheels.
4, Wide range of diameter.
5, Variable frequency drive, smooth running.
Description:
| Model | Crane | Rectangular Steel tube |
Wheel size | Motor power (20m/min) |
Motor power (30m/min) |
S1 (mm) |
S2 (mm) |
W1 (mm) |
W2 (mm) |
| EUS90-15 | 1.6t-7.5m | 150*150*6 | U90*60 | FA27-0.25KW | FA27-0.37KW | 1500 | 1300 | 400 | 550 |
| EUS90-20 | 1.6t-11.5m | 2000 | 1800 | 400 | 550 | ||||
| EUS90-25 | 1.6t-16.5m | 2500 | 2300 | 400 | 550 | ||||
| EUS90-30 | 1.6t-22.5m | 3000 | 2800 | 400 | 550 | ||||
| EUS125-15 | 3.2t-7.5m | 150*200*8 | U125*60 | FA27-0.37KW | FA27-0.55KW | 1500 | 1300 | 400 | 550 |
| EUS125-20 | 3.2t-11.5m | 2000 | 1800 | 400 | 550 | ||||
| EUS125-25 | 3.2t-16.5m | 2500 | 2300 | 400 | 550 | ||||
| EUS125-30 | 3.2t-22.5m | 3000 | 2800 | 500 | 650 | ||||
| EUS125-35 | 3.2t-28.5m | 3500 | 3300 | 600 | 750 | ||||
| EUS160-15 | 6.3t-7.5m | 150*250*8 | U160*70 | FA37-0.55KW | FA37-0.75KW | 1500 | 1200 | 400 | 550 |
| EUS160-20 | 6.3t-11.5m | 2000 | 1700 | 400 | 550 | ||||
| EUS160-25 | 6.3t-16.5m | 2500 | 2200 | 400 | 550 | ||||
| EUS160-30 | 6.3t-22.5m | 3000 | 2700 | 500 | 650 | ||||
| EUS160-35 | 6.3t-28.5m | 3500 | 3200 | 600 | 750 | ||||
| EUS200-20 | 12.5t-11.5m | 200*250*8 | U200*70 | FA47-0.75KW | FA47-1.1KW | 2000 | 1700 | 500 | 650 |
| EUS200-25 | 12.5t-16.5m | 2500 | 2200 | 500 | 650 | ||||
| EUS200-30 | 12.5t-22.5m | FA47-1.1KW | 3000 | 2700 | 600 | 750 | |||
| EUS200-35 | 12.5t-28.5m | 3500 | 3200 | 700 | 850 | ||||
| EUS250-20 | 16t/20t-11.5m | 200*300*8 | U250*80 | FA57-1.1KW | FA57-1.5KW | 2000 | 1600 | 500 | 650 |
| EUS250-25 | 16t/20t-16.5m | 2500 | 2100 | 600 | 750 | ||||
| EUS250-30 | 16t/20t-22.5m | FA57-1.5KW | 3000 | 2600 | 700 | 850 | |||
| EUS250-35 | 16t/20t-28.5m | 3500 | 3100 | 700 | 850 |

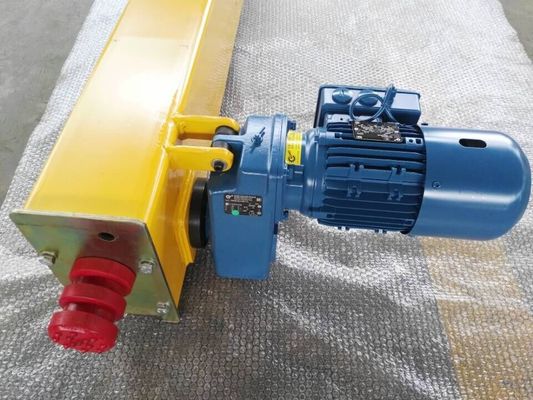

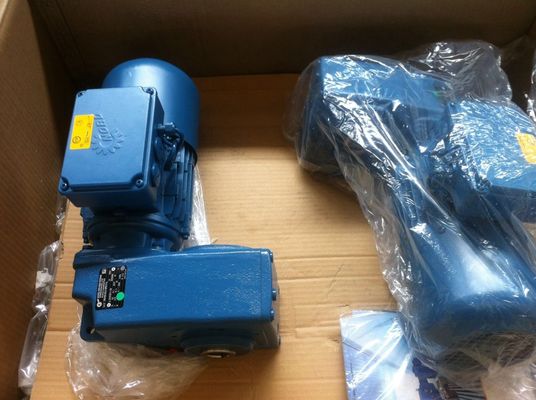

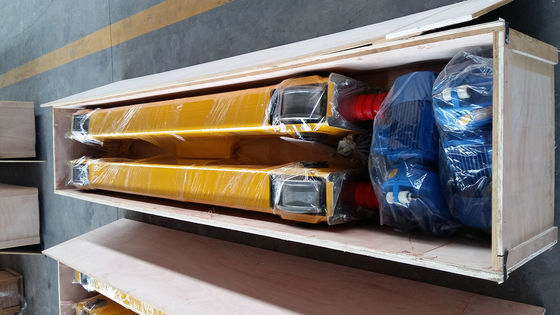

Product show:
