| Product Name: | 1 Ton- 30 Ton Large Rope Capacity Construction Electric Wire Rope Winch | Brand: | JCYC |
|---|---|---|---|
| Application: | Construction | Capacity: | 1 T To 30T |
| Lifting Height: | As Per Your Request | Color: | As Per Your Request |
| High Light: | Construction Electric Wire Rope Winch,30 Ton Electric Wire Rope Winch,ISO Electric Wire Rope Winch |
||

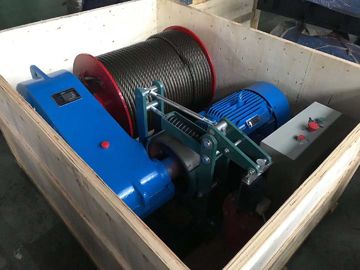

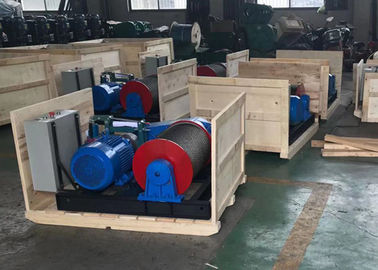

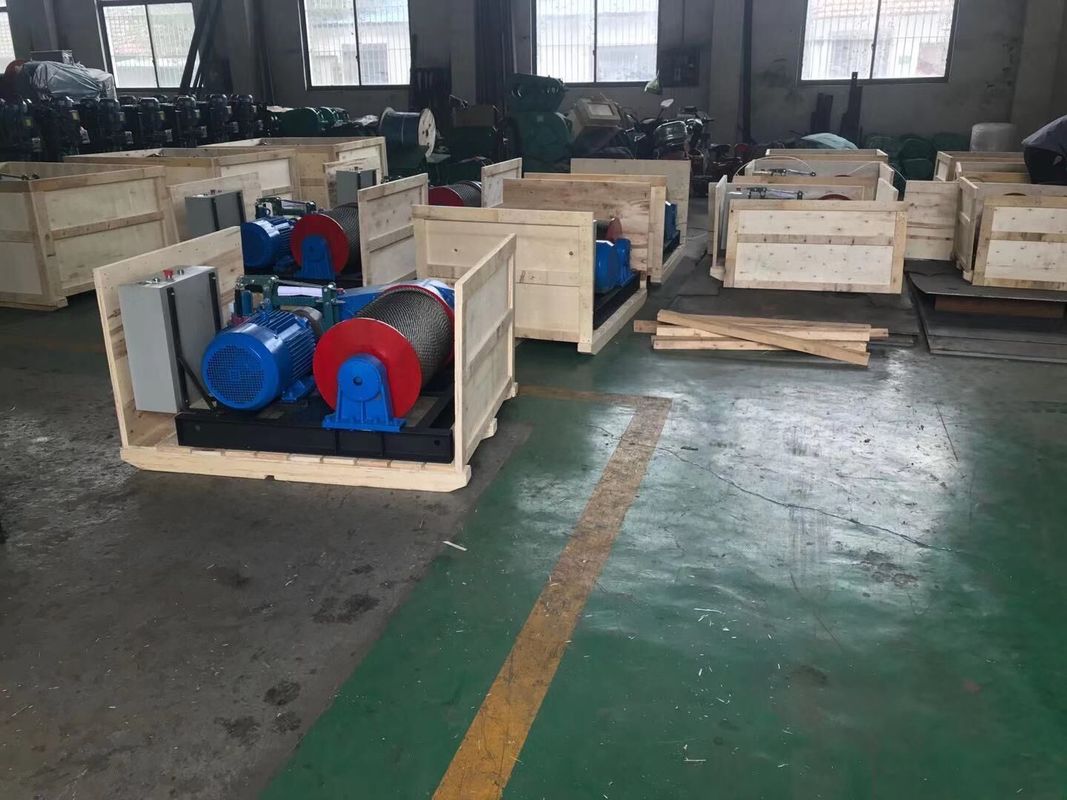

1 Ton- 30 Ton Large Rope Capacity Construction Electric Wire Rope Winch Machine
Description:
In the industry, construction electric wire rope winch is the most commonly used , widely for hoisting and dragging the weight materials, The wire rope is arranged in orderly, which can divided into construction winch, marine winch, anchor winch, mine winch, building winch, cable winch, etc. According to the speeds and structures, it contains JM, JK etc. All the designing are required of International Crane Standard.
Technical Parameters:
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope dia. (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JK0.5 | 500 | 20/30 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JK1 | 1000 | 20/30 | Φ9.3 | 70/120 | Φ165*415 | 5.5/7.5 |
| JK1.5 | 1500 | 20/30 | Φ12.5 | 80/180 | Φ219*450 | 11/15 |
| JK2 | 2000 | 20/30 | Φ12.5 | 80/180 | Φ219*480 | 11/15 |
| JK3 | 3000 | 20/30 | Φ15.5 | 100/200 | Φ219*525 | 15/18.5 |
| JK5 | 5000 | 20/30 | Φ21.5 | 100/200 | Φ325*620 | 22/30 |
| JK8 | 8000 | 20 | Φ26 | 300 | Φ500*900 | 30 |
| JK10 | 10000 | 19 | Φ30 | 450 | Φ550*1000 |
45 |
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JM0.5 | 500 | 15 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JM1 | 1000 | 15 | Φ9.3 | 70/120 | Φ165*415 | 5.5 |
| JM1.5 | 1500 | 15 | Φ12.5 | 80/180 | Φ219*450 | 7.5 |
| JM2 | 2000 | 15 | Φ12.5 | 80/180 | Φ219*480 | 7.5 |
| JM3 | 3000 | 15 | Φ15.5 | 100/200 | Φ219*525 | 11 |
| JM5 | 5000 | 9 | Φ19.5 | 250 | Φ325*620 | 11 |
| JM8 | 8000 | 9 | Φ26 | 300 | Φ406*808 | 15 |
| JM10 | 10000 | 9 | Φ30 | 350 | Φ406*900 | 22 |
| JM16 | 16000 | 9 | Φ38 | 400 | Φ550*1000 | 37 |
| JM20 | 20000 | 9 | Φ42 | 450 | Φ650*1300 | 45 |
| JM30 | 30000 | 9 | Φ54 | 450 | Φ900*1500 | 63 |
