Alloy Steel Hardware Rings G100 Oblong Master Link Shackle G209 Used in Construction of Slings

Alloy Steel Hardware Rings G100  Oblong Master Link  Shackle G209 Used in Construction of Slings
Alloy Steel Hardware Rings G100  Oblong Master Link  Shackle G209 Used in Construction of Slings Alloy Steel Hardware Rings G100  Oblong Master Link  Shackle G209 Used in Construction of Slings Alloy Steel Hardware Rings G100  Oblong Master Link  Shackle G209 Used in Construction of Slings Alloy Steel Hardware Rings G100  Oblong Master Link  Shackle G209 Used in Construction of Slings

Large Image :  Alloy Steel Hardware Rings G100 Oblong Master Link Shackle G209 Used in Construction of Slings

Product Details:
Place of Origin: CHINA
Brand Name: JCYC
Certification: CE
Model Number: SL-R1025
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15 to 20 working days
Payment Terms: L/C, T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 pcs / week
Detailed Product Description
Product Name: G100 Oblong Master Link Max. Cap: 40 T
Min Cap: 2.3 T Material: High Strength Forged Carbon Steel Die Forging
Chain Sling: 1 Leg Sling Or 2 Leg Slings Breaking Load Limit: 4 Times

Alloy Steel Hardware Rings G100 Oblong Master Link Shackle G209 Used in Construction of Slings





G100 LINKS, RINGS

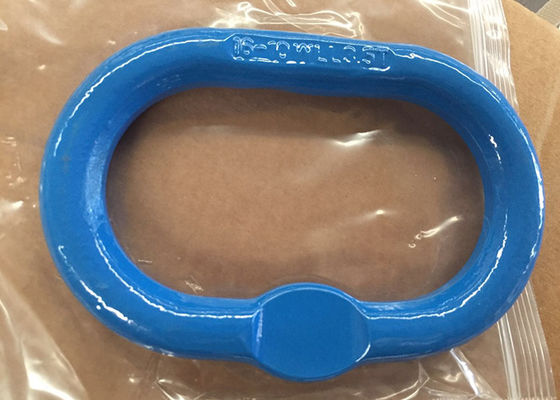

Oblong master link are the optimum design for use in the construction of slings. The oval design is an optimum configuration for use with crane hooks since the depth of a hook is normally greater than the width.
Oblong master links are typically used at the end of rigging assemblies, and most often, they are used on one end only. They are called master links because in a traditional rigging assembly, the master link is on top, connecting directly to the crane hook while the rest of the sling hangs below it. It’s important to note that these master links are made oversized to accommodate large crane hooks and other connection points. Use them with chain slings, wire rope slings and even synthetic web slings.



Advantages



* Forged super alloy steel-quenched and tempered.

* Suitable for G100 chain.

* 25% stronger than G80.

* Individually proof test at 2.5 times working load limit.

* Fatiguestested at 1.5 times working load limit for 20000 cycles.

* 100% magnaflux crack detection.

* Ultimate load is 4 times the working load limit.



Parameters



Alloy Steel Hardware Rings G100  Oblong Master Link  Shackle G209 Used in Construction of Slings 0

Item no. G100 chain(mm) Weight(kg) WLL(T) Dimension(mm)
1 leg sling 2 leg sling A B D
SL-R1025-2.3 6+7 6 0.34 2.3 110 60 13
SL-R1025-3.5 8 7 0.53 3.5 110 60 16
SL-R1025-5 10 8 0.86 5 135 75 18
SL-R1025-7.6 13 10 1.6 7.6 160 90 23
SL-R1025-10 16 13 2.46 10 180 100 27
SL-R1025-14 19 16 4.14 14 200 110 33
SL-R1025-25.1 22 19 6.22 25.1 260 140 36
SL-R1025-30.8 26 22 12.85 30.8 340 180 45
SL-R1025-40 32 26 16.22 40 350 190 50
