Product Details:
Payment & Shipping Terms:
|
| Product Name: | G100 Lifting Clevis Sling Hook With Latch | Max. Cap: | 19 Ton |
|---|---|---|---|
| Min Cap: | 1.4 Ton | Material: | Super Alloy Steel |
| Processing: | Forged | Safety Factor: | 4:1 |
| High Light: | Forged Clevis Sling Hook,Alloy Steel Clevis Sling Hook,Clevis Sling Hook With Latch |
||

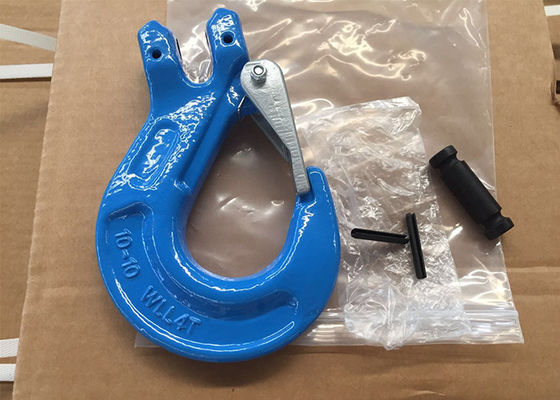

G100 Lifting Clevis Sling Hook with Latch
Details
G100 clevis sling hook with safety latch are a general purpose hook suitable for most slinging applications.
Clevis Sling Hook with Latch to suit 6,8,10 & 13mm Grade 100 Chain
Grade 100 offers a 25% greater lifting capacity for the same size G80 Chain & Components
* Supplied with load and retaining pin to attach to G80 Chain
* Replacement catches, load and retaining pins available from stock
* Supplied with relevant Certification
Specifications
| Part No. |
Size (mm) |
W.L.L (tons) |
A (mm) |
B (mm) |
E (mm) |
H (mm) |
M (mm) |
L (mm) |
N.W. (kgs) |
| SL-H1059-1.4 | 6 | 1.4 | 7.5 | 32 | 18.5 | 21 | 68.5 | 109 | 0.33 |
| SL-H1059-2.5 | 8 | 2.5 | 9.5 | 37 | 25 | 27.5 | 88 | 134 | 0.7 |
| SL-H1059-4 | 10 | 4 | 12 | 58 | 28 | 33.5 | 105.5 | 161.5 | 1.3 |
| SL-H1059-6.7 | 13 | 6.7 | 15 | 59 | 38 | 42 | 135 | 203 | 2.3 |
| SL-H1059-16 | 16 | 10 | 17.5 | 70 | 44 | 50 | 160.5 | 248 | 3.6 |
| SL-H1059-20 | 20 | 16 | 25 | 85 | 52 | 56 | 190.5 | 297 | 7.3 |
