Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220V/380V | Color: | As Per Request |
|---|---|---|---|
| Capacity: | 0.5t-35t | Standard Lifting Height: | 3m/6m |
| Speed: | Single Speed/double Speed | Type: | Hook Type/ Trolley Type/ Low Headroom Type |
| High Light: | Low Headroom Electric Chain Hoist,3m Lifting Electric Chain Hoist,35t Electric Chain Hoist |
||

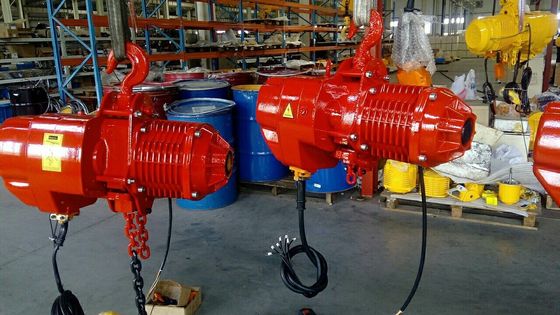

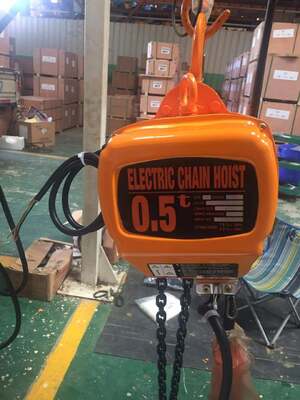

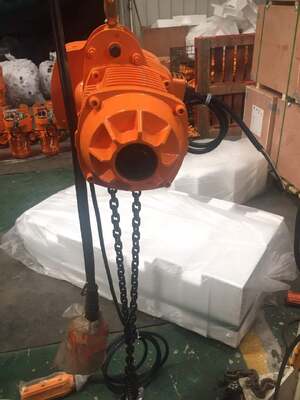

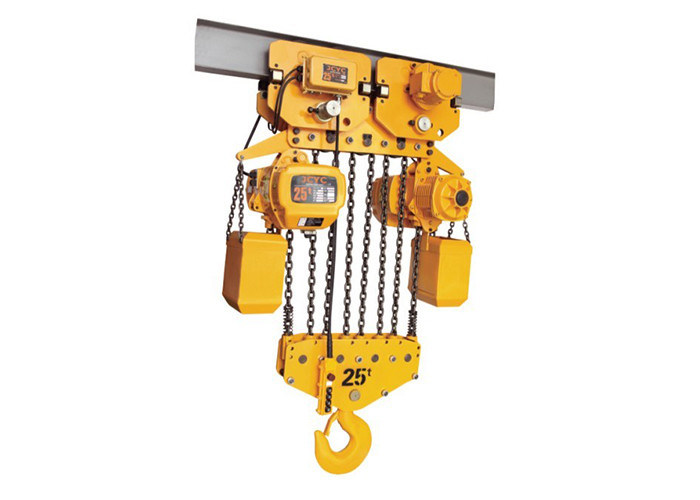

0.5t-35t and 3m Stainless Steel Chain with Low Headroom Electric Chain Hoist
SY-A ELECTRIC CHAIN HOIST
SY Series Model SYA Electric Chain Hoist
Usage: Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields.
Features and advantages:
1. The main parts of it adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
Product technical data:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | I-Beam(mm) | ||||
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply | ||||||
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 1440 | 220-440V 50/60HZ 3Phase | 0.12 | 1440 | 220-440V 50/60HZ 3Phase | 58-130 |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 80-160 | ||
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 1440 | 0.4 | 1440 | 80-160 | ||
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 82-178 | ||
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 82-178 | ||
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 100-180 | ||
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 1440 | 0.4 | 1440 | 100-178 | ||
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 1440 | 0.4 | 1440 | 110-178 | ||
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 1440 | 0.75 | 1440 | 110-180 | ||
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 120-180 | ||
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 150-202 | ||
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 | ||
