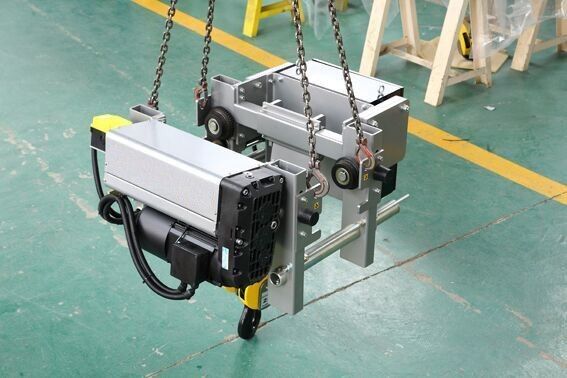

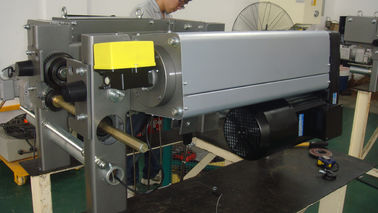

IP54 Fatigue Resistance 6M Lifting 5T Single Girder Hoist

IP54 Fatigue Resistance 6M Lifting 5T Single Girder Hoist
IP54 Fatigue Resistance 6M Lifting 5T Single Girder Hoist IP54 Fatigue Resistance 6M Lifting 5T Single Girder Hoist

Large Image :  IP54 Fatigue Resistance 6M Lifting 5T Single Girder Hoist

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE&ISO
Model Number: SHSL
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD negotiable per unit
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 units per month
Detailed Product Description
Capacity: 2T - 12.5T Standard Lifting Height: 6M
Lifting Speed: Single Speed , Double Speed , Frequency Controlled Speed Color: As Per Request
Function: Lifting Working Temperature: -25 - 50 Degrees
High Light:

5T Single Girder Hoist

,

6M Lifting Single Girder Hoist

,

IP54 Single Girder Hoist

Single Girder Electric Wire Cable Rope Hoist 5 T With Single Or Double Speed 380V


Detailed Product Description

SH – Type Under –  Electric Wire Rope Hoist
It is a up to date developed product by combining and applying the standard German technologies. It has compact structure and its frame is in rectangular shape. Its drum is made of seamless steel pipe. Its planetary gearbox, which is in the hoisting drum, electromotor and electric control box is in beeline collocation. The hoist has overload protection, overheating protection and phase relay protection. Its modular design can realize the seamless connection with frequency inverter, automatic weighing system and automatic detection system.

Competitive Advantages

- Low noise, safe and reliable traveling.
- Single speed, double speed or variable speed if client request.
- Smooth starting and stopping.
- Light wheel pressure.
- Convenient maintenance.
- Corrosion resistance and fatigue resistance.

- Overload protection device.

Applications

SH– Electric Hoist can be used in heavy duty industry, light duty industry, the concrete plant, coal mining industry, cement and hydro power industry, etc.

Higher Security and Reliability

1. Brake and overload protection ensure the safety under any circumstance, no slip under load
2. IP54 of hoist frame and brake ensures the optimal corrosion resistance under harsh environment.
3. Up and down limit switch ensures the safe operation of the hook on the top and bottom position.
4. Low-voltage protection ensures the safe and reliable operation.
5. Efficient high lifting speed, smooth low lifting speed, precise positioning.



Capacity
(t)
Lifting Height
(m)
Lifting Speed
(m/min)
Lifting Motor
(kw)
Travelling Speed
(m/min)
TravellingMotor
(kw)
Lifting System
(FEM/ISO)
Travelling System
(FEM/ISO)
I-Beam Width
(mm)
26/9/12/15/185/0.83.2/0.455/200.373MM62MM5150-300
3.26/9/12/15/185/0.83.2/0.455/200.372MM52MM5150-300
56/9/12/15/185/0.86.1/15/200.372MM52MM5200-350
6.36/9/12/15/185/0.86.1/15/200.371AmM42MM5200-350
86/9/12/15/185/0.89.5/1.55/200.753MM62MM5200-410
106/9/12/15/185/0.89.5/1.55/200.752MM52MM5200-410
12.56/9/12/15/184/0.612.5/25/200.751AmM42MM5200-410
166/9/12/15/184/0.616/2.65/200.75*22MM52MM5300-450
206/9/12/15/184/0.616/2.65/200.75*21AmM42MM5300-450
820/24/28/32/368/1.312.5/25/200.752MM52MM5200-410
1020/24/28/32/368/1.316/2.65/200.752MM52MM5200-410
12.520/24/28/32/366.3/116/2.65/200.751AmM42MM5200-410
