Product Details:
Payment & Shipping Terms:
|
| Name: | 1 Ton 2 Ton 3 Ton 5 Ton Electric Chain Hoist For Sale | Rated Load: | 0.25-5 Ton |
|---|---|---|---|
| Chain Length: | Standard 3m Or At Request | Usage: | Mining Hoist |
| Power Supply: | 3-phase/220v-380v | Protection Grage: | IP54 |
| Warranty: | 1 Year | ||
| High Light: | 5 Ton Electric Chain Hoist,IP54 Electric Chain Hoist |
||

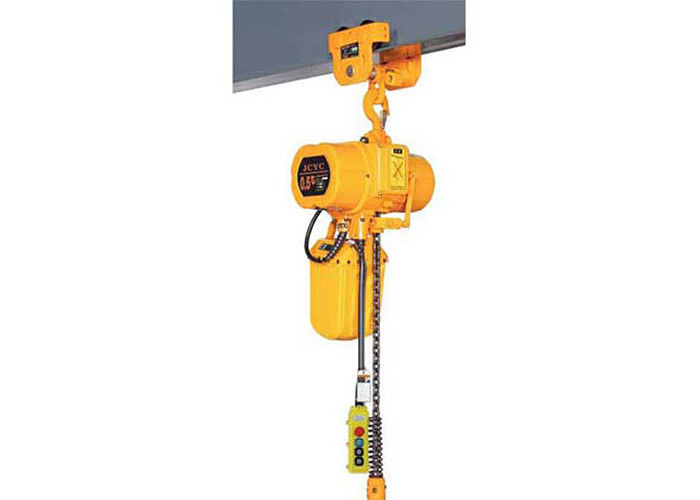

1 Ton 2 Ton 3 Ton 5 Ton Electric Chain Hoist For Sale
Product description:
1 Ton 2 Ton 3 Ton 5 Ton Electric Chain Hoist For Sale is a light and small lifting equipment. It consists of electric motor, transmission mechanism and sprocket. And all produced according to international standards. The body is beautiful in appearance and durable. The internal gears are all quenched at high temperatures, which increases the wear resistance and toughness of the gears. The most advanced international technology is used, and the workmanship is fine and the gears are tightly fitted.
Product technical parameters:
Technical Data(single speed)
| Model | SK0.25 | SK0.5 | SK1.0 | SK1.5 | SK2.0-1 | SK2.0-2 | SK2.5 | SK3.0-1 | SK3.0-2 | SK5.0 |
| Capacity(ton) | 0.25 | 0.5 | 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 3.0 | 5.0 |
| Lifting speed(m/min) | 9.2 | 8.3 | 6.3 | 8.5 | 6.9 | 3.2 | 6.6 | 6.6 | 4.2 | 3.3 |
| Motor power(kw) | 0.56 | 0.9 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation speed(r/min) | 1440 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3-phase/220V-380V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 |
| Spec. of load chain | 4.0mm | 6.3mm | 7.1mm | 10.0mm | 10mm | 7.1mm | 11.2mm | 11.2mm | 10mm | 11.2mm |
Technical Data(frequency transformer)
| Model | SK0.25 | SK0.5 | SK1.0 | SK1.5 | SK2.0-1 | SK2.0-2 | SK2.5 | SK3.0-1 | SK3.0-2 | SK5.0 |
| Capacity(ton) | 0.25 | 0.5 | 1.0 | 1.5 | 2.0 | 2.0 | 2.5 | 3.0 | 3.0 | 5.0 |
| Lifting speed(m/min) | 0.92-9.2 | 0.83-8.3 | 0.83-8.3 | 0.85-8.5 | 0.69-6.9 | 0.32-3.2 | 0.66-6.6 | 0.66-6.6 | 0.42-4.2 | 0.33-3.3 |
| Motor power(kw) | 0.56 | 0.9 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation speed(r/min) | 1440 | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3-phase/220V-380V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 2 |
| Spec. of load chain | 4.0mm | 6.3mm | 7.1mm | 10.0mm | 10mm | 7.1mm | 11.2mm | 11.2mm | 10mm | 11.2mm |
Features and advantages:
1. The main parts of electric chain hoist adopt high quality steel product to ensure durability.
2. Special specifications and marks can be made according to customers' requirements.
3. Various lifting capacity, meet different needs.
4. The main body of electric chain hoist can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.
SK chain hoist types for you choose:
