Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5 Ton Suspended Single Girder Overhead Travelling Crane With Chain Hoist | Span: | 3-16m |
|---|---|---|---|
| Working Duty: | A4-A6 | Capacity: | 0.5-5 Ton |
| Lifting Height: | 3-30m | Lifting Speed: | 5-15m/min |
| High Light: | industrial overhead crane,overhead beam crane |
||
5 Ton Suspended Single Girder Overhead Travelling Crane With Chain Hoist
1. Brief Introduction
single girder suspension overhead crane for workshop Lifting capacity: 0.5t -5tons. Save more space on the work plant. Suitable for low headroom workshop.
2. Product Advantages:
1.Light working duty, light dead weight and light wheel-pressure
2.Competitive price
3.Tight dimensions and low building headroom
1. Overload protection: If the material is over the capacity, it will give a sharp warning for protecting itself.
2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operation staff
4. Main lifting motor: with thermal protection and currency protection.
5. Hooks with latch
6. Rubber buffers
7. Protective earthing
3. Technical data:
| Mechanism item | Data | |
| Lifting capacity | ton | 0.5-5 ton |
| Lifting height | m | 3-30m |
| Span | m | 3-16m |
| Lifting speed | m/min | 0.8/8 |
| Working system | A4-A6 | |
| Travelling speed | m/min | 2-30m/min |
| Power source | AC 50/60HZ 220V-480V 3P customized | |
| Working environment temperature | -25ºC~+40ºC |
4. Questions before making quotation:
1. The lifting capacity?
2. The span of main girder?
3. The lifting height?
4. Single speed or doulbe speed of lifting?
5. Pendant control or remote control or cabin?
6. Power supply?(volt./3p/hz)
7. Do you need the whole set including the travel rails? how long?
7. Any other special requirements?
That will be much helpful if you can supply drawing to us.

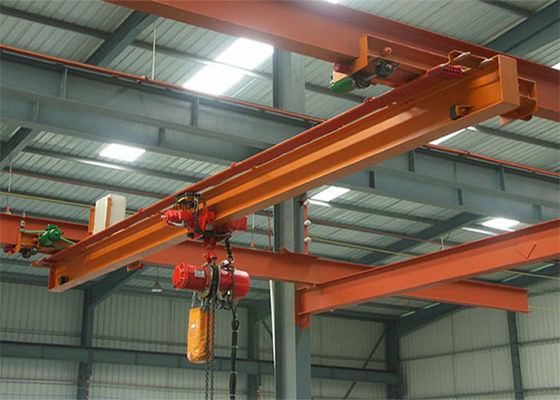

5. Product show
