Heavy Duty Electric Hoist European Style Single Girder / Double Girder

Heavy Duty Electric Hoist European Style Single Girder / Double Girder
Heavy Duty Electric Hoist European Style Single Girder / Double Girder Heavy Duty Electric Hoist European Style Single Girder / Double Girder Heavy Duty Electric Hoist European Style Single Girder / Double Girder Heavy Duty Electric Hoist European Style Single Girder / Double Girder

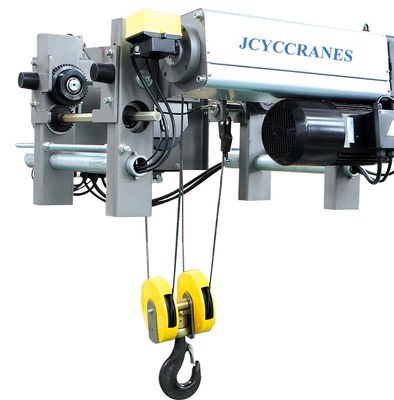

Large Image :  Heavy Duty Electric Hoist European Style Single Girder / Double Girder

Product Details:
Place of Origin: CHINA
Brand Name: JCYC
Certification: CE,ISO
Model Number: SHSL
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Standard export cases
Delivery Time: 15 to 20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: SHSL European Model Electric Hoist Lifting Height: 6m-36m
Lifting Speed: 0.6 M/min To 8 M/min Running Speed: 5/20 M/min
Power Supply: 220V-440V, 3Phase, 50/60HZ Motor: ABM MOTOR
High Light:

electric lifting hoist

,

stainless steel wire rope hoist

Heavy Duty Electric hoist European style about Single Girder or Double Girder



Technical parameters



Capacity(ton) Lifting height(m) Lifting speed(m/min) Lifting motor(kw) Travelling speed(m/min) Traveling motor(kw)
2t 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37
3.2t 6/9/12/15/18 5/0.8 3.2/0.45 5/20 0.37
5t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37
6.3t 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37
8t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75
10t 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.75
12.5t 6/9/12/15/18 4/0.6 12.5/2 5/20 0.75
16t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75x2
20t 6/9/12/15/18 4/0.6 16/2.6 5/20 0.75x2
8t 20/24/28/32/36 8/1.3 12.5/2 5/20 0.75
10t 20/24/28/32/36 8/1.3 16/2.6 5/20 0.75
12.5t 20/24/28/32/36 6.3/1 16/2.6 5/20 0.75





High configuration

1. Modular structure, can shorten the product development and manufacturing cycle, increase the product line, improve product quality, easy to reuse, upgrade, maintenance and product after the removal of waste, recycling and processing.

2. Integrated electrical components - small size, low failure rate, low maintenance costs;

3. The utility model has the advantages that the lifting speed is slow and the speed is fast, and the utility model solves the harsh sound of slow and fast switching of the European calabash;

4. Bus control technology to achieve large car control signal transmission, reduce the failure rate;

5. Multi function monitoring unit. The lifting mechanism can monitor the flow number, number and overload of each control point of action is normal or not, by recording the data from the remaining safe working cycle of gourd, gourd life detection;

6. Delay switch technology is used to ensure that the pole changing motor can be converted to the slow speed from fast to slow,Play the role of anti - shock protection.

7. Lifting frequency conversion with a safety circuit, even if the inverter failure will not occur safety incidents.

8. Application of fuzzy control technology in anti swing control;

9. Using pulse generator technology to monitor the motor running state;



Applications


1, Extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
2, Installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3, It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
It has so many appllication usages just for its advantages, such as: tight structure, convenient operation, light weight, wide common use and so on.
