| Product Name: | CD1 With 1 To 25T Capacity Crane Electric Wire Rope Hoist | Brand: | JCYC |
|---|---|---|---|
| Application: | Crane | Capacity: | 1 To 25T |
| Lifting Height: | 6,9,12,18, Or At Your Request | Customized: | Yes |
| High Light: | electric lifting hoist,stainless steel wire rope hoist |
||

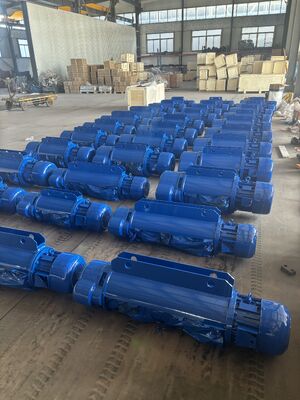

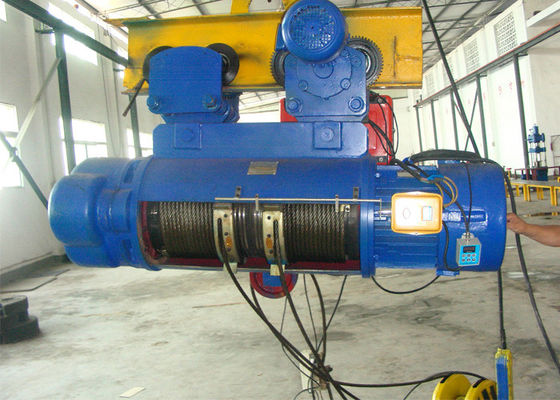

CD1 With 1 To 25T Capacity Crane Electric Wire Rope Hoist
Technical Parameters:
| Model | Lifting Capacity (t) | Lifting Height (m) | Lifting Speed (m/min) | Running Speed (m/min) | Wire Rope Type | Dia.of Wire Rope (mm) | I Beam Track Type | Working Duty | Lifting Motor | Running Motor | ||||
| Power(kw) | R.P.M ( r/min) | Power Supply | Power(kw) | R.P.M ( r/min) | Power Supply | |||||||||
| CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3Phase | 0.06 | 1400 | 220-440V 50/60HZ 3Phase |
| CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 | ||
| CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 | ||
| CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 | ||
| CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 | ||
| CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 | ||
| CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
| CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M2 | 13 | 1400 | 0.8*2 | 1380 | ||
Spare Parts:
1.Reducer:
As an independent part, loading and unloading conveniently.
2.Control Box:
Fire Stop Device which can cut off the circuit in case of emergency to protect operation safe
3.Cone-shaped motor:
Lifting motor is higher starting torque tapered brake rotor asynchronous motor,need not extra
brake.Insulation is B grade or F grade, Motor Protection Grade is IP44/IP54.
4.Button Switch:
Handle control:light and convenient, offer two kinds :ring control and wireless remote control.
FAQ:
1. Are you manufacturer or trade Company?
Thanks for your question. We are a factory founded in 1991 with trade team for international service.
2. About quality:
Before packing, all the hoists will be inspected carefully. And we take detailed pictures and make records for each single product. With our serial no. you will track the details about the products.
3. About spare parts:
We manunfactur 80% spare parts in our factory to control high quality, and the rest 20% are from overseas and China's most famous supplier.
4. How about sample & MOQ policy?
Thanks for your question. Welcome sample order. MOQ can be 1 set.
5. what is your lead time for your goods?
Thanks for your question. Normally 7~10 working days after received payment, and about 30 days during Chinese new year and hot season.
6.What should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you!
A- lifting capacity?
B-lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage?
