Product Details:
Payment & Shipping Terms:
|
| Color: | As Your Request | Running Mode: | Moving |
|---|---|---|---|
| Usage: | Hydraulic Engineering | Lift Speed: | 8-10m/min |
| Power Source: | Electric | Power Supply: | As Your Request |
| High Light: | electric lifting hoist,stainless steel wire rope hoist |
||
Description:

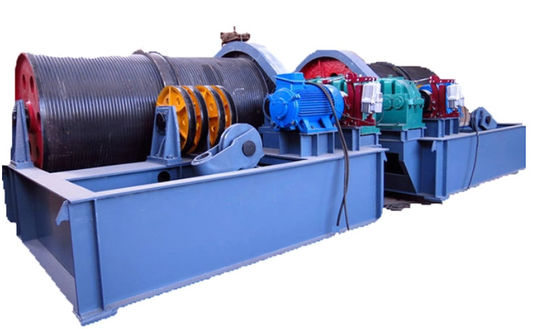

The company have four series of hoists which are QP series of flat-type gate hoist winch, QPK series of fast gate winch hoist, QH series of radial gate hoist and QL series of direct screw hoist. All series have single and double lift points, single and central drive, and manual and electronic control.
Technical Parameter:
| Items | Model | Capacity | Hoist Height | Hoist Speed | Pulley Ratio | Points Distance | Motor | Weight | ||
| KN | m | m/min | m | Model | Power KW | kg | ||||
|
Single Lifting Point |
Individual drive Central Drive |
QPQ-50 | 50 | 4~7 | 1.47 | 2 | Y112M-6 | 2.2 | 910 | |
| QPQ-80 | 80 | 5~10 | 2.20 | 2 | Y-132M1-6 | 4.0 | 1270 | |||
| QPQ-100 | 100 | 5~10 | 2.20 | 2 | Y-132M1-6 | 4.0 | 1280 | |||
| QPQ-125 | 125 | 5~11 | 2.57 | 2 | Y-132M2-6 | 5.5 | 1850 | |||
| QPQ-160 | 160 | 5~11 | 5.57 | 2 | Y-132M2-6 | 5.5 | 1890 | |||
| QPQ-250 | 250 | 6~12 | 2.44 | 2 | Y-160M-6 | 7.5 | 2710 | |||
| QPQ-400 | 400 | 5~9 | 1.95 | 4 | Y-132L-6 | 11 | 4350 | |||
| QPQ-630 | 630 | 10~13 | 1.10 | 6 | Y-200L-8 | 15 | 6470 | |||
| QPQ-800 | 800 | 10~13 | 1.47 | 6 | Y-225M-8 | 22 | 8150 | |||
| QPQ-1000 | 1000 | 8~11 | 1.25 | 8 | Y-225M-8 | 26 | 10790 | |||
| QPQ-1250 | 1250 | 8~15 | 1.19 | 8 | Y-250M-8 | 35 | 12630 | |||
| Double Lifting points | Individual drive | QPQ-2x50 | 2x50 | 4~7 | 1.47 | 2 | 2~7 | Y-132M-6 | 4.0 | 1715 |
| QPQ-2x 80 | 2x 80 | 5~10 | 2.20 | 2 | 2~7 | Y-132M-6 | 5.5 | 2105 | ||
| QPQ-2x 100 | 2x 100 | 5~10 | 2.20 | 2 | 2~7 | Y-160M-6 | 7.5 | 2230 | ||
| QPQ-2x 125 | 2x 125 | 5~11 | 2.57 | 2 | 2.1~8 | Y-160M-6 | 11 | 3503 | ||
| QPQ-2x 160 | 2x 160 | 5~11 | 5.57 | 2 | 2.1~8 | Y-160M-6 | 11 | 3585 | ||
| QPQ-2x 250 | 2x 250 | 6~12 | 2.44 | 2 | 2.5~9 | Y-180M-6 | 15 | 5050 | ||
| QPQ-2x 400 | 2x 400 | 5~9 | 1.95 | 4 | 3.1~10 | Y-225M-6 | 22 | 8125 | ||
| Individual drive | QPQ-2x 630 | 2x 630 | 10~13 | 1.10 | 6 | 4.1~11 | Y-200L-8 | 2x15 | 12800 | |
| QPQ-2x 800 | 2x 800 | 10~13 | 1.47 | 6 | 4.5~11 | Y-225M-6 | 2x22 | 15651 | ||
| QPQ-2x 1000 | 2x 1000 | 8~11 | 1.25 | 8 | 4.5~12 | Y-225M-8 | 2x26 | 21030 | ||
| QPQ-2x 1250 | 2x 1250 | 8~15 | 1.19 | 8 | 4.5~13 | Y-250M-8 | 2x35 | 23610 | ||
