Product Details:
Payment & Shipping Terms:
|
| Product Name: | Anchor Chain EN818-2 G80 Lifting Chain Alloy Steel Black Oxidation Lifting Chain | Material: | Alloy Steel |
|---|---|---|---|
| Technology: | Black Oxidation | Size: | 4mm 6mm 8mm 10mm As You Request |
| Standard: | EN818-2 | Application: | Lifting Tools |
| High Light: | grade 80 lifting chain,grade 80 alloy chain |
||

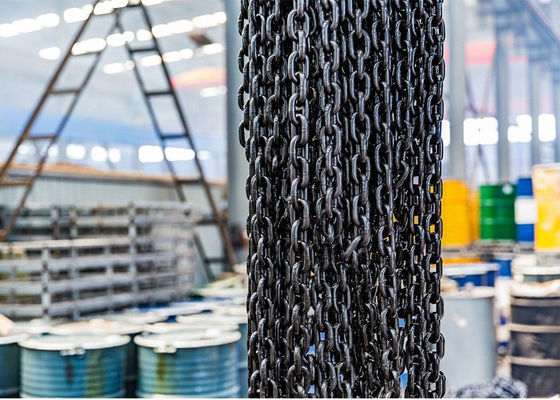

Anchor Chain EN818-2 G80 Lifting Chain Alloy Steel Black Oxidation Lifting Chain
Product Description
Grade: G80
Material: 20MN2 25MNV
Standard: EN818-2
Surface treatment: Black oxidation, zinc plated, self color
Proof test at 2.5 times the working load limit
Ultimate load is 4 times the working load limit
| Diameter(mm) | Inside Length(mm) | Outside width(mm) | Weight(kg/m) | Test load (KN) |
| 6 | 18 | 21 | 0.79 | 27 |
| 8 | 24 | 28 | 1.38 | 48 |
| 10 | 30 | 35 | 2.2 | 76 |
| 12 | 36 | 42.2 | 3.3 | 117 |
| 14 | 42 | 49 | 4.13 | 150 |
| 16 | 48 | 56 | 5.63 | 192 |
| 18 | 54 | 63 | 6.85 | 246 |
| 20 | 60 | 70 | 8.6 | 300 |
| 22 | 66 | 77 | 10.5 | 366 |
Product Inspection
We test each order three steps.
1. Material test before production.
2. Random test during production progress.
3. Test finished products before shipment.
4. Test report can be provided.
Before packing, the link chain must be checked by our inspection system. And the lifting chain must be made sure that it could not break when the full load was lifted. If not, that piece chain block would not be passed.
Production Technology
hot dipping
