100kg to 990kg Standard Wire Rope Hoist / Electric Lifting Hoist

China Chongqing Shanyan Crane Machinery Co., Ltd. certification
China Chongqing Shanyan Crane Machinery Co., Ltd. certification
Nice quality

—— George

Professional and delivery on time, treat me good.

—— Patrick

Works perfectly !

—— Khalid

Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Kent Rosal

Please develop more nice hoist and with better prices, so we can sell your hoist to more clients and gain larger markets. Thank you.

—— Khalid Abu Hasera

Mr. Sen is a nice man, he help me a lot, thanks for you give us quickly respone and save us many times. good job!

—— Sivakumar veerappa nainar

I'm Online Chat Now

100kg to 990kg Standard Wire Rope Hoist / Electric Lifting Hoist

100kg to 990kg Standard Wire Rope Hoist / Electric Lifting Hoist
100kg to 990kg Standard Wire Rope Hoist / Electric Lifting Hoist

Large Image :  100kg to 990kg Standard Wire Rope Hoist / Electric Lifting Hoist

Product Details:
Place of Origin: China
Brand Name: JCYC
Certification: CE, ISO
Model Number: SY-B Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: about 12 workdays if no store
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 units per month
Detailed Product Description
Max. Height: 12m Max. Weight: 990kg
Lifting Speed: 4/8/5/10 M/min Input Power: 480W-1600W
Grade: IP54 Method Of Use: Single And Double Hook Use
High Light:

wire rope crane hoist

,

electric lifting hoist

100kg to 990kg Yellow Color New Standard Mini Electric Wire Rope Hoist With Emergency Stop Switch



Product Description:

New Standard Mini Electric Wire Rope Hoist With Emergency Stop Switch



Usage:

It is very suitable for daily civilian using, industrial production line, freight logistics and other places.



Features and Advantages:

With emergency stop switch

Reinforced braking switch with position limit

Protection class up to IP54

With thermal prevention device



1. Small wire rope hoist with new standard and emergency stop switch.

2. Reinforced braking switch with position limit.

3. Protection class ups to IP54.

4. Mini steel wire rope hoist with thermal prevention device.

5. Unique design and elegant shape.

6. The suspension parts allow unique and safe installation.

7. Increases service life by 20 times.

8. The redesigned storage system allows a rotation of the cable drum for increased service life.

9. Problem-free grease via the grease nipple.

10. Secure suspension parts by interlock lock protection.

11. It has two hooks which can meet different lifting needs.

12. Automatically stop lifting when the limiting baffle touches the limiting device.

13. The hoist motor will automatically stop working if the wire rope is raised in reverse.

14. The hoisting design is divided into dynamic loading and static loading two states.

15. Warning: equipment must be three-wire (ground wire, zero wire, fire wire ) grounded outlet with 220volt.

16. Note: be sure to completely strip the tape on the wire rope and make the wire rope in a free state before test the machine.

17. Equipment should not be used to lifting human or animals, it is strictly prohibited to lifting one objects by more than two Equipments.

18. Human and animals are forbid to stand under the equipment when it is lifting heavy cargo.

19. The wire rope should not winding backgrounds on the wire rope reel normally and remaining at least three times or it will slip.



Photo:

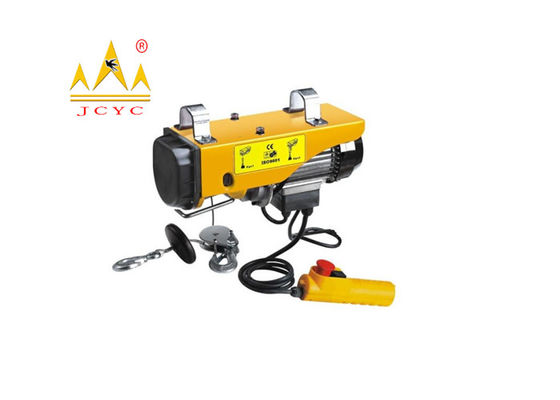

100kg to 990kg Standard Wire Rope Hoist / Electric Lifting Hoist 0

Parameter:

Model Hook Usage

Hook Lifting Capacity

(kg)

Rated Volt.

(V)

Input Power

(W)

Lifting Height

(m)

Lifting Speed

(m/min)

QTY/CTN

(pcs)

Package Size

(cm)

G.W/N.W

(kg)

SY-B-PA200 Single Hook 100 220/230/240 480 12 10 2 49*43*16 24/22
Double Hook 200 6 5
SY-B-PA250 Single Hook 125 510 12 10 2 49*43*16 24/22
Double Hook 250 6 5
SY-B-PA300 Single Hook 150 600 12 10 2 49*43*16 24/22
Double Hook 300 6 5
SY-B-PA400 Single Hook 200 950 12 10 2 52*48*17 36/34
Double Hook 400 6 5
SY-B-PA500 Single Hook 250 1020 12 10 2 52*48*17 36/34
Double Hook 500 6 5
SY-B-PA600 Single Hook 300 1200 12 10 2 52*48*17 36/34
Double Hook 600 6 5
SY-B-PA700 Single Hook 350 1250 12 8 2 54*50*17 38/36
Double Hook 700 6 4
SY-B-PA800 Single Hook 400 1300 12 8 2 54*50*17 38/36
Double Hook 800 6 4
SY-B-PA990 Single Hook 500 1600 12 8 1 62*24*35 33/32



Warm Note:

OEM, ODM, sample, trial and mixed orders are all welcomed to test our quality and service.
