| Product: | Electric Trolley To Electric Chain Hoist 0.5 Ton - 10 Ton | Speed: | Single Speed / Dual Speed |
|---|---|---|---|
| Voltage: | 220 V - 440 V | Application: | Electric Chain Hoist |
| Color: | Orange | Motor Power: | 0.4 KW - 0.75 KW |
| High Light: | mini chain hoist,stainless steel chain hoist |
||

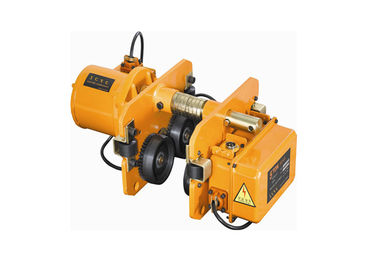

0.5 ton - 10 ton Electric Chain Hoist for Warehouse / Workshop
Brief introduction
Electric trolley mainly is used in U Power, Ship, Automobile Manufacture, Construction, Highway, Bridges, Metallurgy, Mining, Slope Tunnel, infrastructural project of mechanical equipment. It is main part for electric chain hoist, which can drive the chain hoist travelling. It can be single speed or double speed as per customer's requirement.

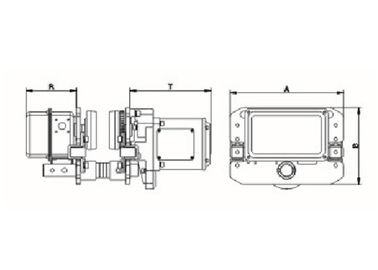

| Model | Capacity (T) |
Unit(mm) | Speed 50HZ (m/min) |
Motor(kw) | Minimum radius of turn |
I-Beam | |||
| A | B | R | T | ||||||
| SY-ET-0.5 | 0.5 | 198 | 248 | 142 | 159 | 12.2 | 0.12 | 0.8 | 52-153 |
| SY-ET-01 | 1 | 315 | 212 | 142 | 231 | 11-21 | 0.4 | 0.8 | 52-153 |
| SY-ET-02 | 2 | 325 | 220 | 142 | 231 | 11-21 | 0.4 | 0.8 | 82-178 |
| SY-ET-03 | 3 | 340 | 250 | 142 | 231 | 11-21 | 0.4 | 1 | 100-178 |
| SY-ET-05 | 5 | 400 | 291 | 142 | 231 | 11-21 | 0.75 | 1.8 | 100-178 |
| SY-ET-7.5 | 7.5 | 400 | 291 | 142 | 231 | 11-21 | 0.75 | 1.8 | 100-178 |
| SY-ET-10 | 10 | 500 | 370 | 142 | 231 | 11-21 | 0.75 | 2.5 | 150-220 |
