Durable Green Steel 6 Ton Air Pneumatic Chain Hoist Explosion Proof

Durable Green Steel 6 Ton Air Pneumatic Chain Hoist Explosion Proof
Durable Green Steel 6 Ton Air Pneumatic Chain Hoist Explosion Proof

Large Image :  Durable Green Steel 6 Ton Air Pneumatic Chain Hoist Explosion Proof

Product Details:
Place of Origin: China
Brand Name: JCYC, OEM
Certification: CE, ISO
Model Number: QDM
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Standard Export Package
Delivery Time: around 12 workdays if no store
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs per month
Detailed Product Description
Capacity: 6 Ton Painting: Standard Green
Color: Green Or Customized Color Type: QJM
Lifting Capacity Range: 0.125-6 Number Of Chain Falls: 1-2
Sound Level: 77, 78
High Light:

explosion proof wire rope hoist

,

pneumatic air hoist

Durable Green Steel 6 Ton Air Pneumatic Chain Hoist Explosion Proof





Product Description:

QJM Green Air Chain Hoist, QJM Green Pneumatic Chain Hoist



Product Profile

1.1, Pneumatic hoist is the most optimum lifting device in the world. It has been widely used in industrially developed countries, for it takes the following advantages over motor hoists.

First, the pneumatic hoist cannot generate electric spark, so it completely solves the anti-explosive problem.
Explosion-proof grade: Ⅰ Hazardous area, including ⅡC, Group T5 and below.

Second, the pneumatic hoist uses the 100% work system, so as to make the required conditions for high-efficient continuous jobs.

Third, the pneumatic hoist sees a fast operating speed which is 2-3 times more than the motor hoist, and the former can present non polar variable speed.

Fourth, the pneumatic hoist features endurance on acid, alkaline, steam and high-powder dust.

Fifth, the pneumatic hoist has small size and easily operation. It is only 1/3~1/8 of the weight of a motor hoist whose specification is same.

1.2, Based on the abovementioned characteristics, the pneumatic hoist is widely used in the areas of petroleum, chemical industry, coal, textile, machinery production, ship and aship and ammunition.


Features and advantages:

1. The pressure of compressed air can be transformed into pneumatic power by pneumatic motor and the output torque drives the planetary reducer to run. The gas path control part makes rotary mechanism to do positive and negative rotation, so as to achieve the function of lifting objects.

2. Various lifting capacity, meet different needs.

3. Precision parts such as motor and piston are all made from high-precision import processing center.

4. The planetary gears are made of high quality steel with tempering and quenching. All lubricated by extremely pressure lithium grease.

5. T8 grade alloy steel calibration chain with sufficient alloying elements which is very aging resistant.

6. The bearing of chain sprocket use double dustproof ball bearing.

7. ISO standard V type hook.

8. The main body can be hanging in the I-beam to move straight or curve, or installed in the fixed bracket for lifting heavy objects.

9. Our professional enginnering and technical personnel can make the best handling solution for you according to your specific usage and installation requirements.

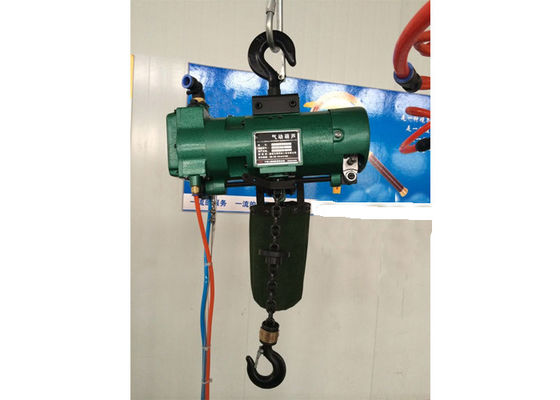

Photo:

Durable Green Steel 6 Ton Air Pneumatic Chain Hoist Explosion Proof 0

Parameter:

QJM Unit Specifications
Capacity kg 125 250 500 980 2000 3000 6000
SWL m 3
Number of Chain Falls 1 1 1 2 1 1 2
Working Medium Compressed Air
Working Pressure MPa 0.6
Motor Output Power kw 1 1 1 1 1.8 3.5 3.5
Air Consumption m3/min 1 1 1.3 1.3 2.5 4 4
Hose Fitting Thread Rc1/2 Rc1/2 Rc1/2 Rc1/2 Rc1/2 Rc3/4 Rc3/4
Hose Dia. mm 12/16 19/25
Sound Level db 77 78
Speed Range Rated Load Speed LP m/min 20 15 7 4 5.5 5 2.5
Down 34 30 20 10 11 10.5 5.2
No Load Speed LP 35 30 20 7 9.5 10 5
Down 23 20 14 5 9.8 10.5 5.3



Warm Note:

OEM, ODM, sample order, trial order and mixed orders are all ok, welcomes contact us.
