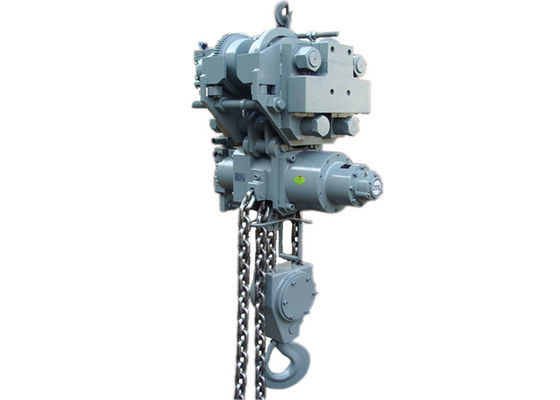

Grey Color Electric Chain Hoist 0.08-160t Alloy Steel Adjustable Speed

Grey Color Electric Chain Hoist 0.08-160t Alloy Steel Adjustable Speed
Grey Color Electric Chain Hoist 0.08-160t Alloy Steel Adjustable Speed

Large Image :  Grey Color Electric Chain Hoist 0.08-160t Alloy Steel Adjustable Speed

Product Details:
Place of Origin: China
Brand Name: JCYC / OEM
Certification: CE
Model Number: QDT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 - 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800 pieces per month
Detailed Product Description
Material: Alloy Steel Chain Power: Air
Color: Grey Function: Anti-explosion
Motor: Pneumatic Capacity: 0.08-160t
Type: QDT Name: Pneumatic Chain Hoist
High Light:

explosion proof electric hoist

,

pneumatic air hoist

Grey Color Electric Chain Hoist 0.08-160t Alloy Steel Adjustable Speed





1. Usage Range:



Lifting, fixing, binding, traction, etc. Well accepted in various industrial fields especially anti-explosion places. 100% work system to make the required conditions for high-efficient continuous jobs.



2. Features:



1.Overload protection

When the working load is heavier than rated load, the overload protection can make the hoist stopped so to make the hoist life longer.



2.Planetary gear

Two deceleration mechanism accurately and efficiently control the speed ratio.



3.Brake mechanism

Copper brakes effectively prevent sparks harm, and can accurately and efficiently control the hoist up and down speed.



4.Chain wheel

Precision anti-wear sprocket ensure the chain smooth lifting and lowering in the wheel and make the hoist life longer.



5.Air motor

Low air consumption, less maintenance time, high torque, transfer faster lifting speed.



6.Silencer

Internal silencer reduces noise when air excluding.



7.Air supply valve

Precise movement of the piston control the in and out gas so as to make the speed infinitely variable.



8.Protection without air

When the air supply is suddenly cut off, power transmission part will automatically lock the brake directly through the brakes,



9.preventing the load suspended matter in the air free fall.



10.Chain

T8 grade, Anti-aging, contains a sufficient amount of alloying elements alloy steel calibration chain.



11.Limit device

When the load is raised the top of the hoist, the stopper blocking will stop the load continue to be lifted, and open 12.brakes

immediately, so to ensure safety.



13.Chain bag

The size can be booked or can do metal bag.



14.Standard lifting hook

Can choose standard 360 degree rotating hook or copper plating hook which is used in special spark-proof situation.



15.Installation and commissioning

Main intake pipe use plug and play method to make installation very easy and convenient.



16.Pendant

Push-button handle accurately and efficiently control the raising and lowering speed and rhythm.



17.Control lever when without air

When the air is cut, this control lever can make the hanging load landed safely.



3. Parameter:



Model

Capacity t Lifting height m Motor power ps Lifting speed with load
m/min
Lowering speed with load
m/min
Working pressure
M Pa
Air consumption M3/min Load Chain
Spec.
Load Chain Weight kg/m No. of chain falls H mm L
mm
A mm   I-beam Weight kg
QDT 01 0.08 3 0.8 18 20 ≥ 0.55 1 5*15 0.46 1 320 285 122   10-18 16
QDT 02 0.125 16 18 1   18
QDT 03 0.25 14 16 2 395   20
QDT 04 0.5 1 9 10 1.2 295   16-22 22
QDT 05 1 1.2 5 6 1.5 6*18 0.79 460 350 158   36
QDT 06 1.5 1.5 4.5 5 1.8 7*12 1.07 495 365 170   18-28 42
QDT 07 2 4   45
QDT 08 3 1.2 3 3.2 1.5 8*24 1.38 550 380 150   53
QDT 09 5 1.4 1.6 10*28 2.2 840 415 180   28-36 57
QDT 10 6 1.2 1.3 880 420 195   66
QDT 11 8 3.6 1.1 1.2 4 12*36 3.1 1000 530 220   178
QDT 12 10 1 1.1 4.2 14*42 4.13 1050 570 235   193
QDT 13 12.5 0.9 1 1110 590 245   198
QDT 14 15 0.8 0.9 18*54 6.85 1480 300   36-50 390
QDT 15 20 830   420
QDT 16 25 0.7 0.8 14*42 4.13 4 1280 740 245   426
QDT 17 30 22*66 10.2 1660 990 370   839
QDT 18 40 0.5 0.6 18*54 6.85 765 325   50-63 560
QDT 19 50 0.4 0.5 22*66 10.2 1890 1185 415   1390
QDT 20 60 0.35 0.45 1980 1190 420   1480
QDT 21 80 5.8 0.28 0.32 7.5 26*78 14.87 2610 1350 445   2150
QDT 22 100 0.25 0.3 30*90 19.6 3400 1540 480   2970
QDT 23 120 0.2 0.25 32*96 22.29 4450 1700 510   3540
QDT 24 160 36*108 31 5800 1890 560   4590
