Product Details:
Payment & Shipping Terms:
|
| Capacity: | 1000-10000kg | Weight: | 460-10000Kg |
|---|---|---|---|
| Color: | Lemon Yellow | Lifting Height: | Alternative |
| Power Source: | Electric | Lifting Speed: | Alternative |
| High Light: | electric davit winch,electric pulling winch |
||

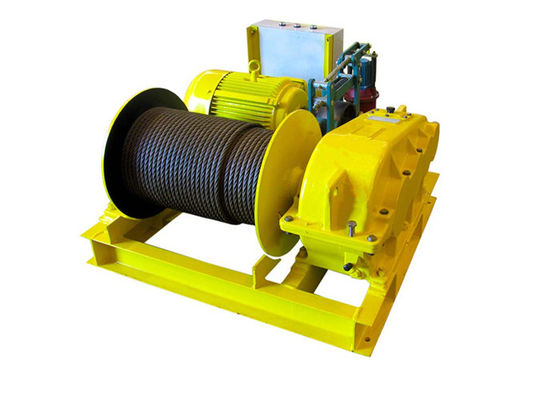

JK Electric Winch
| JK Electric Winch | ||||||
| Model | JK1 | JK3 | JK5 | JK8 | JK10 | |
| Line pull capacity (kg) | 1000 | 3000 | 5000 | 8000 | 10000 | |
| Wire rope average speed (m/min) | 30 | 30 | 28 | 20 | 19 | |
| Wire rope Dia.( mm): | 9.3 | 15.5 | 21.5 | 26 | 30 | |
| Reduction box | Type | JZQ350 | JZQ500 | JZQ650 | JZQ650 | JZQ750 |
| Transmission ratio | 31.5 | 23.34 | 40.17 | 23.34 | 23.34 | |
| Drum (mm) | Diameter(mm) | 190 | 325 | 406 | 500 | 550 |
| Length | 360 | 520 | 840 | 900 | 1000 | |
| Capacity(m) | 110 | 200 | 300 | 300 | 450 | |
| motor | Type | Y132M-4 | YZR225M-8 | YZR250M1-8 | YZR250M1-6 | YZR250M2-6 |
| Power(kW) | 7.5 | 22 | 30 | 37 | 45 | |
| Rotating speed(r/min) | 1440 | 715 | 864 | 960 | 960 | |
| Hydraulic Brake | YWZ-200/25 | YWZ-200/25 | YWZ-300/45 | YWZ-300/45 | YWZ-400 | |
| Dimension (cm) | 945x97x60 | 147x140x95 | 186x166x95 | 240x180x110 | 250x190x120 | |
| Weight(kg) | 460 | 1200 | 2700 | 4000 | 5000 | |
