Product: | THP Lifting Clamps | Model: | THP Horizontal Clamp |
---|---|---|---|
Type: | European Model THP Clamp | Adaptation: | Suitable For Concrete Pipes |
Capacity: | 1,500KG - 16,000kg | Weight: | 2.2kg - 11kg |
High Light: | horizontal lifting clamp,steel lifting clamps |
1. Product Profile:
THP Lifting Clamps, European Model Lifting Clamps
Suitable for Lifting and Concrete Pipes
2. Features and advantages:
2.1. European model lifting clamp.
2.2. Horizontal lifting clamp.
2.3. Capacity: 1t to 16t.
2.4. Suitable for horizontal lifting of steel and concrete pipes.
2.5. The working load capacity belongs to one pair. Use by one pair, two pairs or more.
2.6. Connection shackle is available on Extra cost.
2.7. High quality and wide adaptation.
2.8. Excellent performance.
2.9. 1 year warranty
2.10. Sample, OEM or ODM order is ok.
3. Parameter:
Model | Capacity(kg) | Opening Size | Dimension(mm) | N.W.(kg) | Shackle | |||||
R=mm | A | B | C | D | E | F | G2130 | |||
SYTHP1.5 | 1,500 | 40 | 120 | 32 | 195 | 75 | 36 | 25 | 2.2 | 7/8''(6.5T) |
SYTHP3 | 3,000 | 40 | 120 | 32 | 195 | 75 | 40 | 25 | 2.5 | 1''(8.5T) |
SYTHP4 | 4,000 | 50 | 120 | 32 | 205 | 75 | 40 | 29 | 3 | 1''(8.5T) |
SYTHP6 | 6,000 | 50 | 120 | 3 | 205 | 75 | 44 | 29 | 3.3 | 1-1/8''(9.5T) |
SYTHP8 | 8,000 | 70 | 120 | 32 | 255 | 75 | 44 | 29 | 4.5 | 1-1/8''(9.5T) |
SYTHP16 | 16,000 | 70 | 145 | 32 | 300 | 75 | 52 | 40 | 11 | 1-1/2''(17T) |

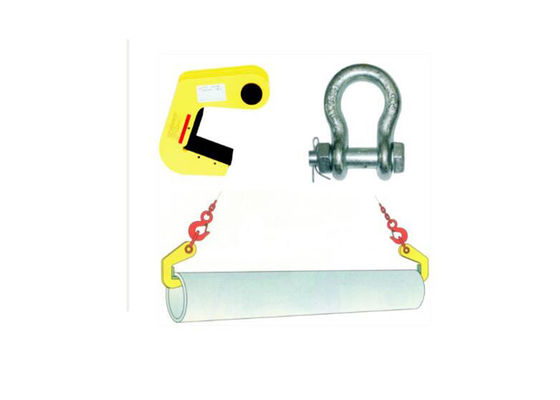

4. Photo for Reference:
