| Standard: | International Standard | Set: | Complete |
|---|---|---|---|
| Attention: | Put The Hook Into The Chain Before Using. | Usage: | Can Be Used As Three Of Four Bundles |
| WLL: | WLL Will Be Reduced By 20%. | MOQ: | 400 Pieces |
| High Light: | horizontal lifting clamp,horizontal plate clamp |
||
1. Product Profile:

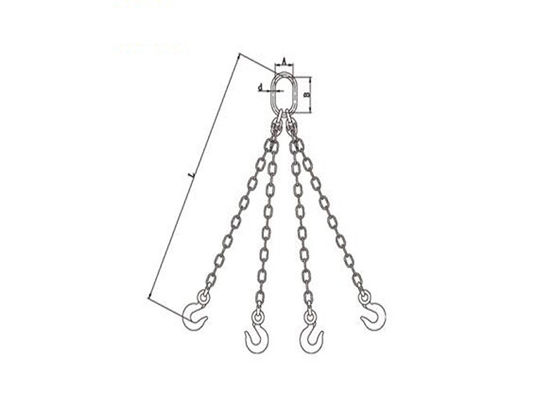

Three or Four Legs complete sets of Chain Slings
2. Features and Advantages:
2.1.Standard: GB/T 20652-2006
2.2. Can be used as single bundle or double bundles.
2.3. Put the hook into the chain when using it
2.4. WLL/T will be reduced by 20=% during using period
2.5. Safety factor: 4:1
2.6. High quality and wide adaptation.
2.7. Excellent performance and safety.
2.8. 1 year warranty
3. Parameter:
| Model | Chain Dia.(mm) | WLL(t) | Main Link(mm) | Chain Weight(kg/m) | |
| a≤45° | 45°＜a≤60° | A*B*d | |||
| SY-LSJ3-20 | 20 | 23.5 | 16.5 | 50*350*190 | 8.6 |
| SY-LSJ3-22 | 22 | 31.5 | 22.5 | 50*350*190 | 10.2 |
| SY-LSJ3-26 | 26 | 42 | 30 | 57*405*200 | 14 |
| SY-LSJ3-32 | 32 | 66 | 47 | 72*460*250 | 22.29 |
4. Company Message:
OEM & ODM orders are both ok. Welcomes sample order to test our quality and service.
5. Photo for Reference:
