Product Details:
Payment & Shipping Terms:
|
| Material: | High Strength Alloy Steel | Color: | Red |
|---|---|---|---|
| Max. Cap.: | 169 Ton (wire Rope Sling) | Min. Cap.: | 3.4 Ton |
| Application: | G80 Chain | Test Working Load Limite: | 2.5 Times |
| High Light: | horizontal plate clamp,steel lifting clamps |
||

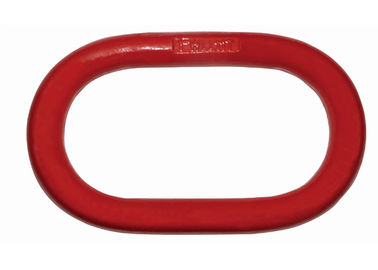

G80 U.S type Master Link

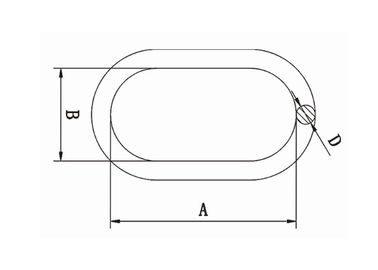

| Weight kg | G80 chain (inch) | WLL 1 leg ton | WLL 2 legs 0° - 45° | WLL (wire rope sling) ton | A mm | B mm | C mm |
| 0.36 | 1/4 | 1.5 | 2.12 | 3.4 | 127±6 | 63.5±5 | 13± |
| 5/16 | 2 | 2.8 | |||||
| 0.7 | 5/16 | 2 | 2.8 | 4 | 152±6 | 76±5 | 16±1 |
| 3/8 | 3.15 | - | |||||
| 0.93 | 3/8 | 3.15 | 4.25 | 5.6 | 140±6 | 70± | 19±1 |
| 1.5 | 3/8 | 3.15 | 4.25 | 6.9 | 160±6 | 90±5 | 22±1 |
| 1/2 | 5.3 | - | |||||
| 2.1 | 1/2 | 5.3 | 7.5 | 11.8 | 178±6 | 89±5 | 25±1 |
| 5/8 | 8 | 11.2 | |||||
| 4.24 | 5/8 | 8 | 11.2 | 17.7 | 222±7 | 111±6 | 32+1/-2 |
| 3/4 | 11.2 | 16 | |||||
| 7.17 | 3/4 | 11.2 | 16 | 27.7 | 267±7 | 135±6 | 38+1/-2 |
| 7/8 | 15 | 21.2 | |||||
| 11.55 | 7/8 | 15 | 21.2 | 38.5 | 305±10 | 152±6 | 45+1/-2 |
| 1 | 21.2 | - | |||||
| 17.2 | 1 | 21.2 | 30 | 46.5 | 305±10 | 178±6 | 51+1/-2 |
| 1 1/4 | 31.5 | - | |||||
| 24.5 | 1 1/4 | 31.5 | 45 | 64.9 | 406±10 | 203±7 | 57+1/-2 |
| 30.9 | - | - | - | 72.6 | 406±10 | 203±7 | 63.5±3 |
| 39.5 | - | - | - | 98.4 | 406±10 | 241±7 | 70±3 |
| 50.34 | - | - | - | 103 | 457±15 | 228±7 | 76±3 |
| 65.68 | - | - | - | 119 | 508±15 | 254±7 | 82.5±3 |
| 90.24 | - | - | - | 126 | 610±15 | 305±10 | 89±3 |
| 89.27 | - | - | - | 152 | 508±15 | 254±7 | 95±3 |
| 103.43 | - | - | - | 169 | 508±15 | 254±7 | 102±3 |
